Driver Seat Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

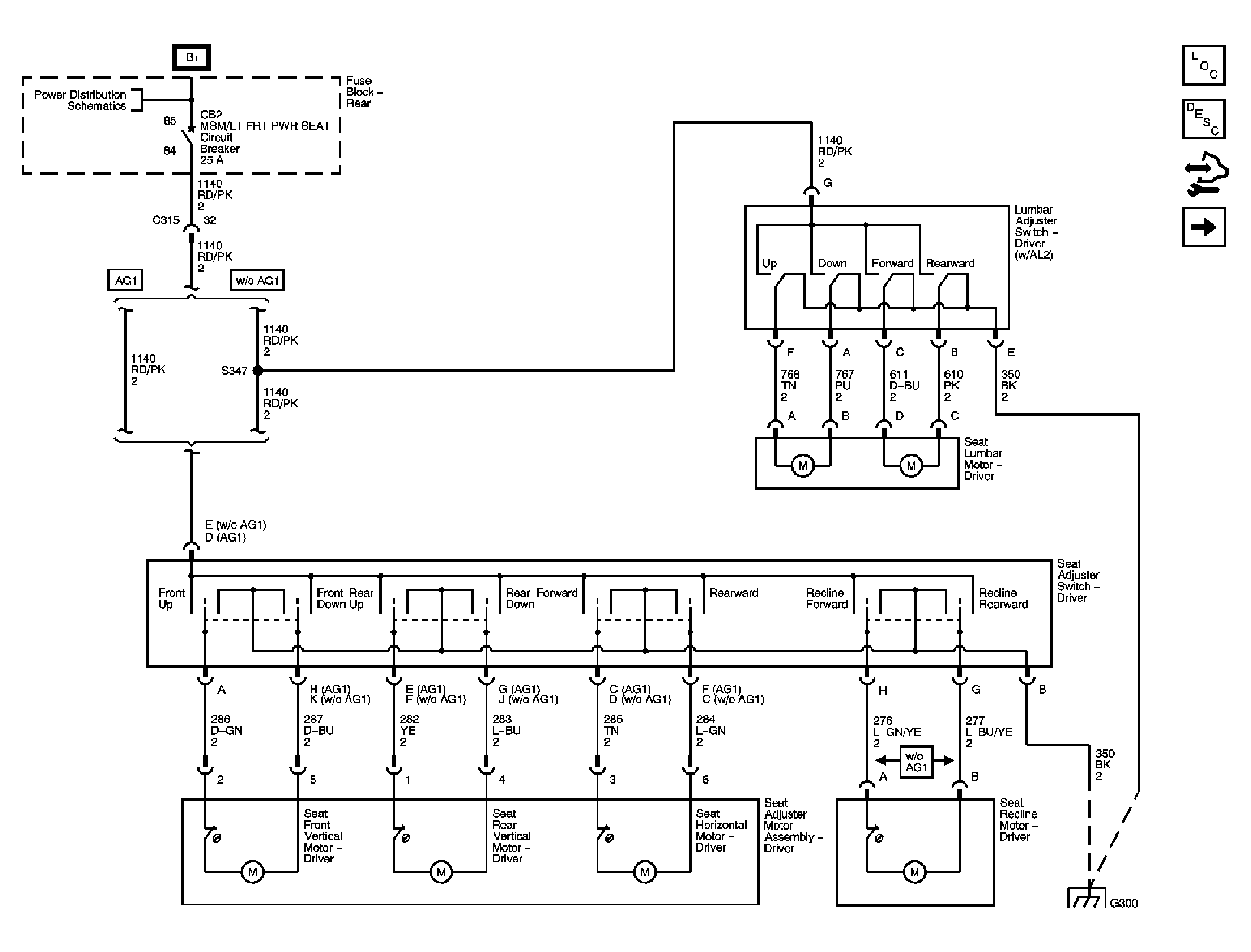

Fig 1: Driver Seat Schematic w/o A45
GM1759386Courtesy of GENERAL MOTORS CORP.

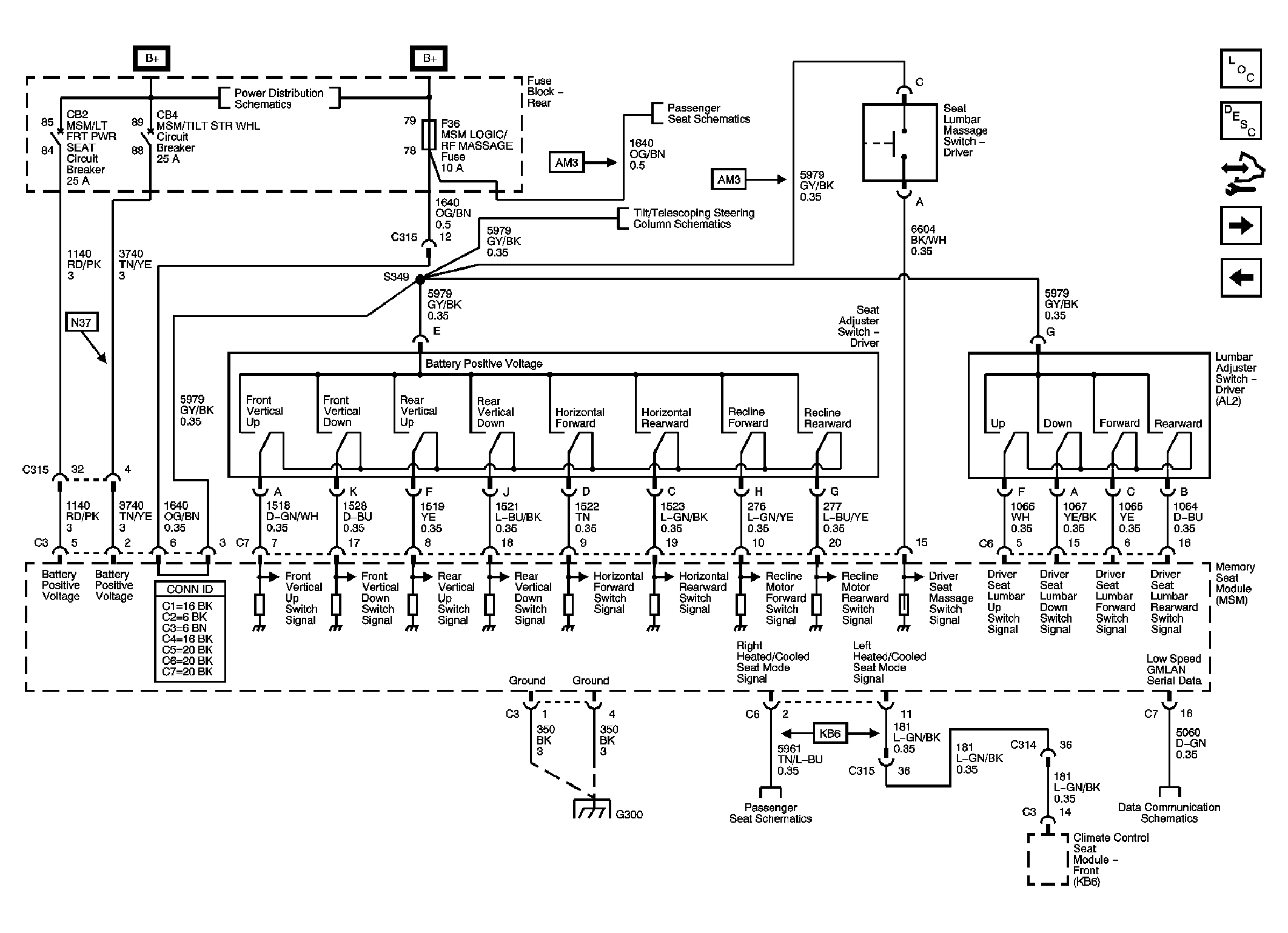

Fig 2: Driver Seat Schematic w/A45
GM1759392Courtesy of GENERAL MOTORS CORP.

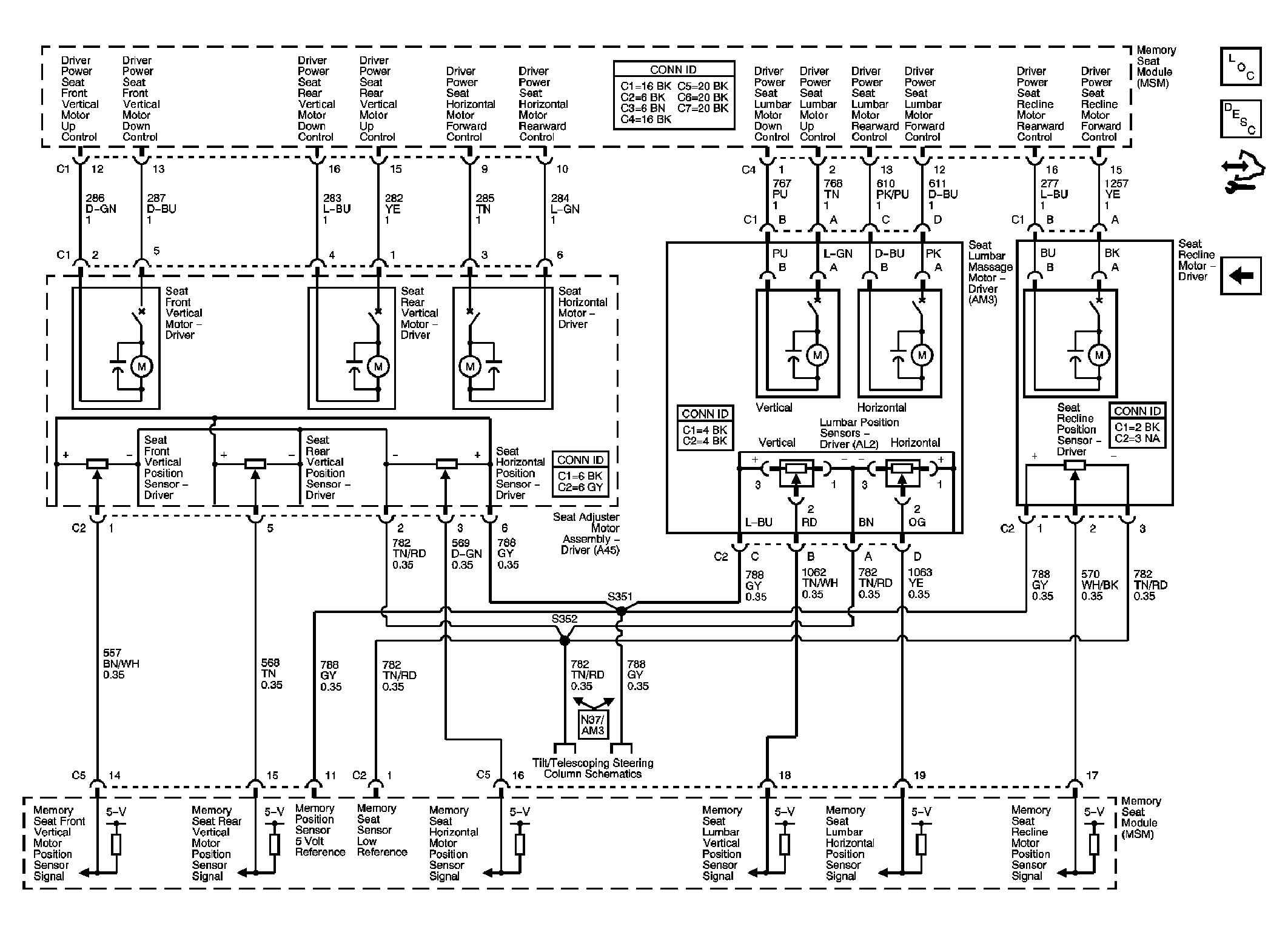

Fig 3: Position Sensors
GM1759395Courtesy of GENERAL MOTORS CORP.
