Seat Cushion Outer Trim Panel Replacement - Front Seat

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

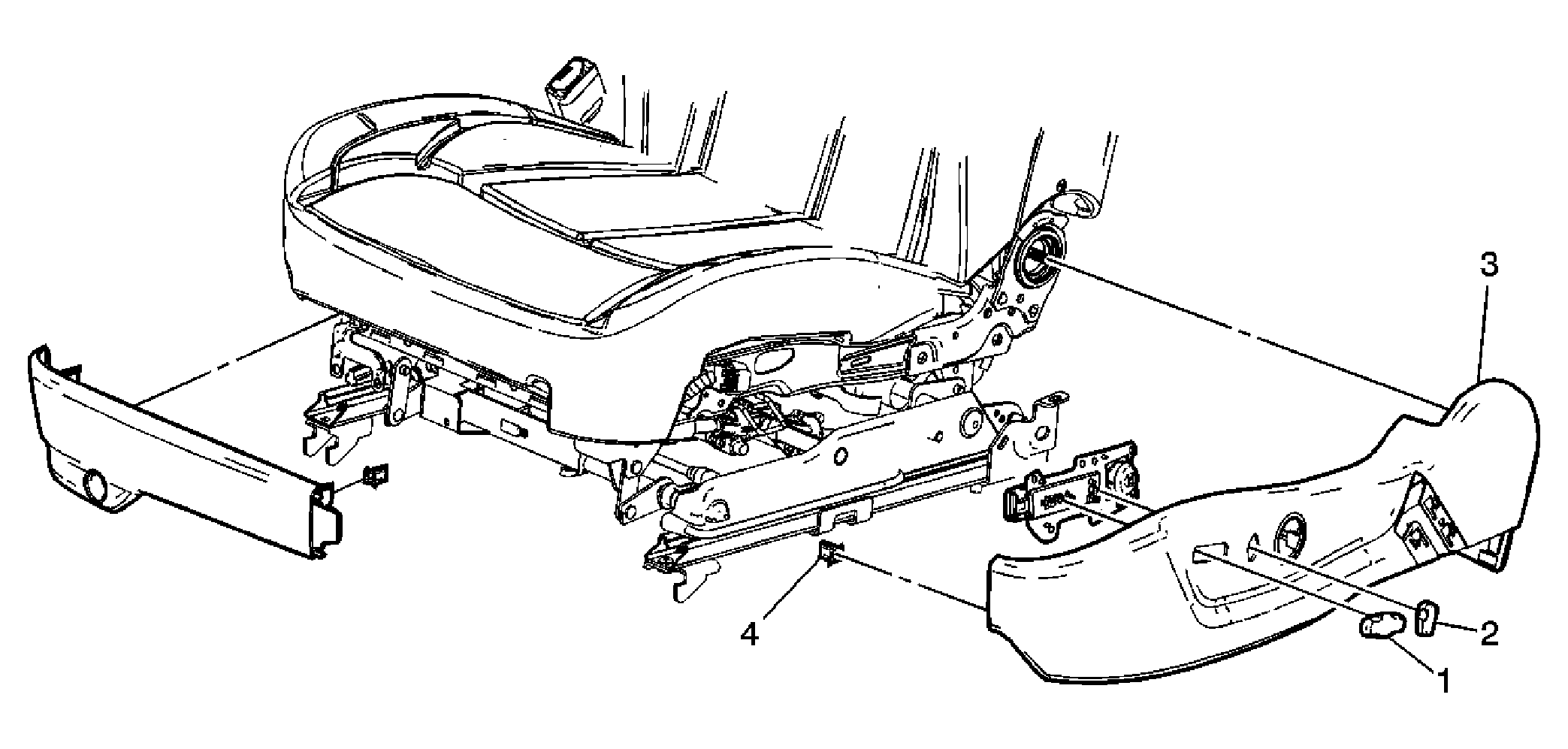

Fig 1: Seat Cushion Outer Trim Panel Replacement - Front Seat
GM1576038Courtesy of GENERAL MOTORS CORP.
Seat Cushion Outer Trim Panel Replacement - Front Seat

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Knob, Front Seat Adjuster
Tip:  Pull outward to remove.
2 Knob, Front Seat Recliner
Tip:  Pull outward to remove.
3 Cover, Seat Cushion Side Outer
Tip:
  1. Remove the trim cover over the seat belt access and slide the seat belt out of the cover assembly.
  2. Pull outward to disengage from the seat assembly and disconnect the seat switch electrical connector.
4 Retainer, Seat Cushion Side Outer Cover (Qty: 3)
