Rear Seat Cushion Frame Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

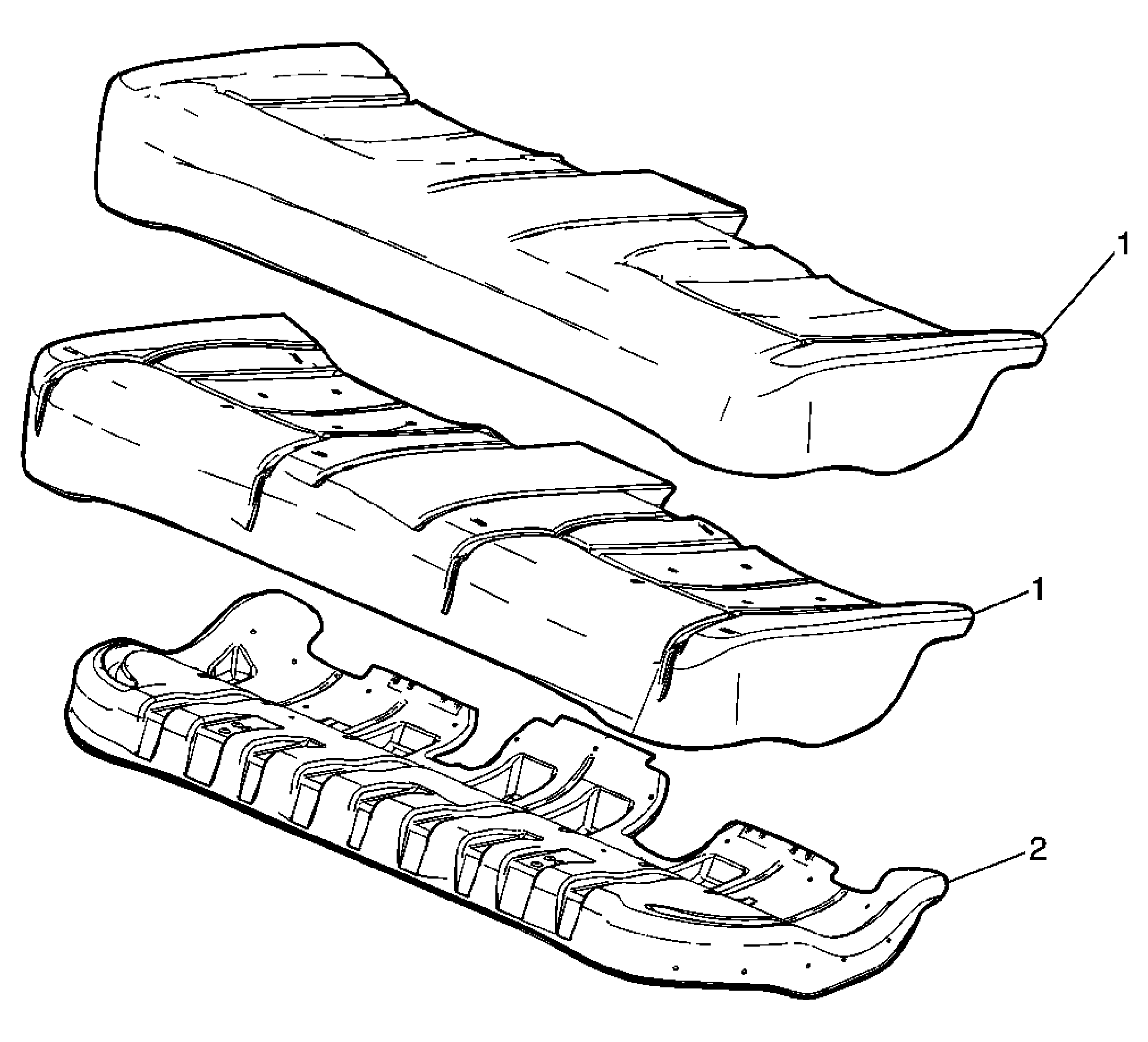

Fig 1: Seat Cushion Frame Replacement - Rear
GM1571700Courtesy of GENERAL MOTORS CORP.
Rear Seat Cushion Frame Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1 Pad, Rear Seat Cushion
Tip:  The rear seat cushion cover and pad is secured to the frame with staples, remove the cover and pad as an assembly.
2 Frame, Rear Seat Cushion
