Rear Seat Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

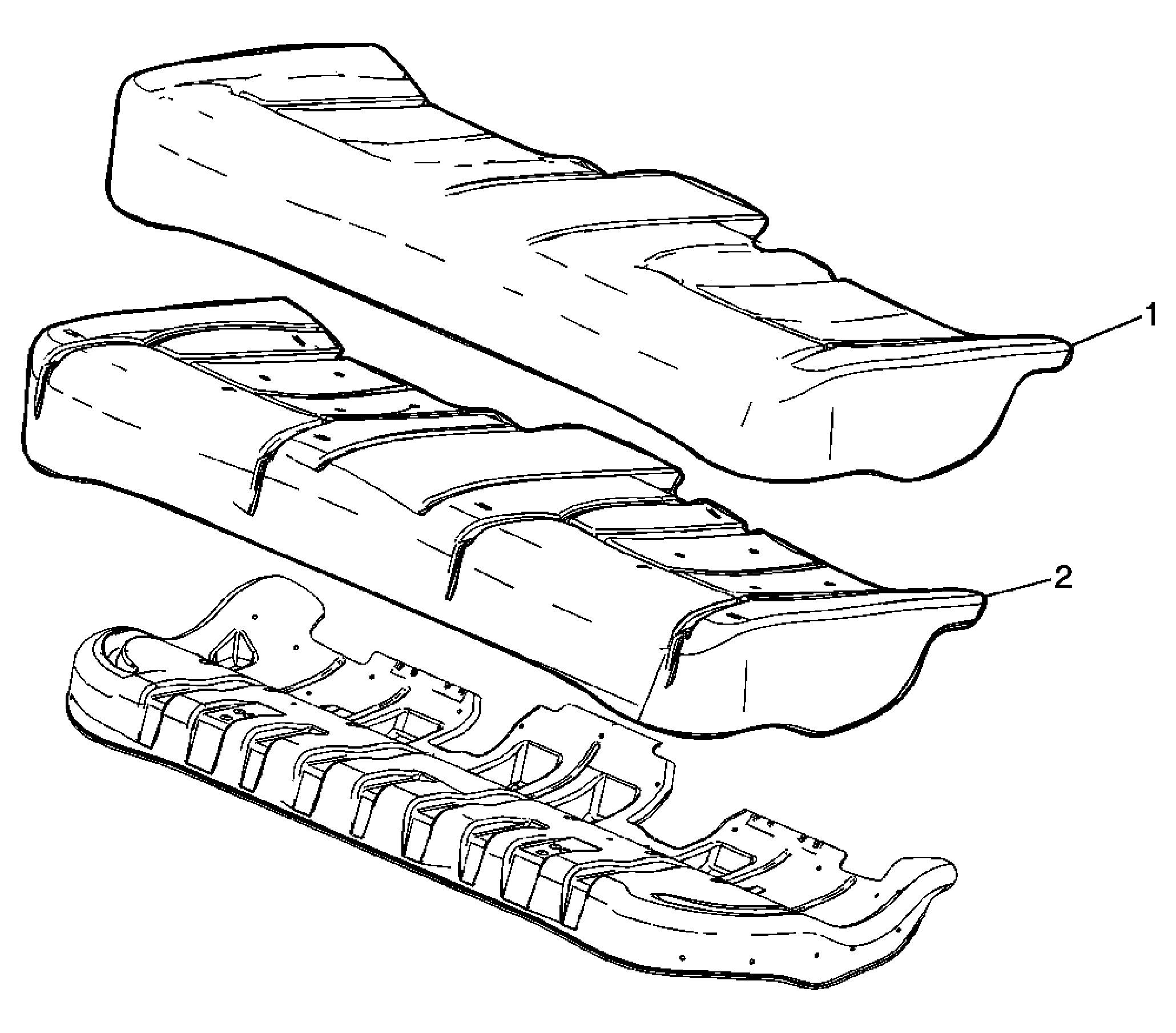

Fig 1: Seat Cushion Cover and Pad Replacement - Rear
GM1571699Courtesy of GENERAL MOTORS CORP.
Rear Seat Cushion Cover and Pad Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1 Cover, Rear Seat Cushion
Tip:
  1. Remove the staples that secure the seat cushion cover and pad to the seat cushion frame.
  2. The cover is secured to the pad with hook and loop fasteners.
2 Pad, Rear Seat Cushion
