Front Seat Trim Panel Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Front Seat Trim Panel Replacement

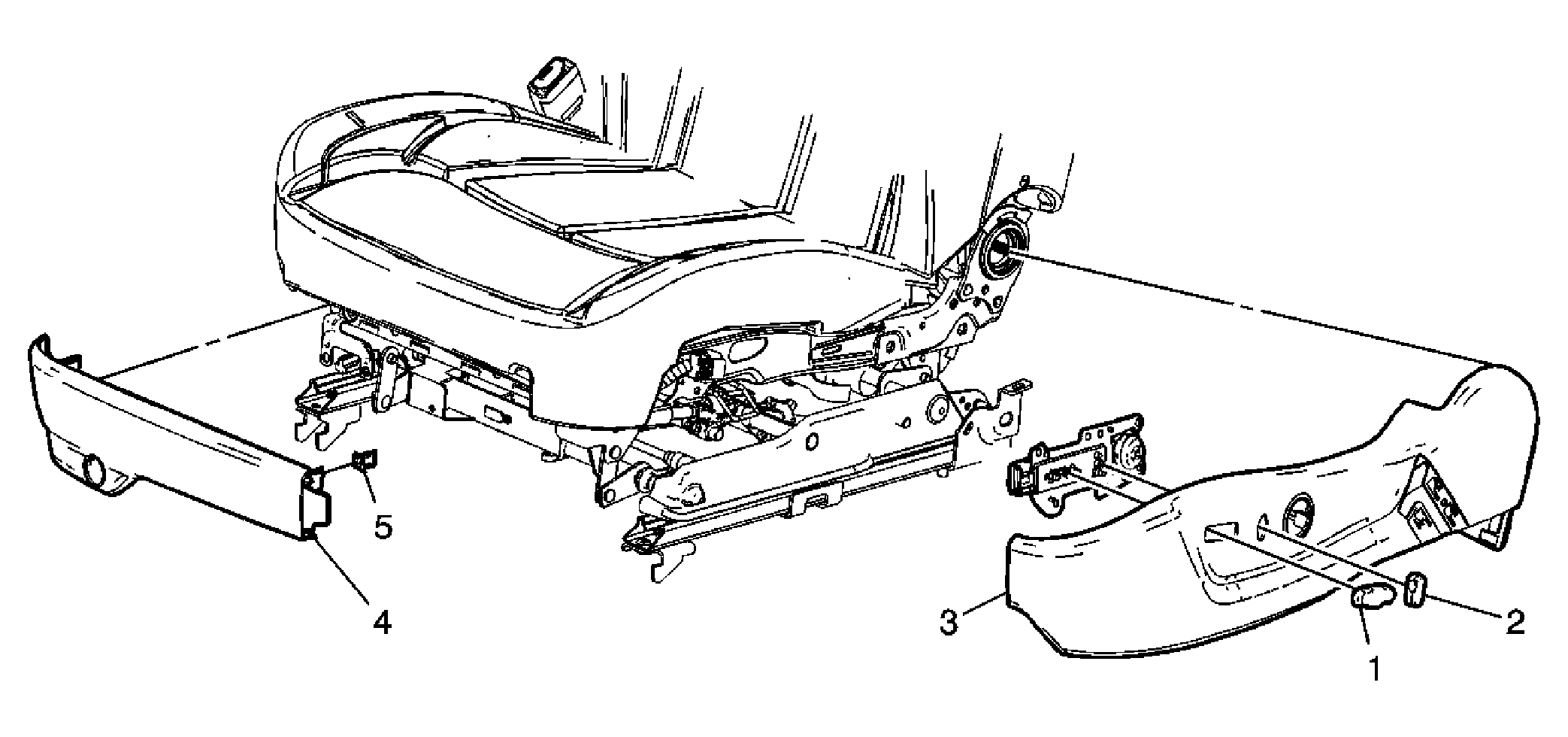

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Knob, Front Seat Adjuster Tip: Pull outward to remove. |
| 2 | Knob, Front Seat Recliner Tip: Pull outward to remove. |
| 3 | Cover, Seat Cushion Side Outer Trim Tip: Pull outward to disengage from the seat assembly and disconnect the seat switch electrical connector. |
| 4 | Cover, Seat Cushion Front Trim Tip: Pull outward to disengage from the seat assembly and disconnect the electrical connector. |
| 5 | Retainer Clip, Seat Cushion Front Trim Cover (Qty: 3) |
