Front Seat Back Trim Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

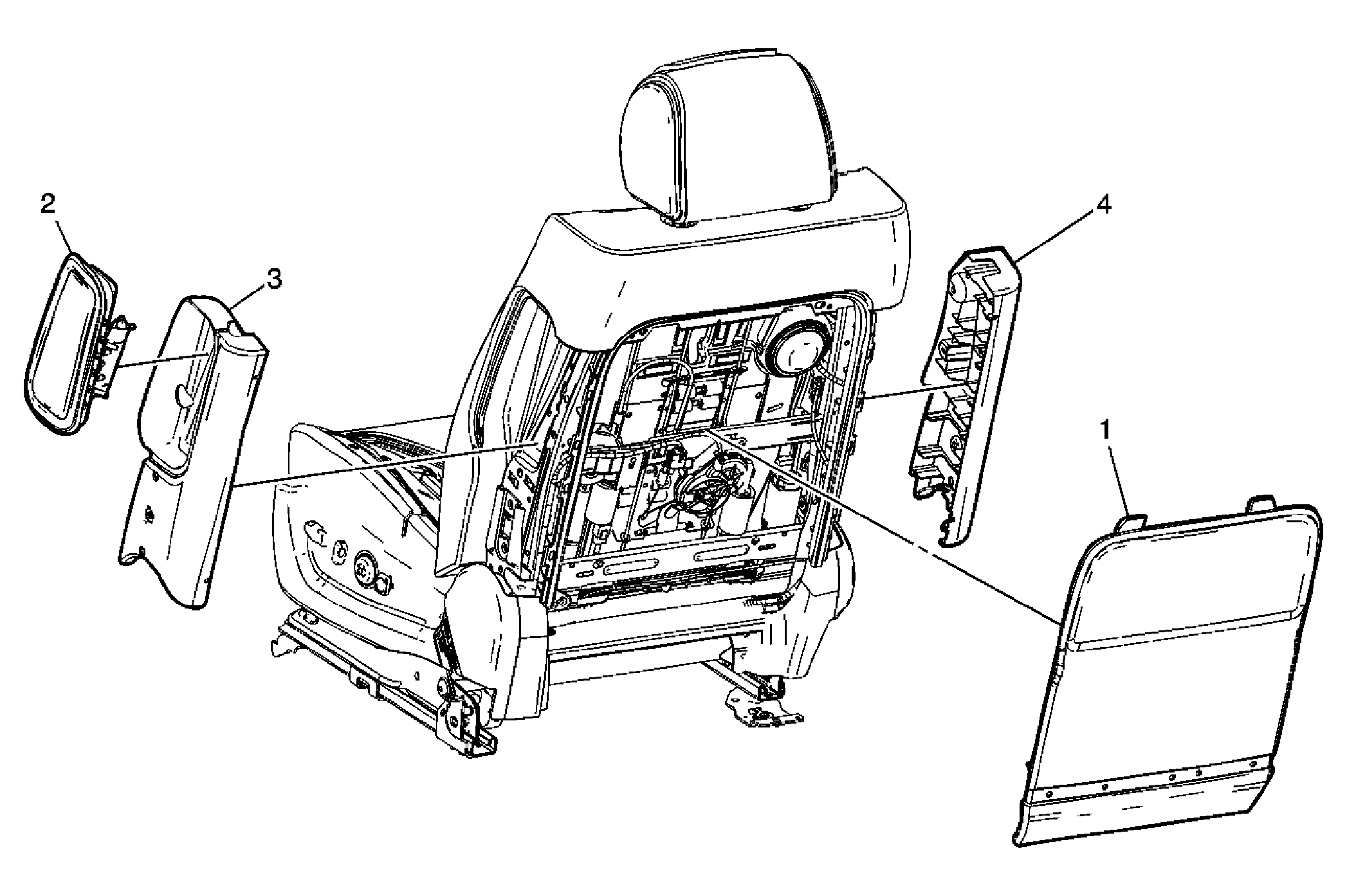

Fig 1: Seat Back Trim Replacement - Front
GM1572280Courtesy of GENERAL MOTORS CORP.
Front Seat Back Trim Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the seat back cushion cover and pad. Refer to Front Seat Back Cover and Cushion Pad Replacement .
1 Seat Back Cushion Finish Panel
Tip:  Use a J 38778  Door Trim Pad Clip Remover to aid in the removal of the 2 lower seat back retainers.
2 Inflatable Restraint Front Seat Side Module Assembly
Refer to Inflatable Restraint Side Impact Module Replacement - Front .
3 Seat Back Side Outer Cover
4 Seat Back Side Inner Cover
