Interior Lights Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

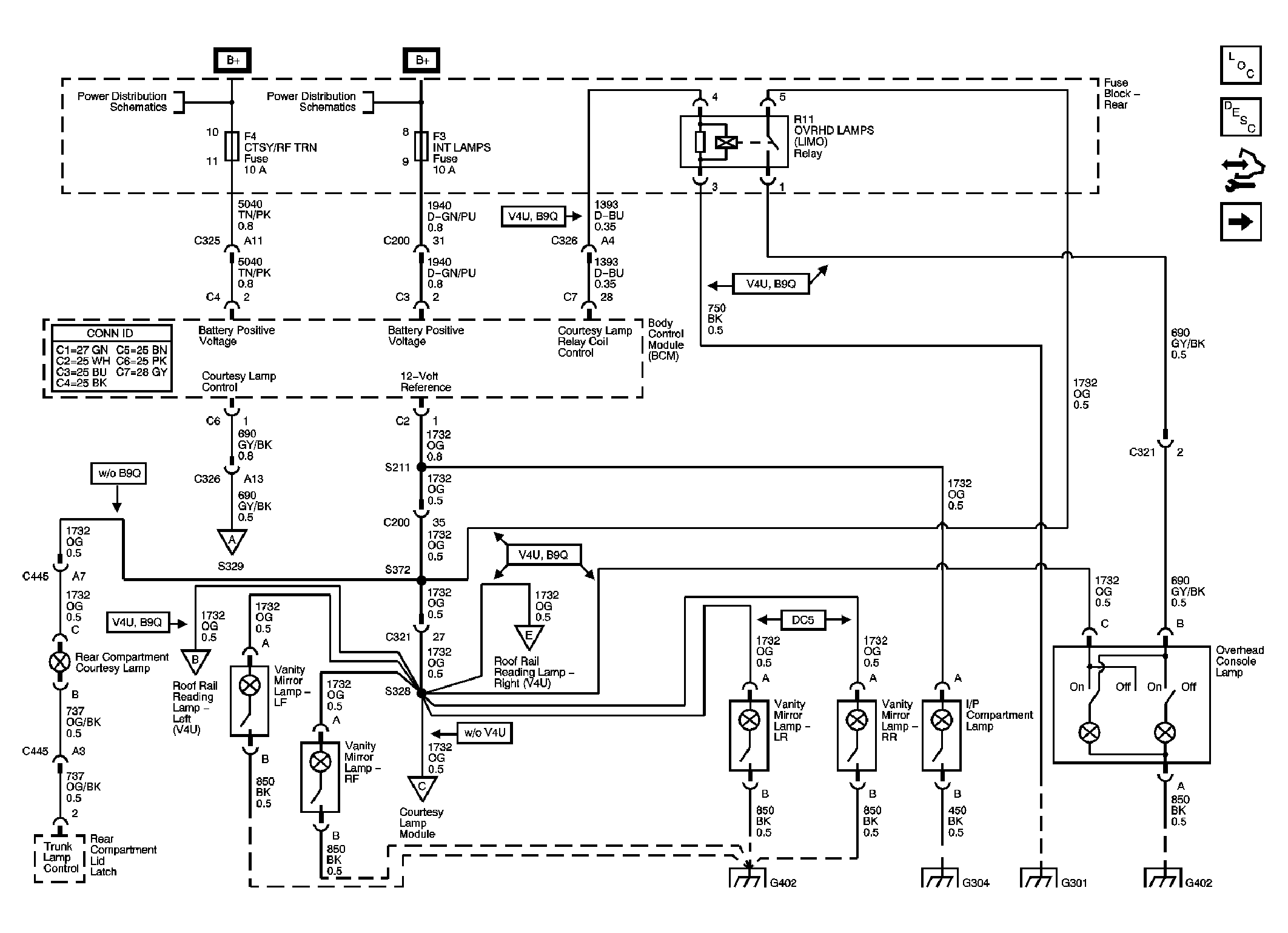

Fig 1: Vanity Mirror, Rear Compartment Courtesy, I/P Compartment, Overhead Console

Courtesy of GENERAL MOTORS CORP.

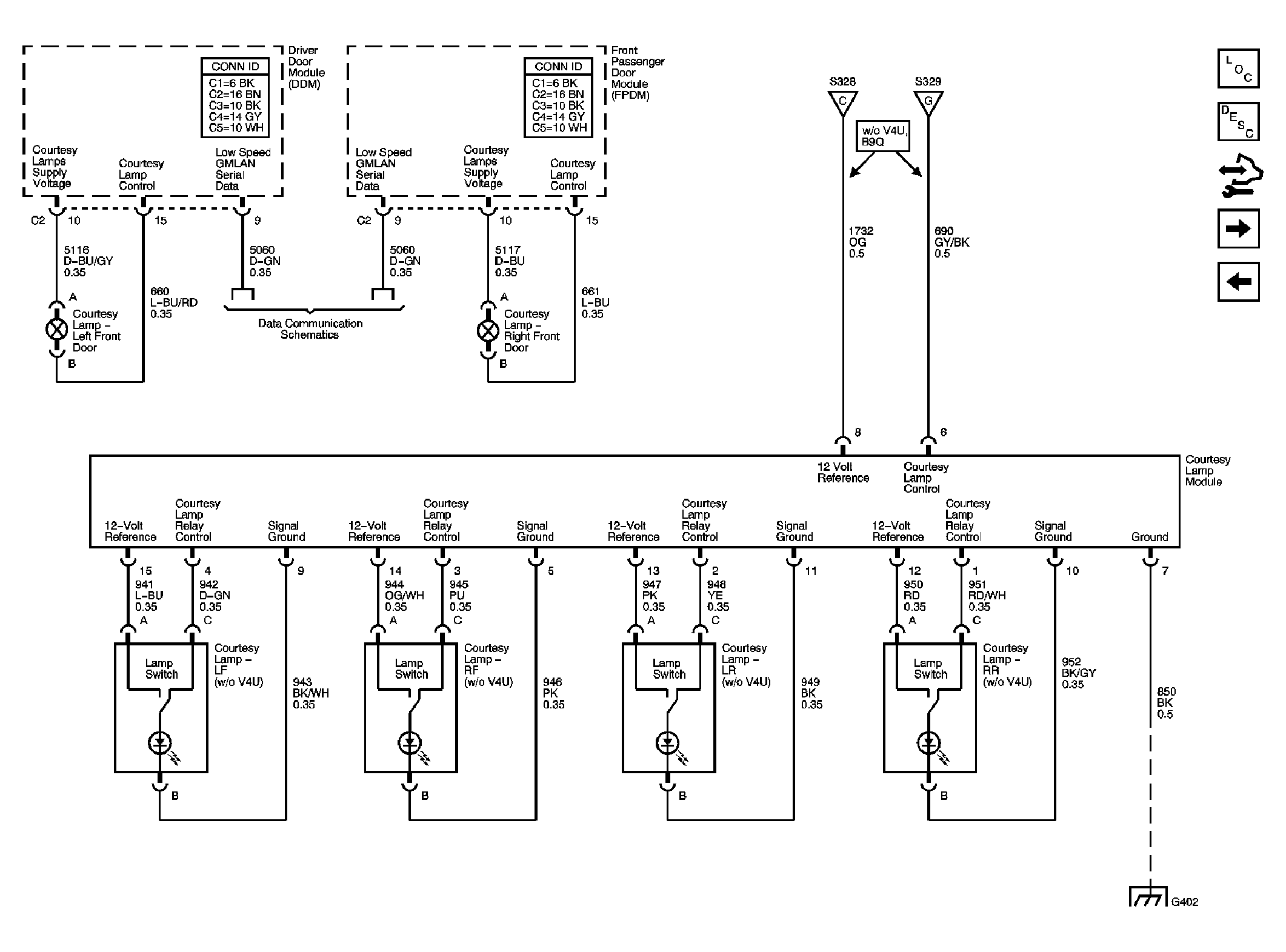

Fig 2: Interior Courtesy Lamps

Courtesy of GENERAL MOTORS CORP.

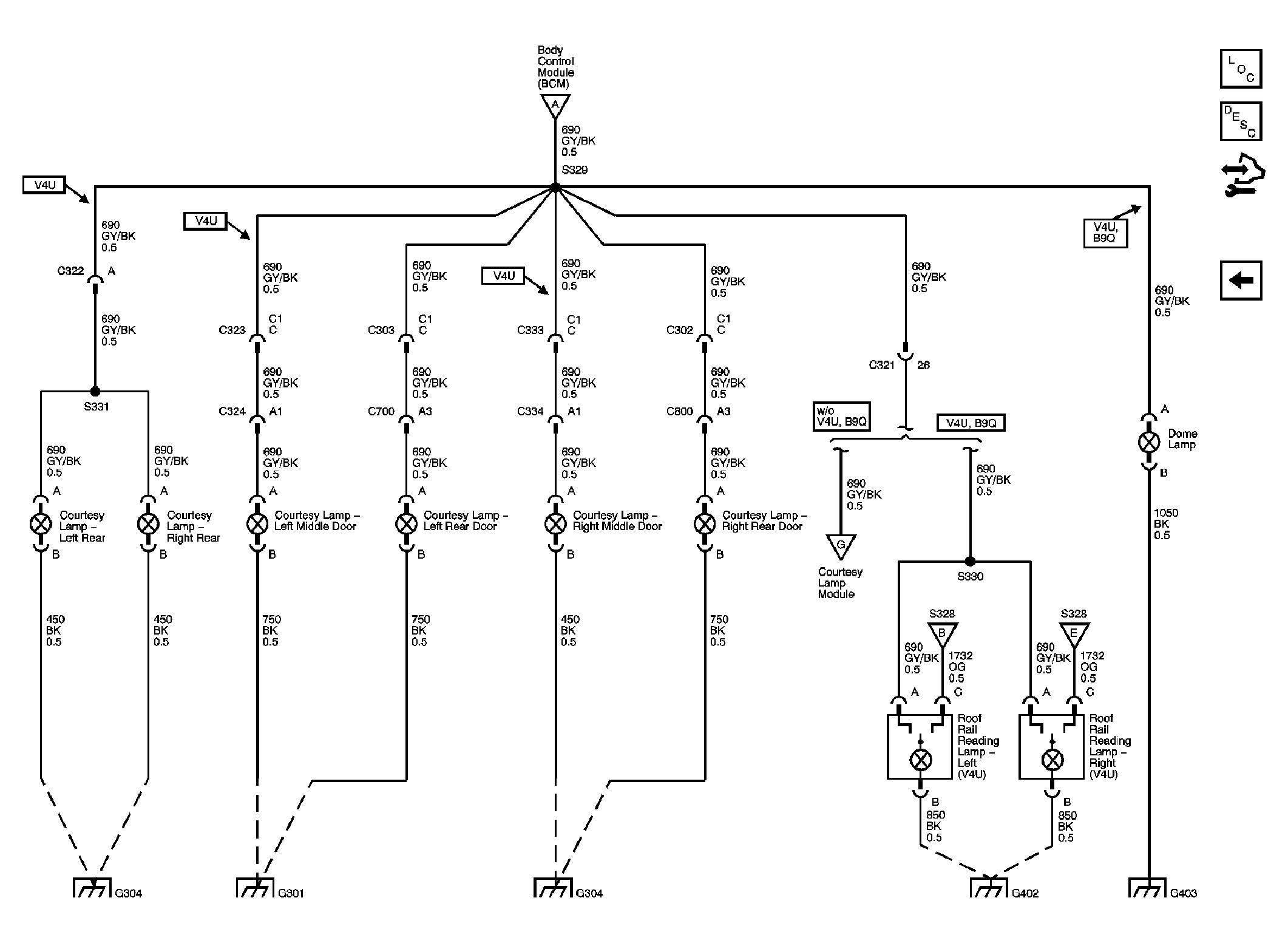

Fig 3: Roof Rail Reading, Dome Lamp Courtesy Lamps - V4U

Courtesy of GENERAL MOTORS CORP.
