Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

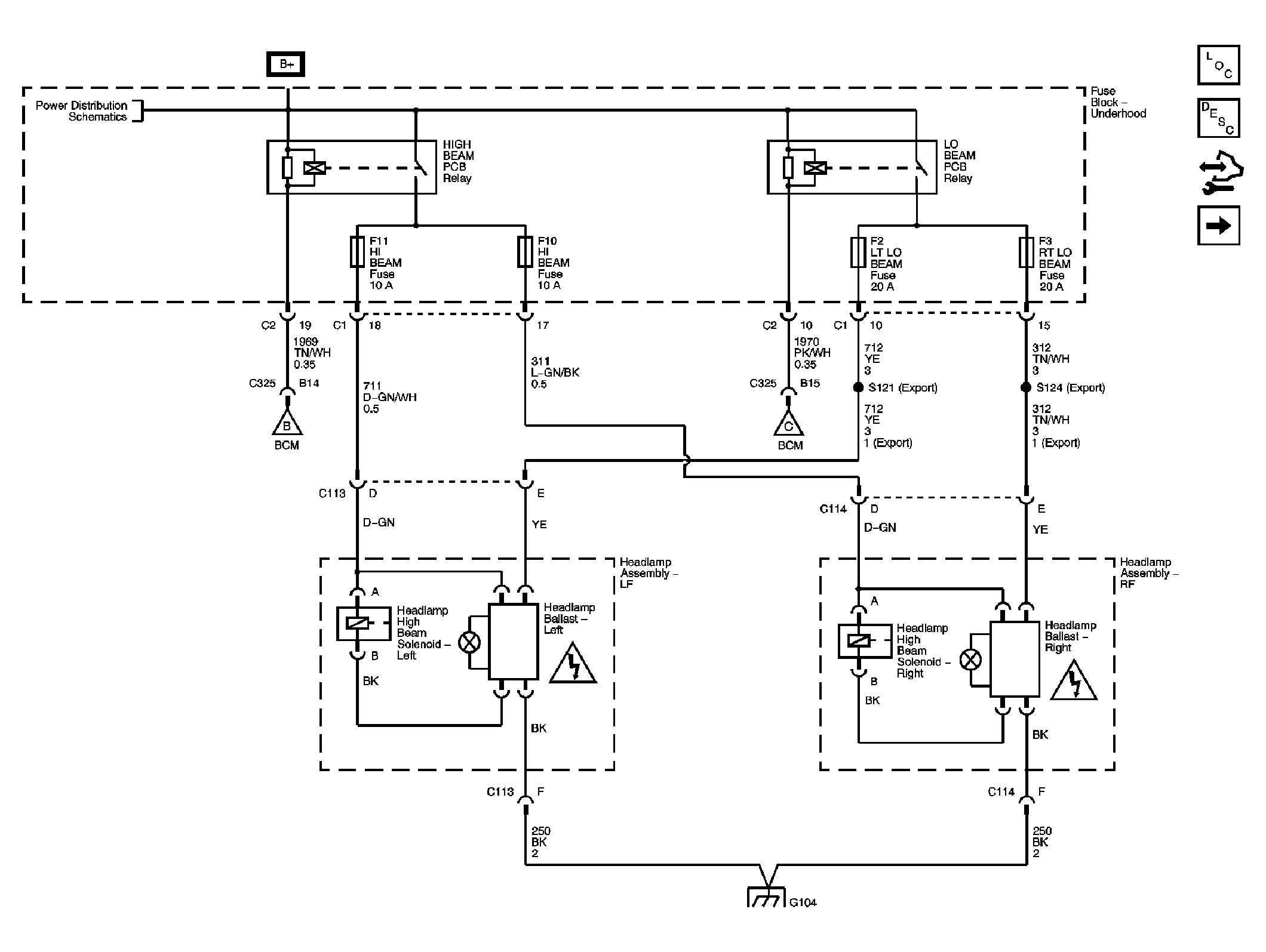

Fig 1: Headlamp Schematics
GM1759094

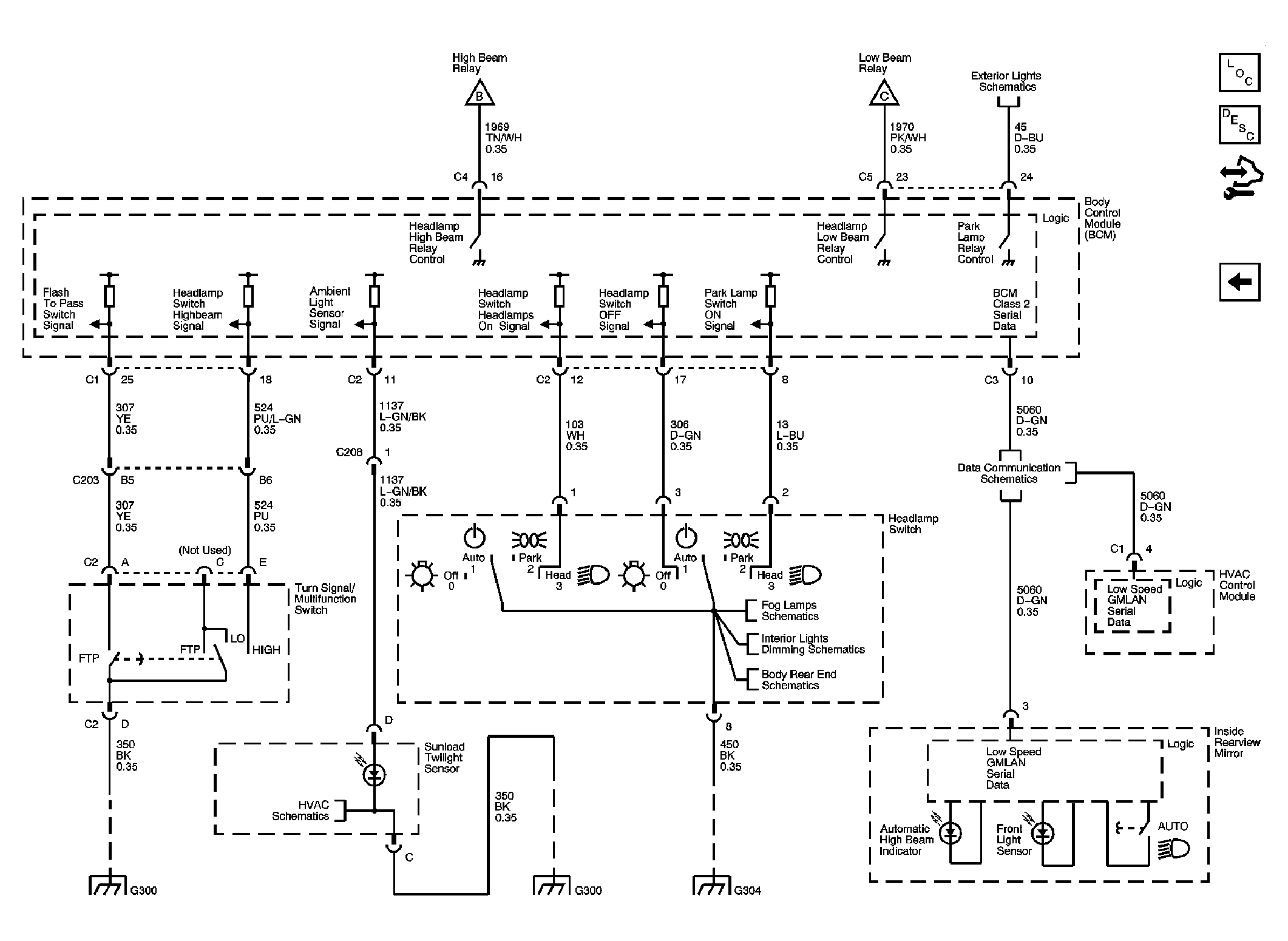

Fig 2: Headlamp Switch Schematics
GM1759098
