Exterior Lights Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

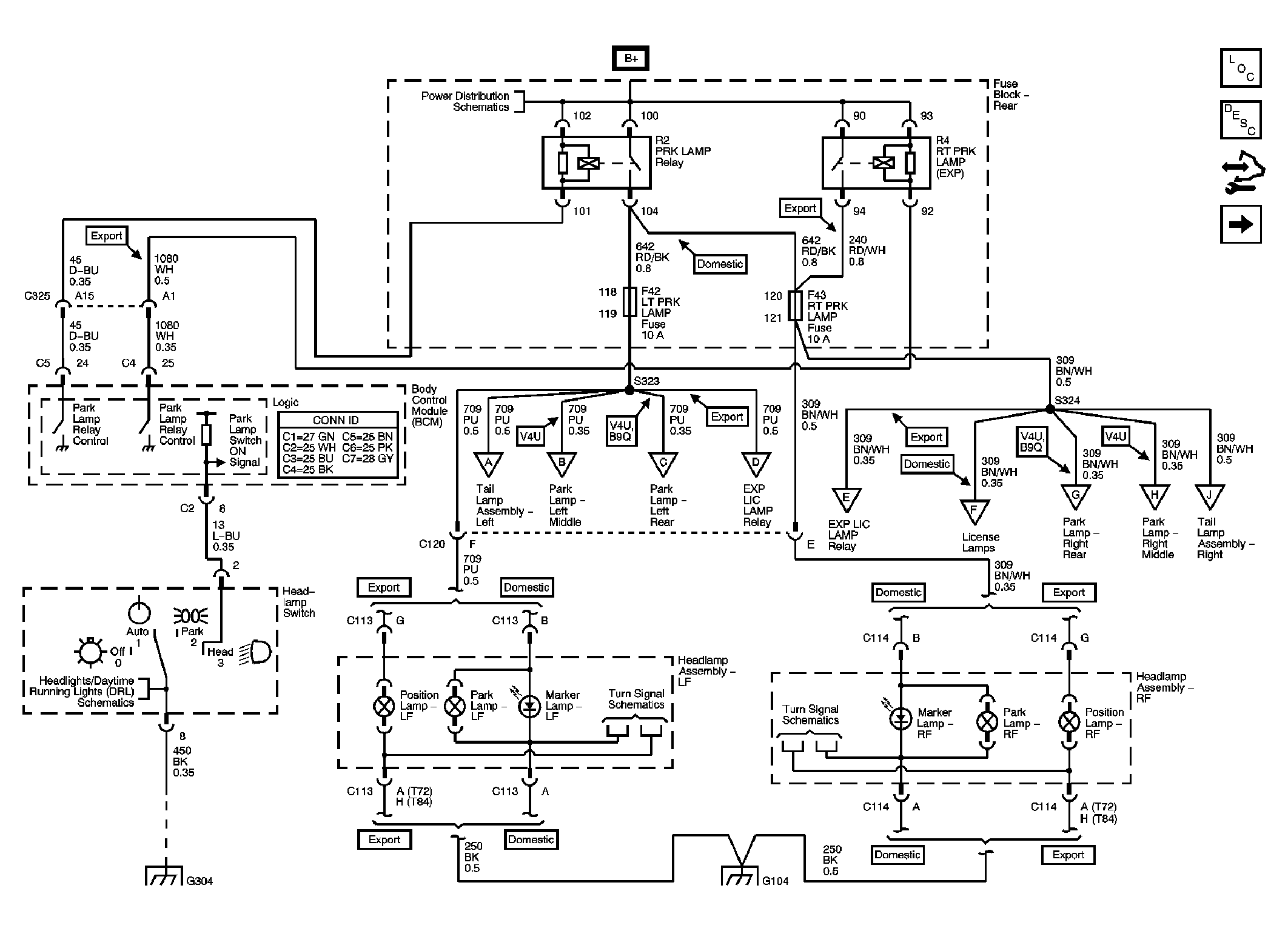

Fig 1: Front Park, Marker, Position Lamps

Courtesy of GENERAL MOTORS CORP.

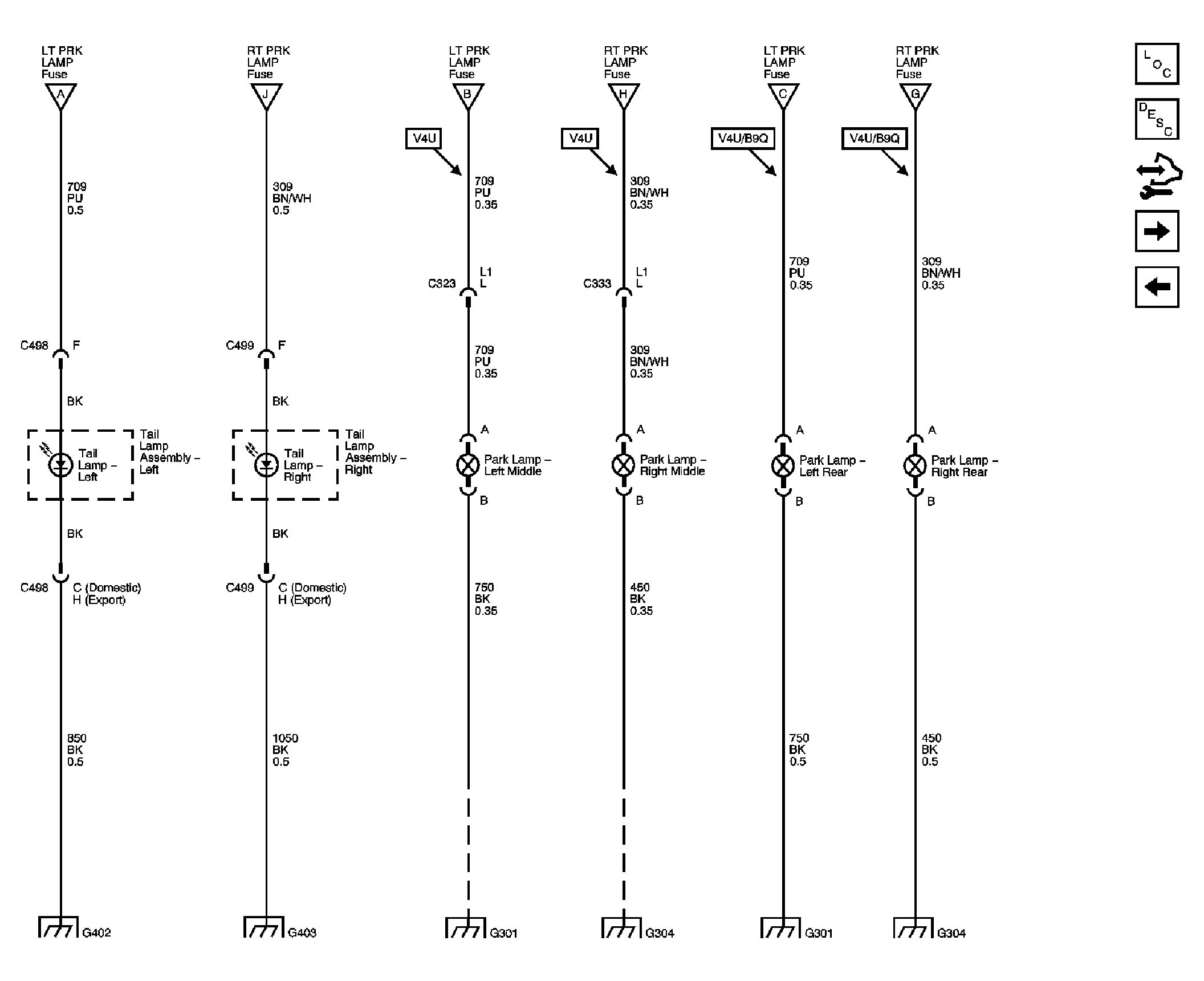

Fig 2: Rear Park and Tail Lamps

Courtesy of GENERAL MOTORS CORP.

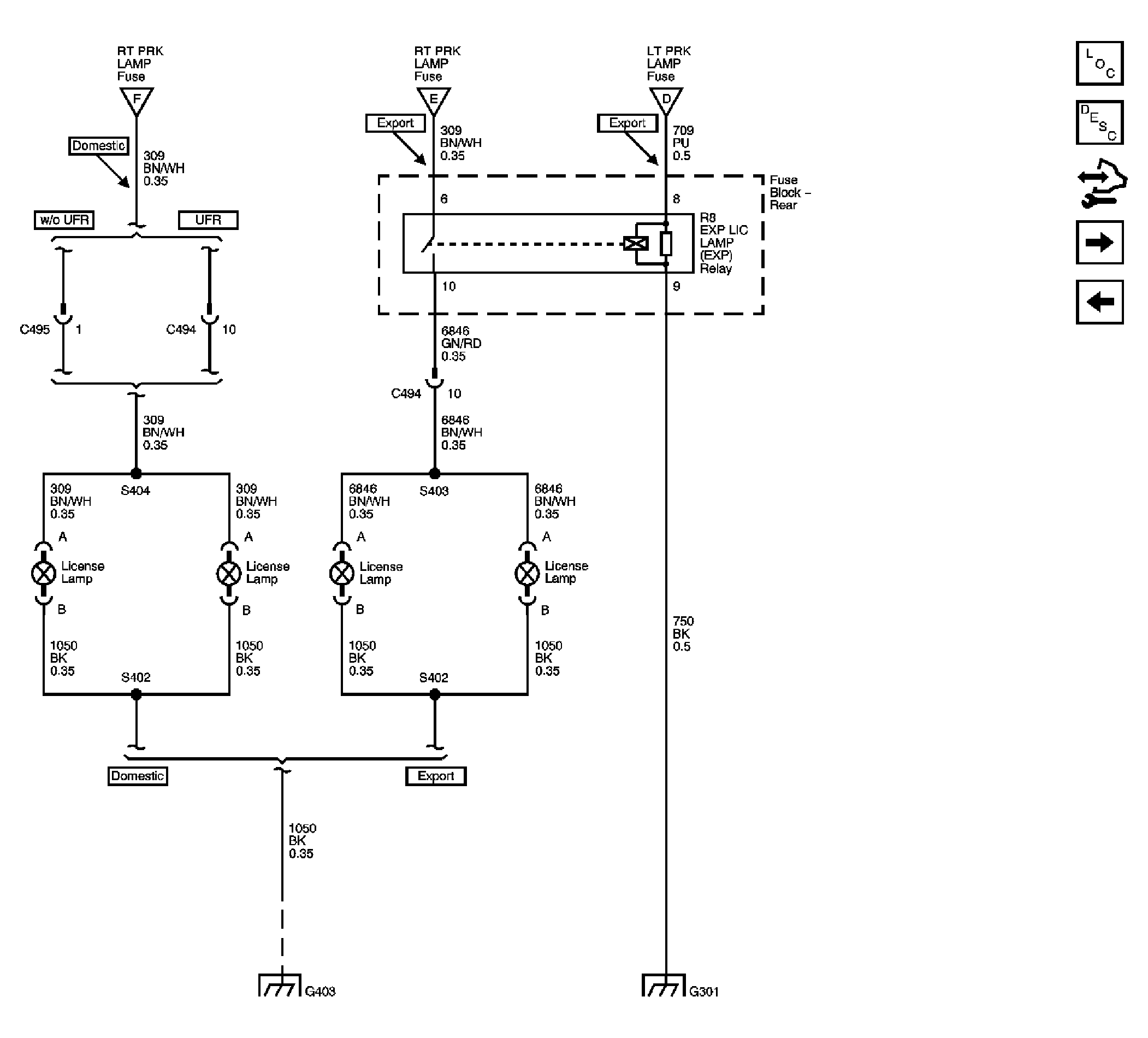

Fig 3: License Lamps

Courtesy of GENERAL MOTORS CORP.

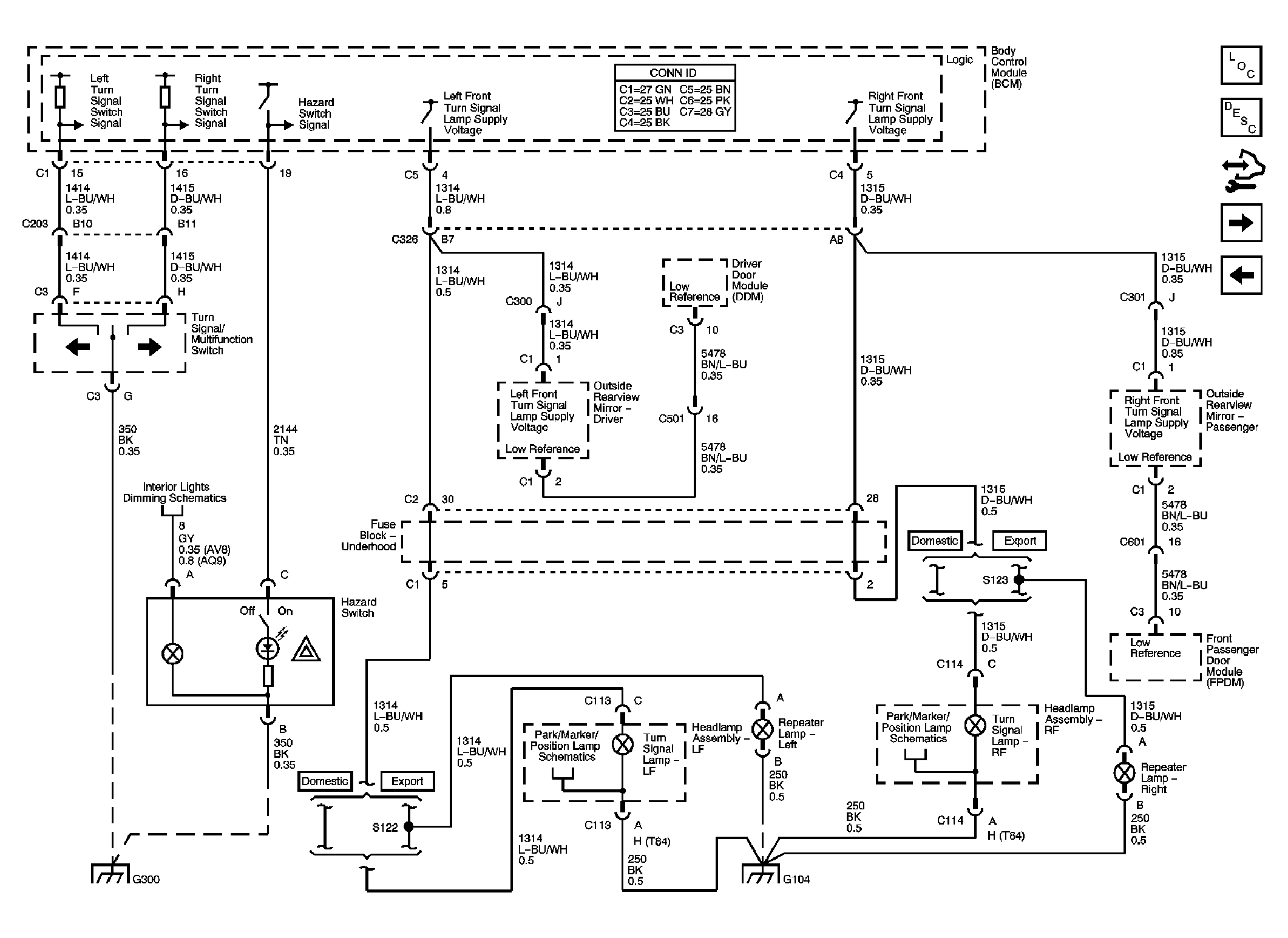

Fig 4: Front Turn Signal/Hazard Lamps

Courtesy of GENERAL MOTORS CORP.

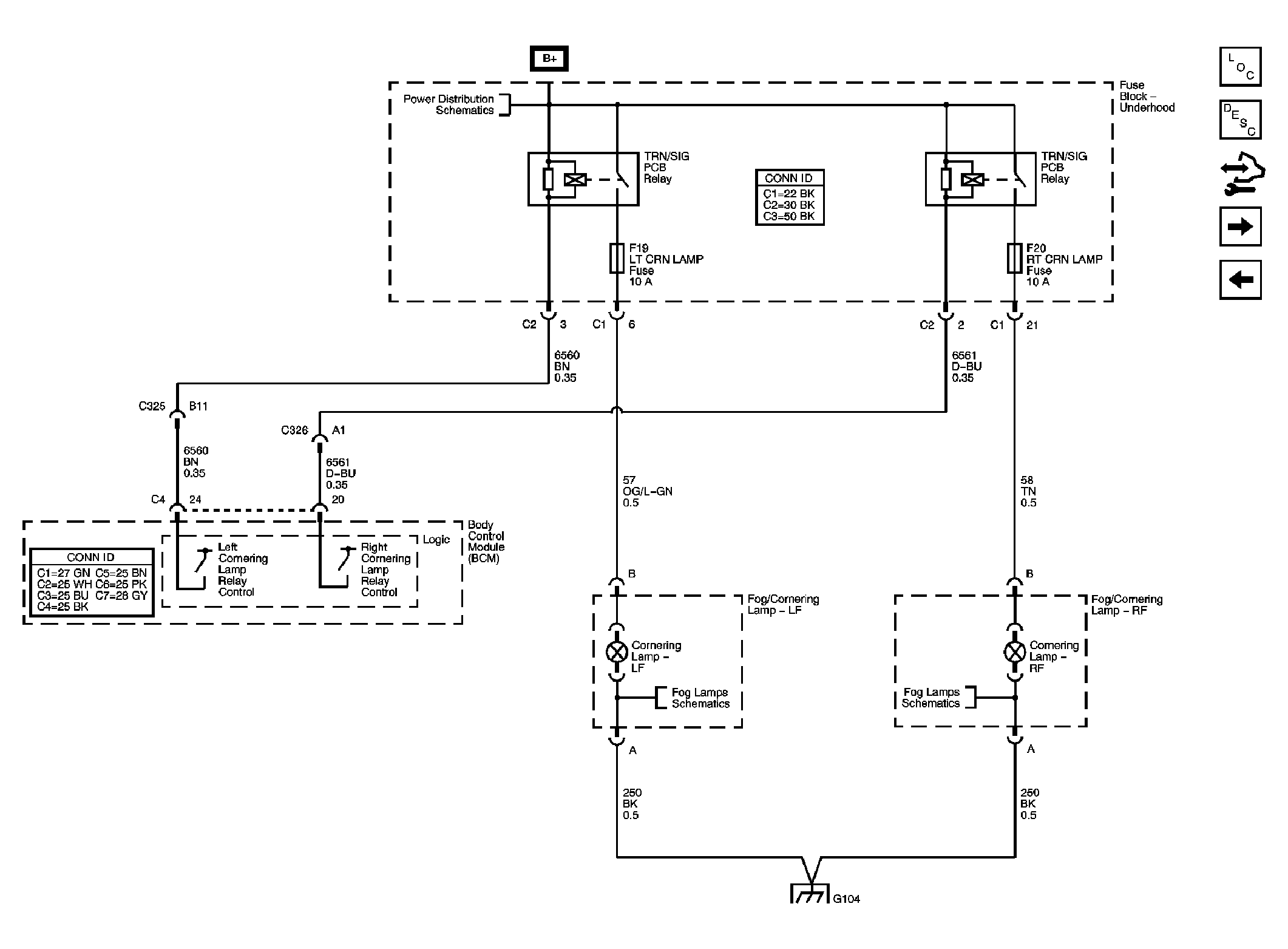

Fig 5: Cornering Lamps

Courtesy of GENERAL MOTORS CORP.

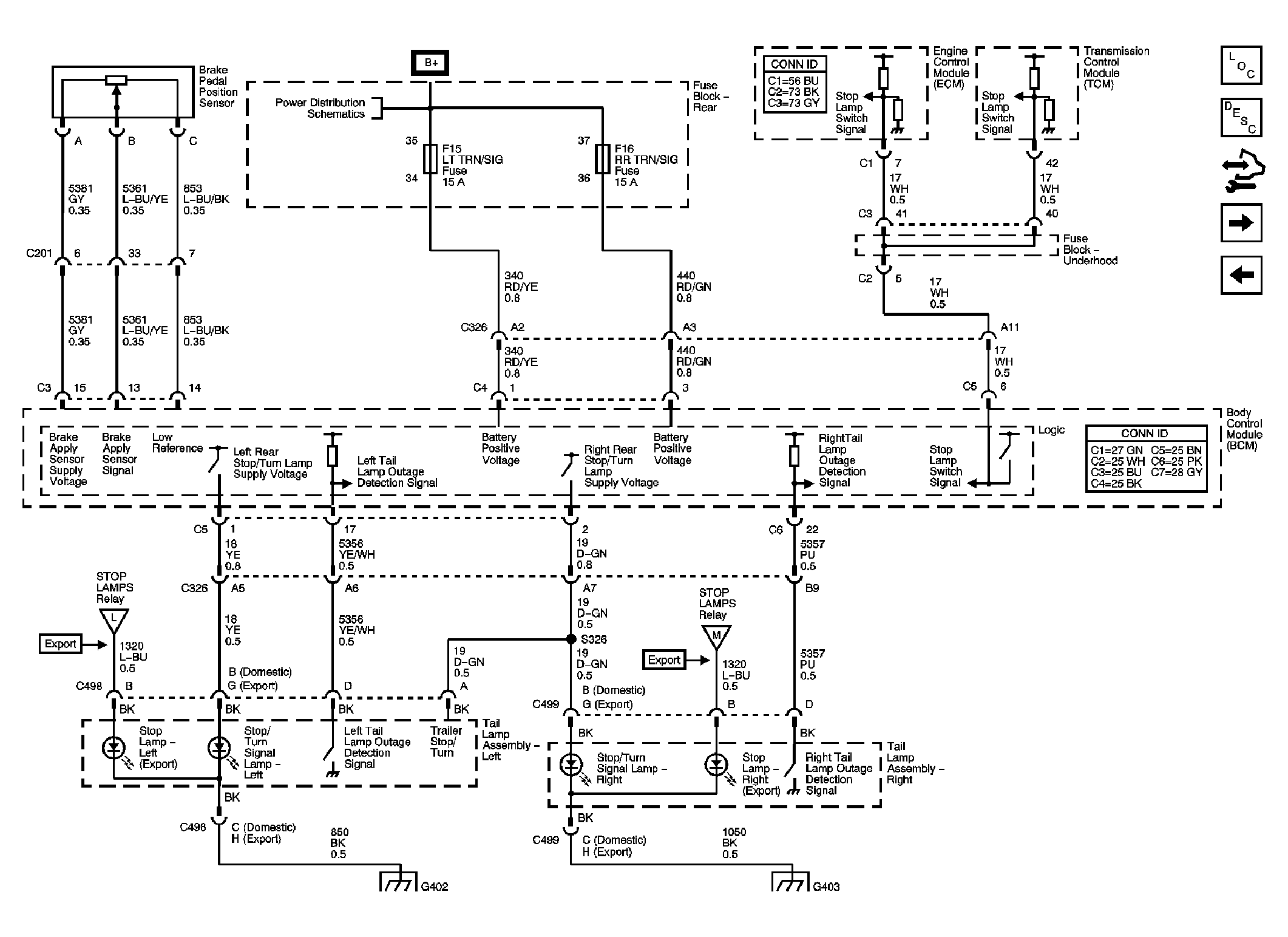

Fig 6: Stop/Rear Turn Signal Lamps

Courtesy of GENERAL MOTORS CORP.

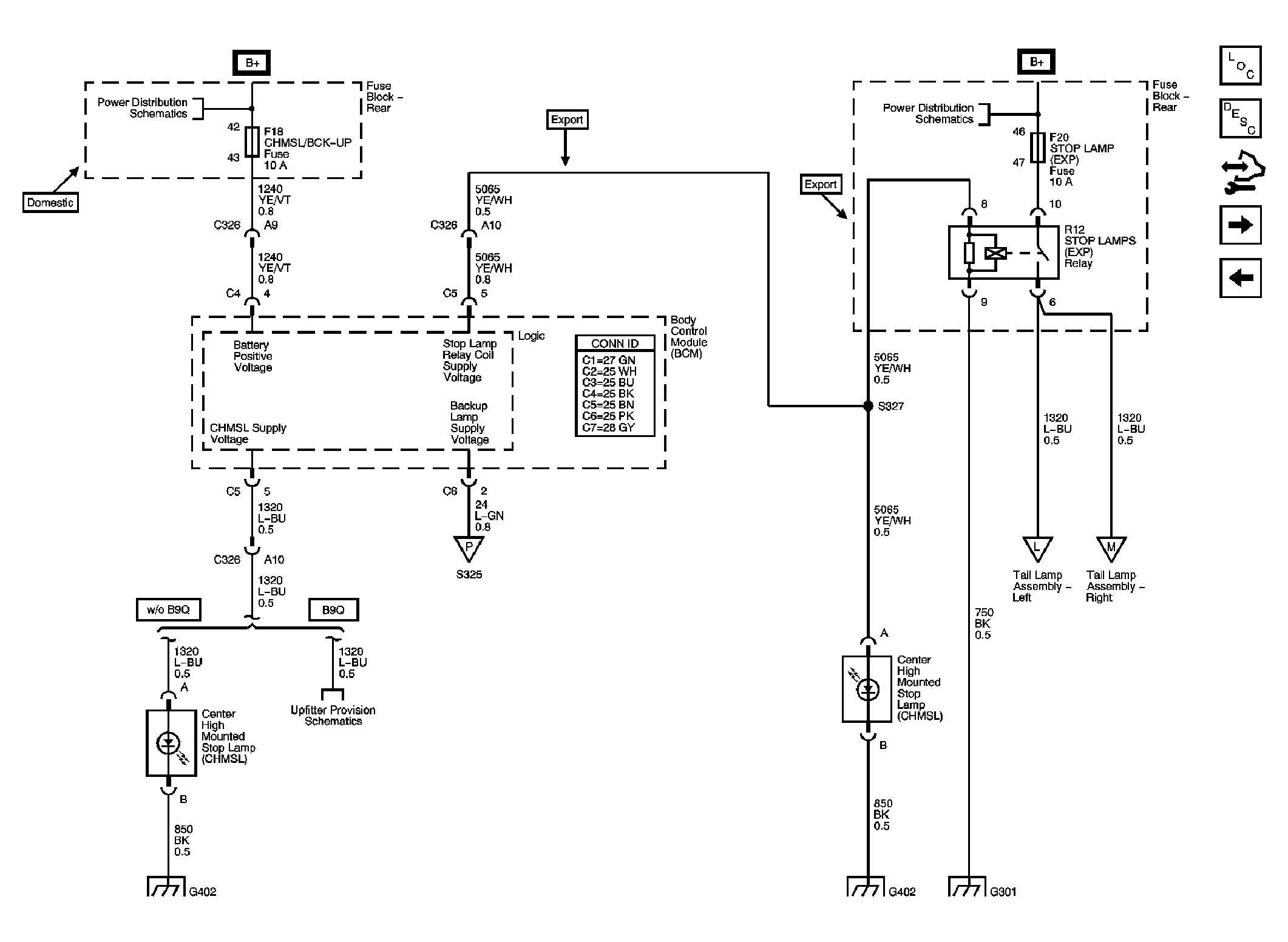

Fig 7: Center High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Fig 8: Backup Lamps

Courtesy of GENERAL MOTORS CORP.
