Tail Lamp Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

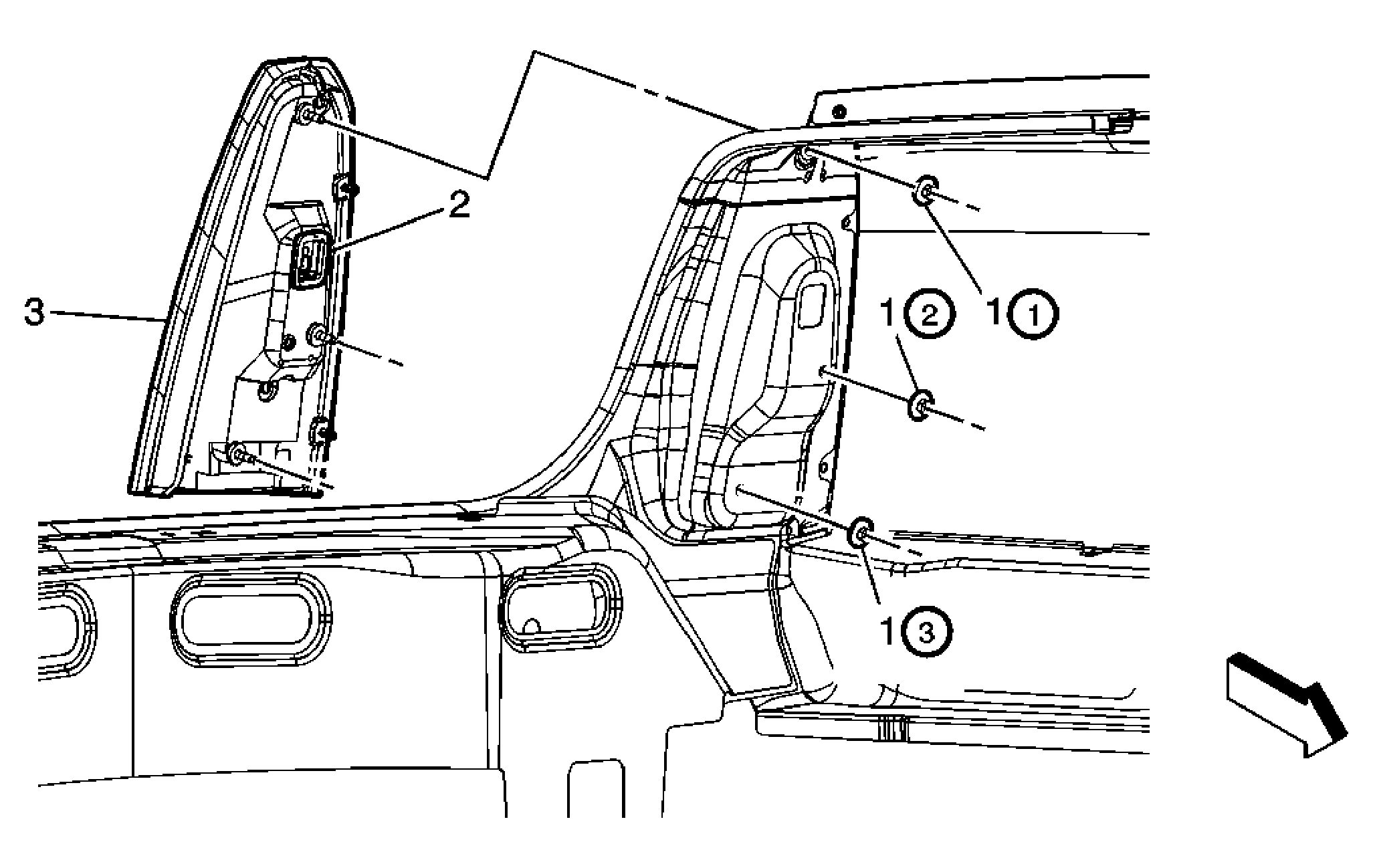

Fig 1: Tail Lamp Replacement

GM1589502

Courtesy of GENERAL MOTORS CORP.

Tail Lamp Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the rear compartment lid in order to access the tail lamp assembly nuts. Remove the rear compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement . Pull back either the RH or the LH rear compartment side trim panel in order to access the tail lamp nuts. Refer to Rear Compartment Side Trim Replacement - Right Side or Rear Compartment Side Trim Replacement - Left Side .
1	Nuts, Tail Lamp Assembly (Qty: 3) Tip: Tighten nuts in sequence as shown. Tighten: 6 N.m(53 lb in)
2	Connector, Chassis Electrical Tip: Release the connector position assurance (CPA) and disconnect the electrical connector from the LED socket.
3	Lamp Assembly, Tail
