Roof Rail Rear Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy Lamp Replacement - Rear Quarter

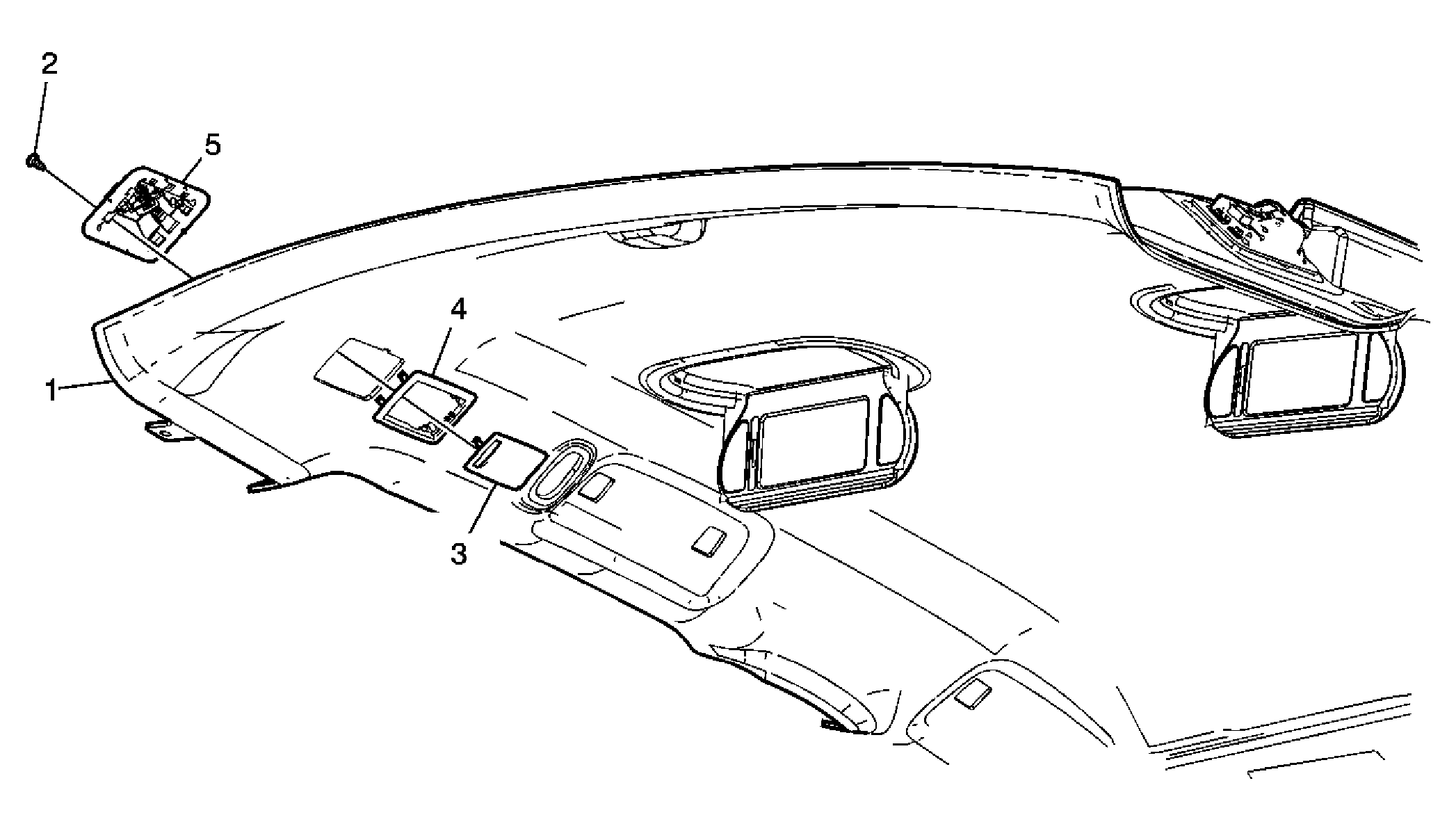

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Headlining Trim Panel Assembly Refer to Headlining Trim Panel Replacement . Tip: Lower the headliner enough to gain access to the back side of the rear roof rail lamp. |
| 2 | Roof Rail Rear Courtesy and Reading Lamp Screw Tighten: 2 N.m (18 lb in) |
| 3 | Roof Rail Rear Courtesy and Reading Lamp Lens |
| 4 | Roof Rail Rear Courtesy and Reading Lamp Bezel |
| 5 | Roof Rail Rear Courtesy and Reading Lamp Housing |
