Repeater Lamp Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

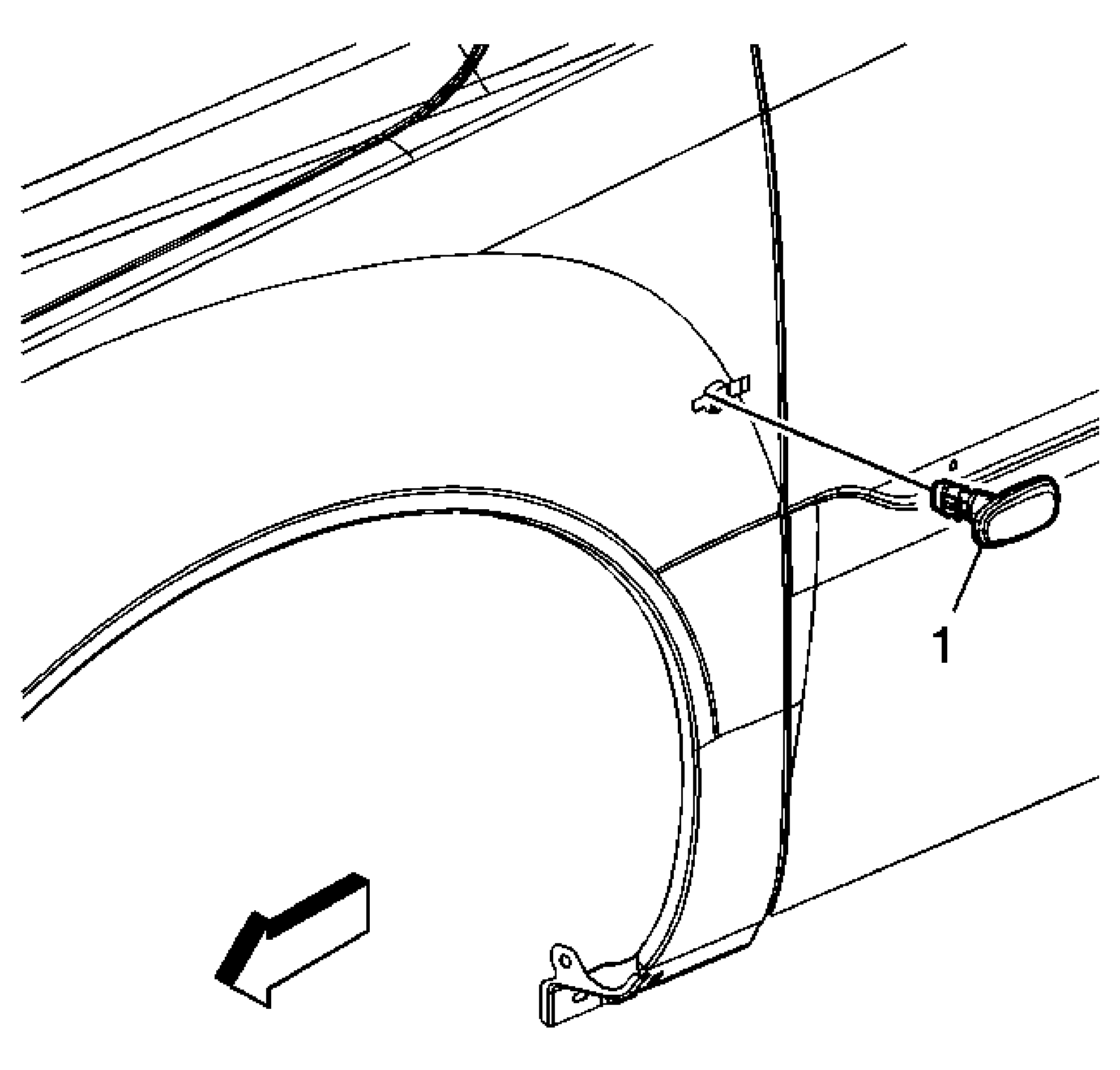

Fig 1: Repeater Lamp Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Rotate the front side turn signal lamp counterclockwise in order to remove unlock the tab from the fender slot. Disconnect the electrical connector.
1	Lamp Assembly, Front Side Turn Signal Tip: Replace the bulb as needed. Connect the electrical connector to the lamp. Insert the tab on the lamp to the slot in the front fender. Rotate the lamp and snap into position in the front fender.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Rotate the front side turn signal lamp counterclockwise in order to remove unlock the tab from the fender slot.
Disconnect the electrical connector.

Lamp Assembly, Front Side Turn Signal
Tip:

Replace the bulb as needed.
Connect the electrical connector to the lamp.
Insert the tab on the lamp to the slot in the front fender.
Rotate the lamp and snap into position in the front fender.
