Rear Compartment Lamp Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

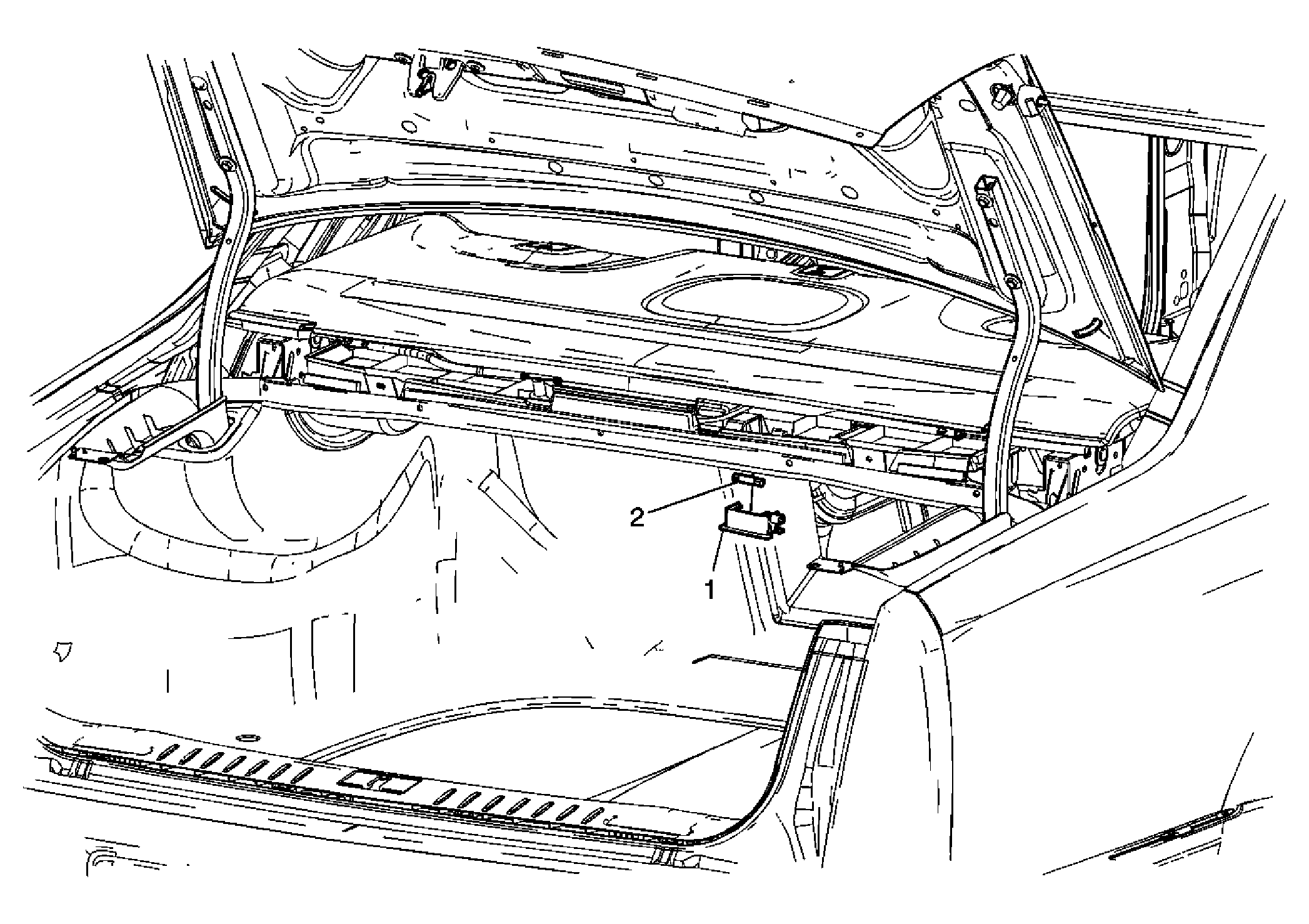

Fig 1: Rear Compartment Lamp Replacement
GM1640525Courtesy of GENERAL MOTORS CORP.
Rear Compartment Lamp Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Rear Compartment Lamp
Tip:
  1. Use a small flat-bladed tool to release the lamp assembly from the rear shelf.
  2. Disconnect the electrical connector.
2 Rear Compartment Lamp Bulb
