Park/Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

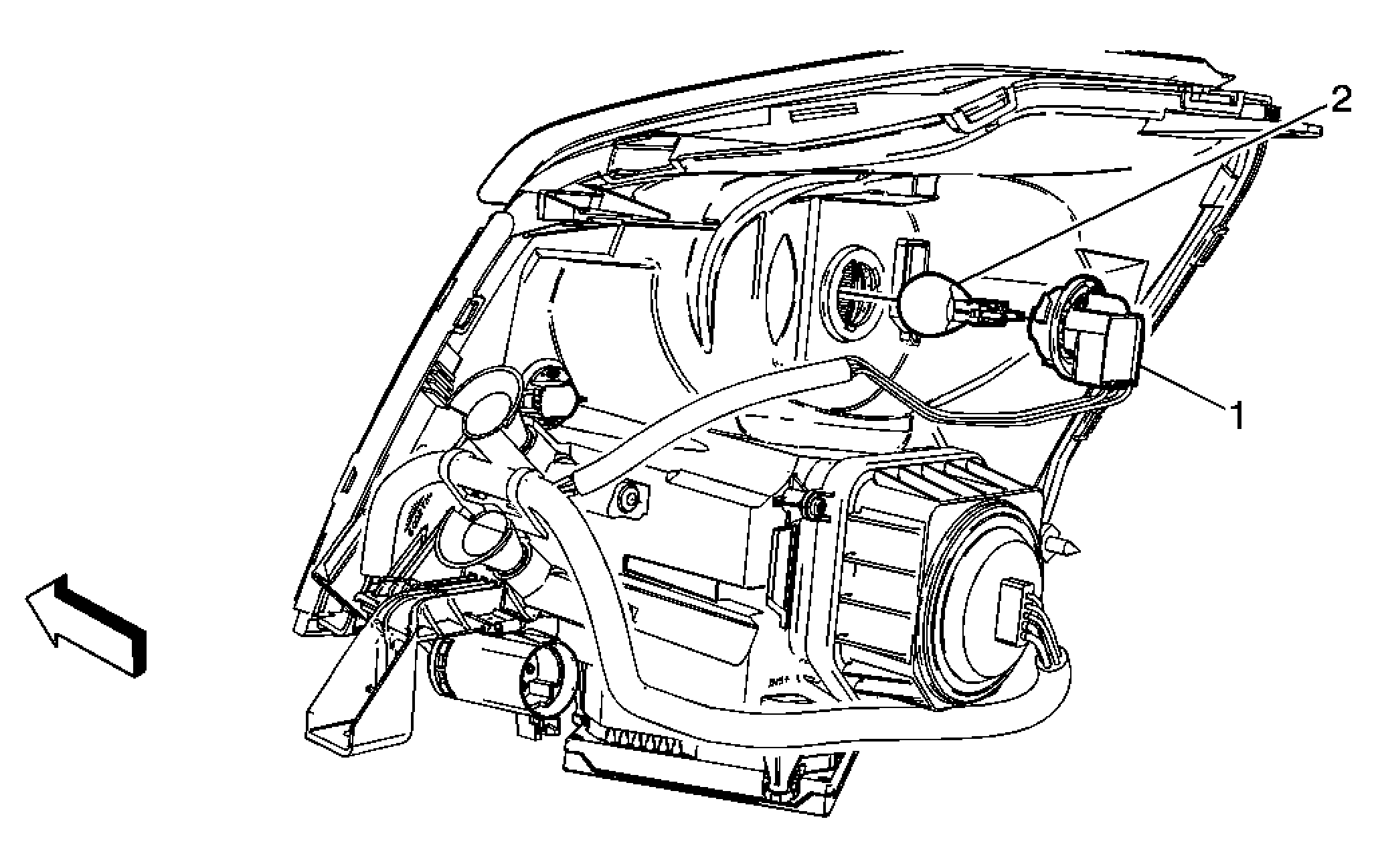

Fig 1: Park/Turn Signal Lamp Bulb Replacement
GM1641292Courtesy of GENERAL MOTORS CORP.
Park/Turn Signal Lamp Bulb Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the high intensity discharge lamp assembly. Refer to High Intensity Discharge Headlamp Replacement .
1 Directional Lamp Harness Socket
Tip:  Turn the socket counterclockwise to remove from the headlamp composite.
2 Front Directional Lamp Bulb
Tip:  Pull the directional lamp bulb straight from the lamp socket.
