Marker Lamp Bulb Replacement - Front Side

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

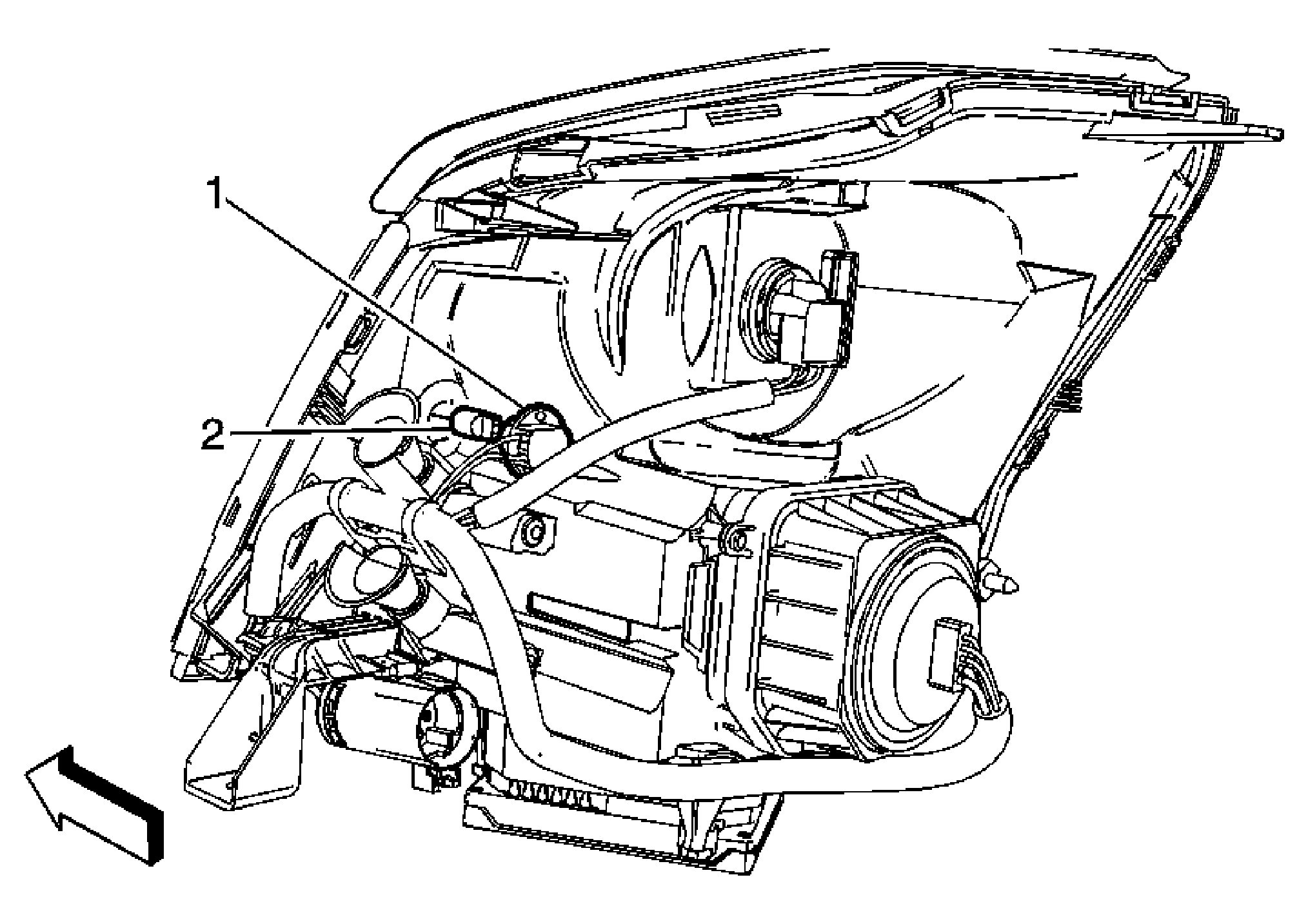

Fig 1: Marker Lamp Bulb Replacement - Front Side
GM1641293Courtesy of GENERAL MOTORS CORP.
Marker Lamp Bulb Replacement - Front Side

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the high intensity discharge lamp assembly. Refer to High Intensity Discharge Headlamp Replacement .
1 Marker Lamp Harness Socket
Tip:  Turn the socket counter clockwise to remove from the headlamp composite.
2 Front Marker Lamp Bulb
Tip:  Pull the directional lamp bulb straight from the lamp socket.
