Instrument Panel Storage Compartment Lamp Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

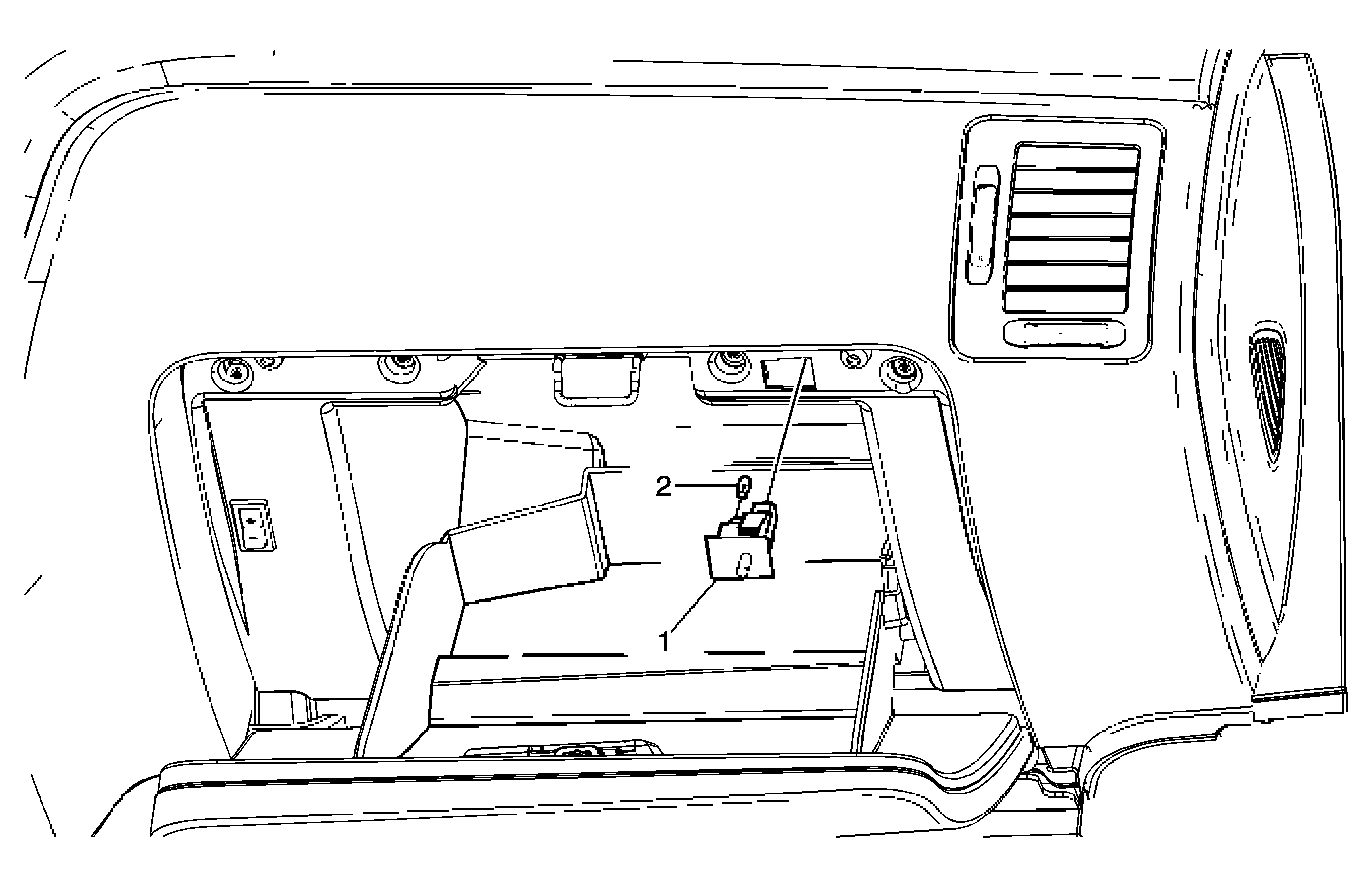

Fig 1: Instrument Panel (I/P) Storage Compartment Lamp Replacement
GM1640523Courtesy of GENERAL MOTORS CORP.
Instrument Panel Storage Compartment Lamp Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Instrument Panel Compartment Lamp Switch
Tip:
  1. Use a small flat bladed tool to release the switch from the storage compartment.
  2. Disconnect the electrical connector.
2 Instrument Panel Compartment Lamp Bulb
