Headlamp Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

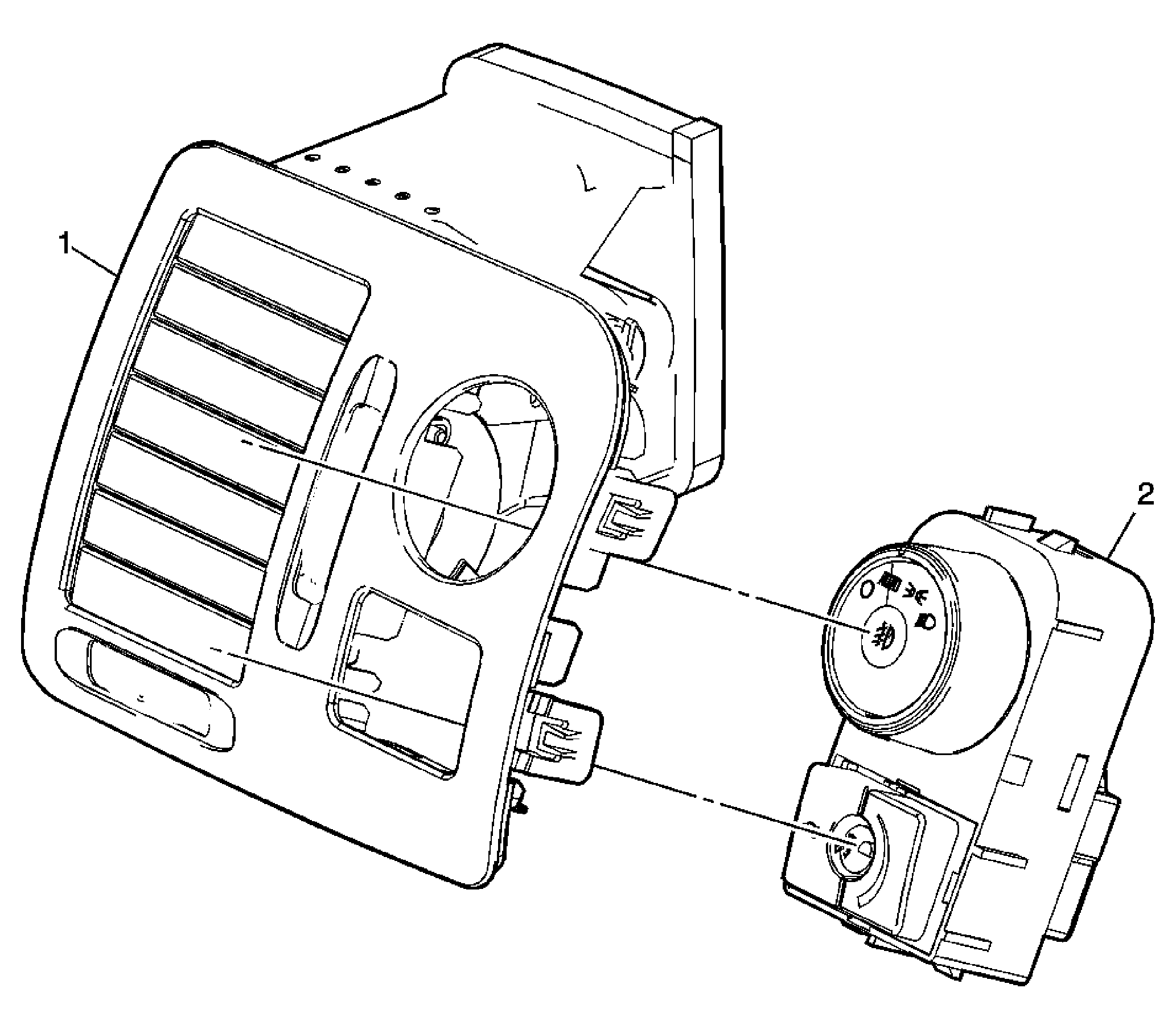

Fig 1: View of Headlamp Switch
GM1640510Courtesy of GENERAL MOTORS CORP.
Headlamp Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Instrument Panel Outer Air Outlet Assembly Left
Refer to Air Outlet Replacement - Instrument Panel - Left .
2 Headlamp Switch Assembly
