Headlamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Headlamp Bulb Replacement

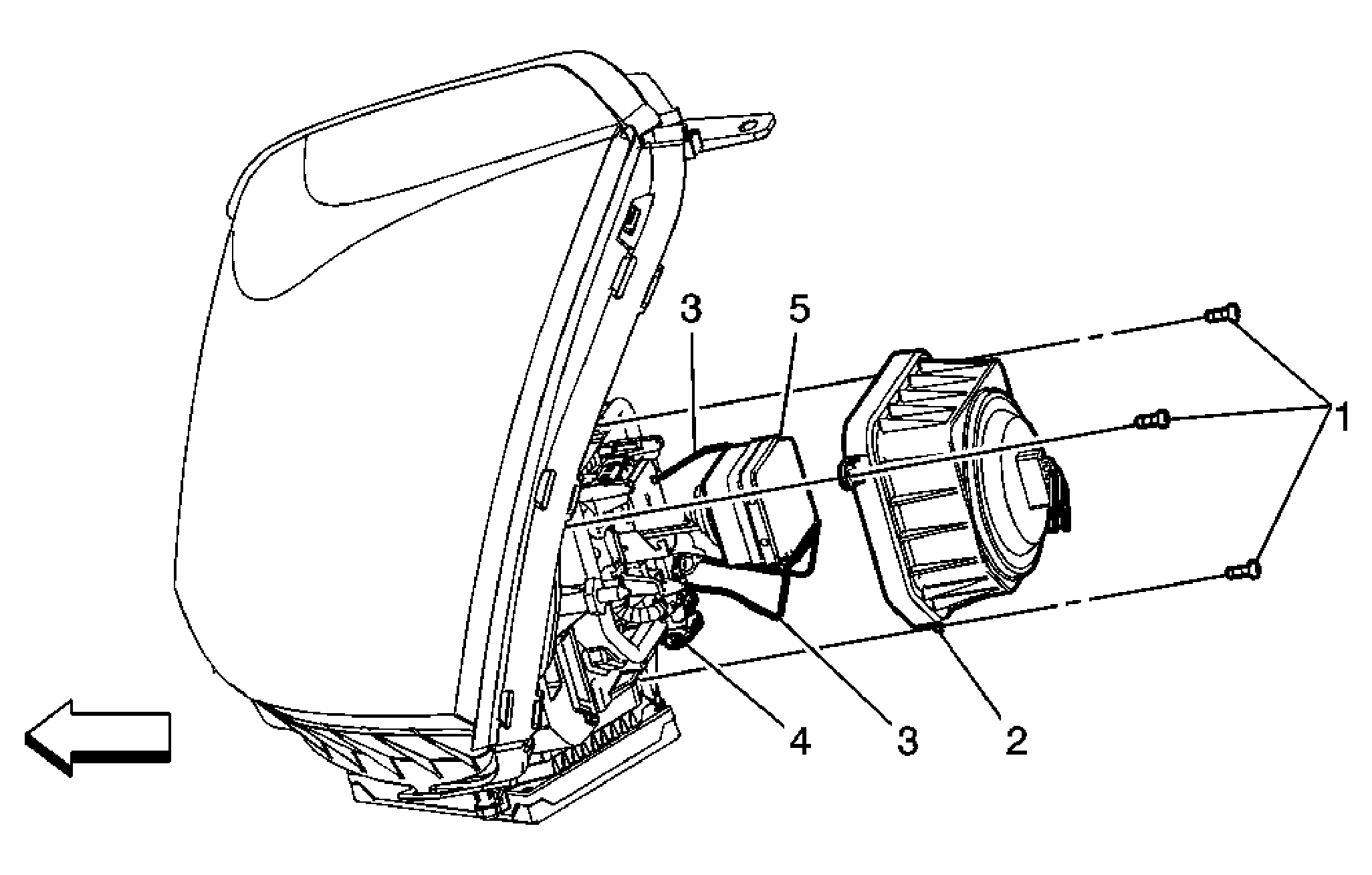

| Callout | Component Name |
|---|---|
|
CAUTION:
The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system.
CAUTION:
The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Preliminary Procedure: Remove the headlamp. Refer to High Intensity Discharge Headlamp Replacement .
|
|
| 1 | Tip:
Do not remove the front bumper fascia to perform this procedure. Just remove enough fasteners and retainers in order to lower one corner of the bumper fascia to access the bulb. Headlamp Bulb Cover Screws (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (27 lb in) |
| 2 | Headlamp Bulb Cover |
| 3 | Headlamp Bulb Retention Springs (Qty: 2) Tip: Release the springs in order to access the high intensity discharge (HID) bulb. |
| 4 | Headlamp Bulb Electrical Connector Tip: Pull the bulb rearward and release the electrical connector from the bulb. |
| 5 | Headlamp Bulb
NOTE:
Refer to Halogen Bulb Caution
. Tip: Pull the headlamp bulb from the headlamp assembly. |
