Front Fog Lamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Front Fog Lamp Bulb Replacement

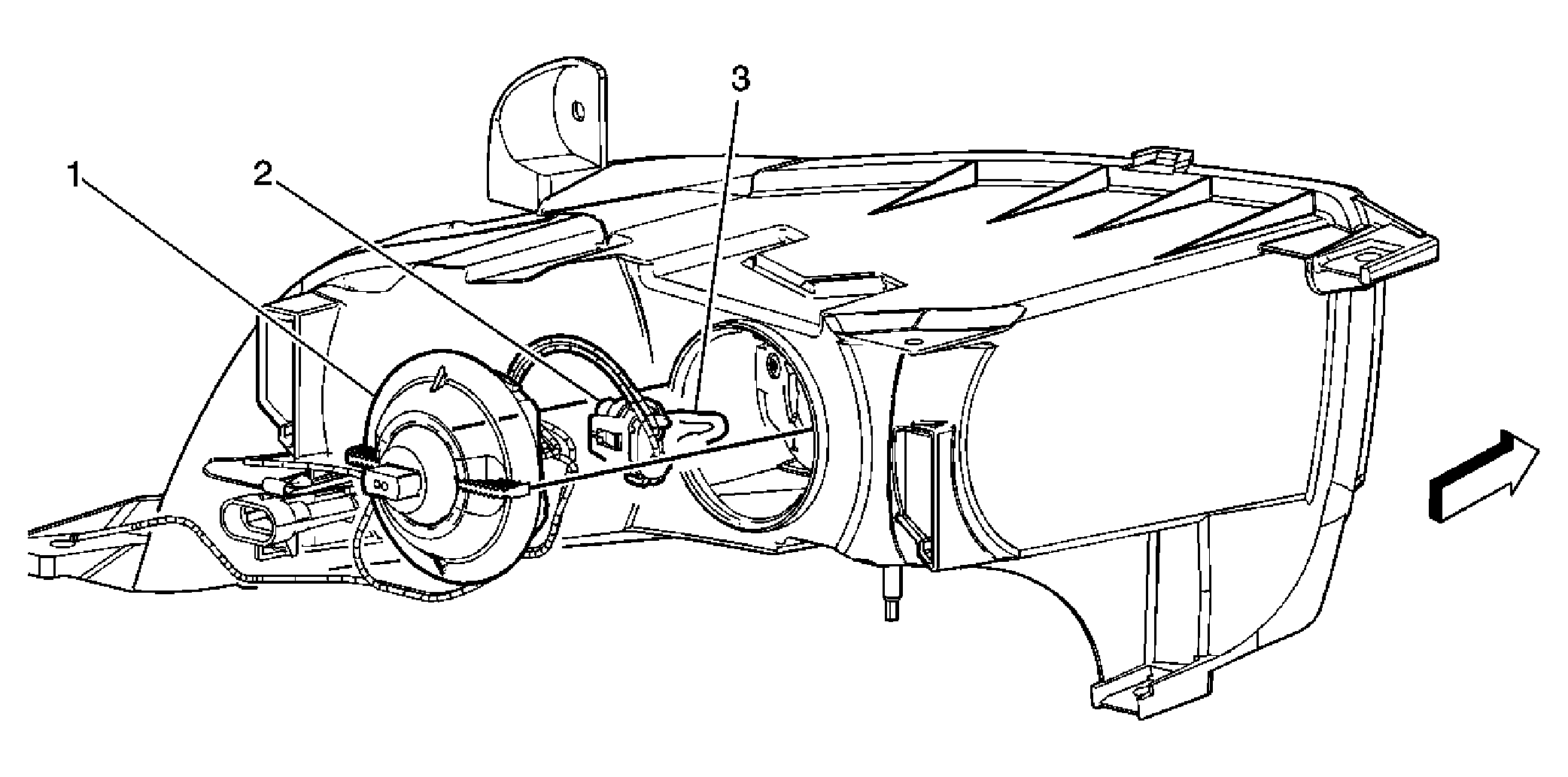

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Front Fog Lamp Wiring Harness Assembly Cover Tip: Turn the cover a quarter turn in order to remove and access the fog lamp bulb. |
| 2 | Front Fog Lamp Electrical Connector Tip: Turn the bulb socket a quarter turn counterclockwise and remove the bulb socket from the inner lamp assembly. |
| 3 | Front Fog Lamp Bulb
CAUTION:
Refer to Halogen Bulb Caution
. Tip: Disconnect the fog lamp bulb socket from the electrical harness. |
