Door Courtesy Lamp and Reflector Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

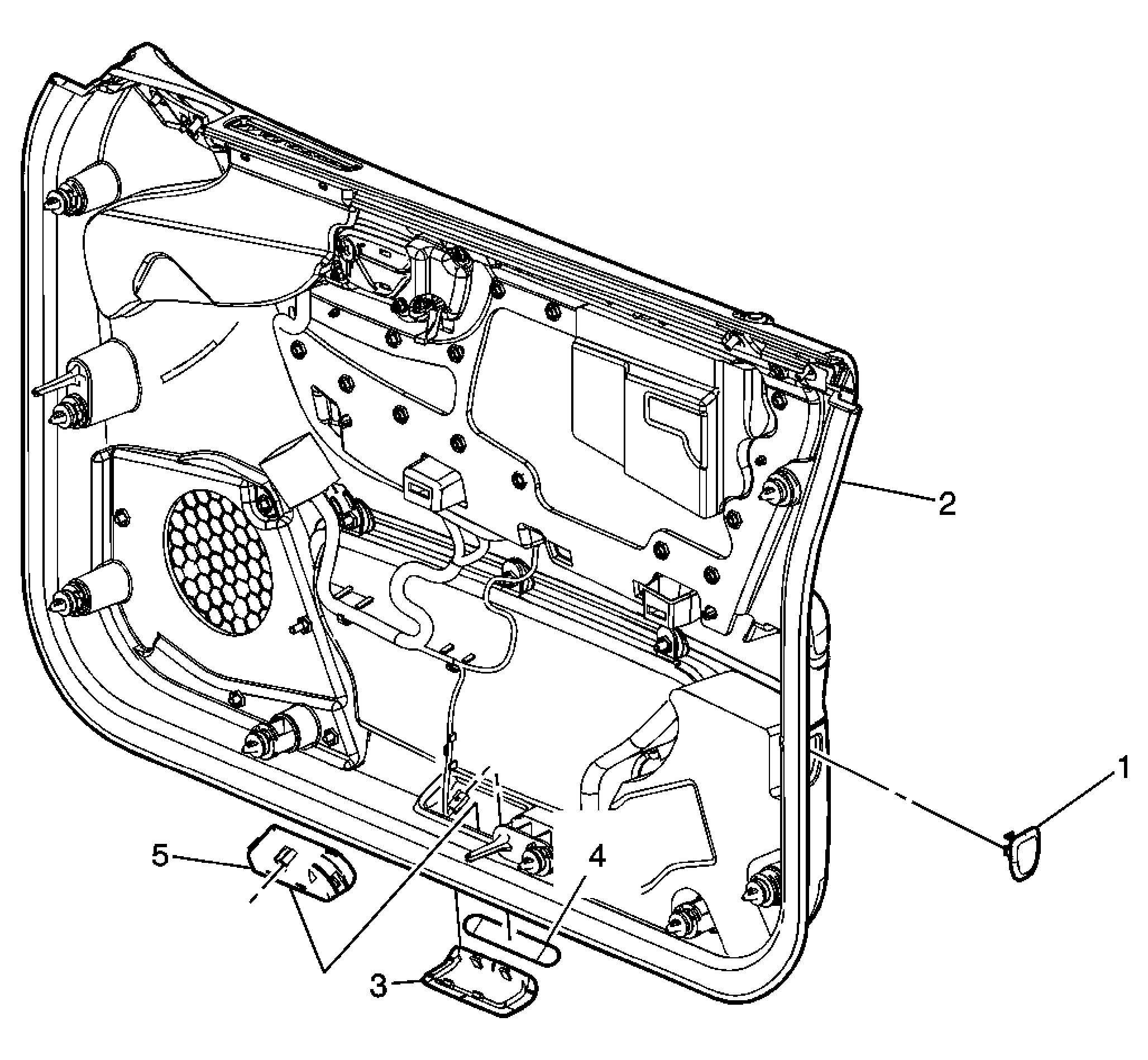

Fig 1: Courtesy Lamp/Reflector Replacement - Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Side Door Warning Reflector Replacement
1	Front Side Door Warning Reflector
Front Side Door Courtesy Lamp Assembly
2	Front Side Door Trim Panel Assembly Refer to Front Side Door Trim Panel Replacement .
3	Front Side Door Courtesy Lamp Lens
4	Front Side Door Courtesy Lamp Bulb
5	Front Side Door Courtesy Lamp Housing Tip: Disconnect the electrical connector.
