Cornering Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

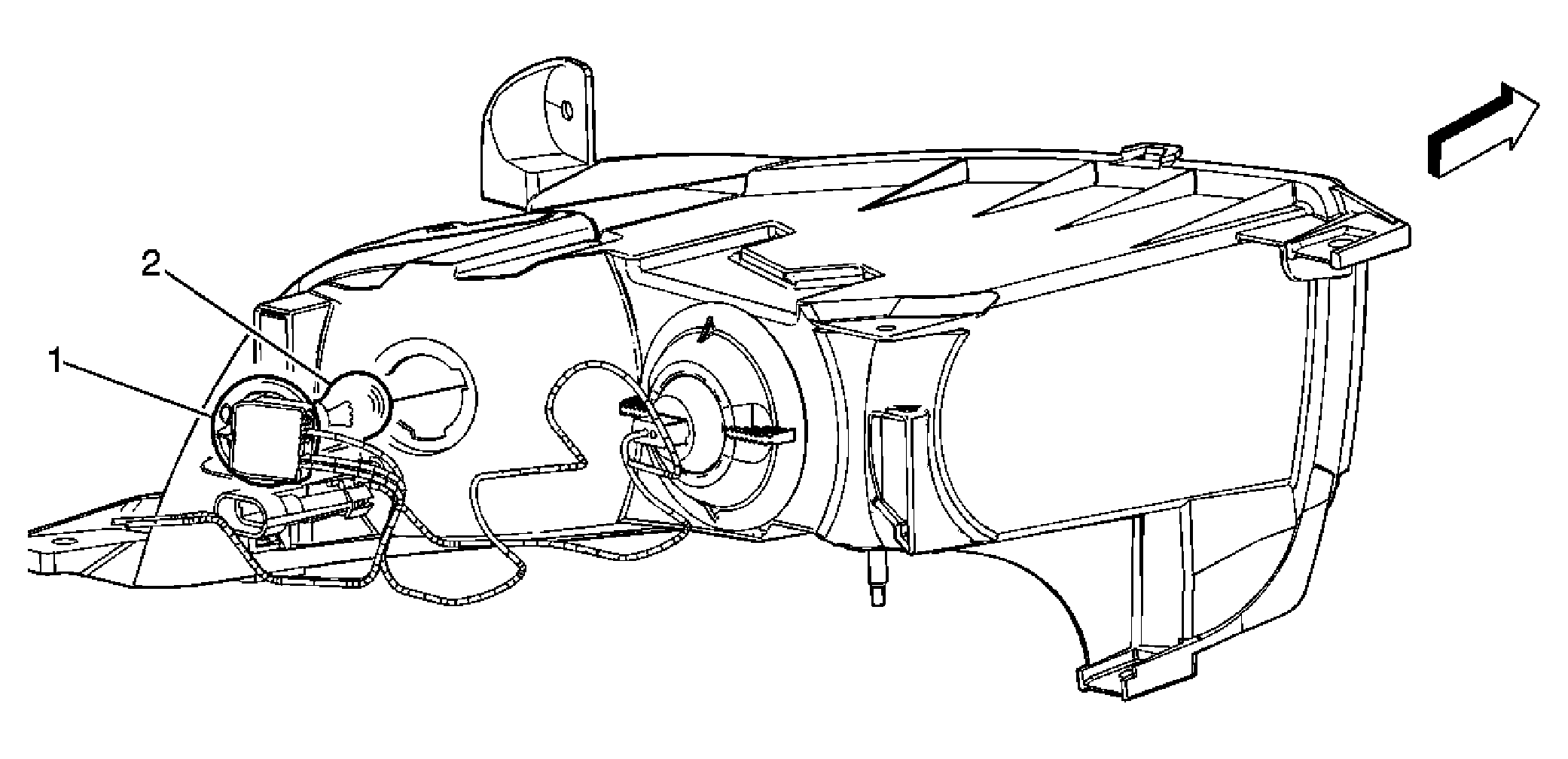

Fig 1: Cornering Lamp Bulb Replacement
GM1641247Courtesy of GENERAL MOTORS CORP.
Cornering Lamp Bulb Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1 Cornering Lamp Bulb Socket
Tip:  Rotate the socket a quarter turn counterclockwise in order to remove.
2 Cornering Lamp Bulb
