Horn Switch Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

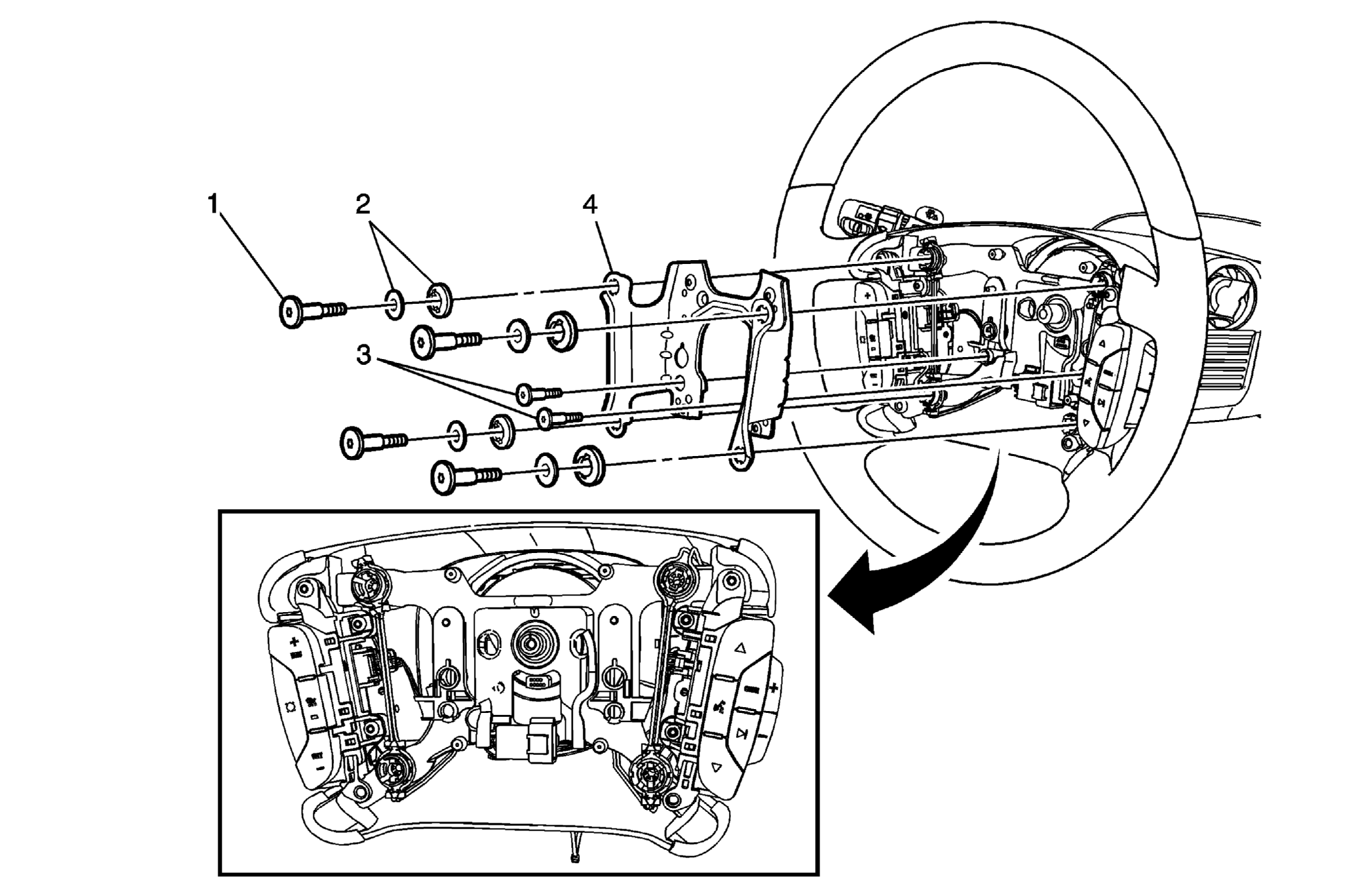

Fig 1: Removing/Installing Horn Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Horn Switch Bolts (Qty: 4) Tip: Hand start the bolts on installation to avoid cross threading. Tighten: 7 N.m (62 lb in)
2	Steering Wheel Horn Switch Washers (Qty: 4)
3	Steering Wheel Horn Switch Screws (Qty: 2) Tip: Hand start the screws on installation to avoid cross threading. Tighten: 5 N.m (44 lb in)
4	Steering Wheel Horn Switch Assembly Tip: Disconnect the horn switch electrical.
