Behind Left Front Fascia

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

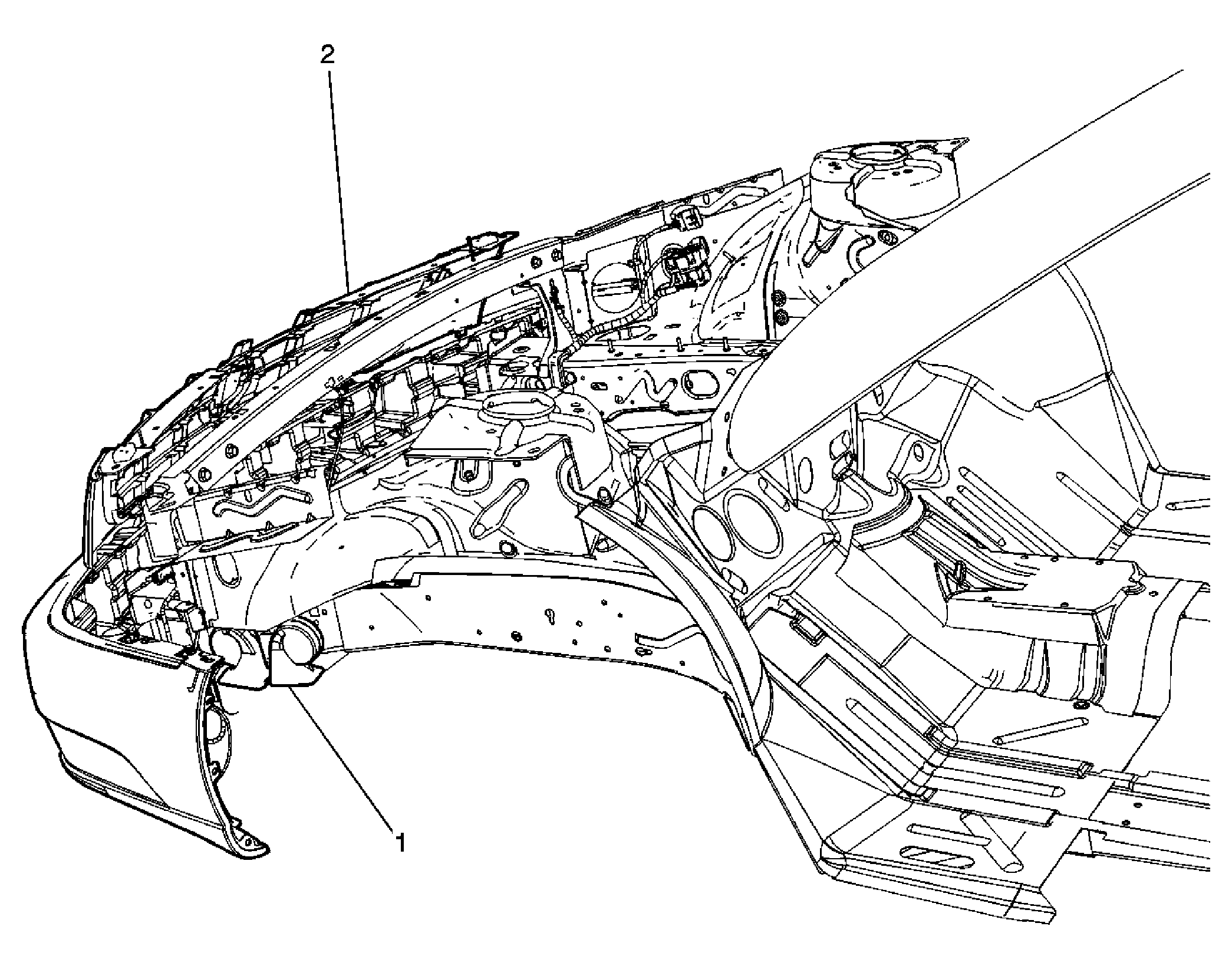

Fig 1: Behind Left Front Fascia
GM1860679Courtesy of GENERAL MOTORS CORP.
  1. Horn Assembly
  2. Front Fascia
