Wiper/Washer Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

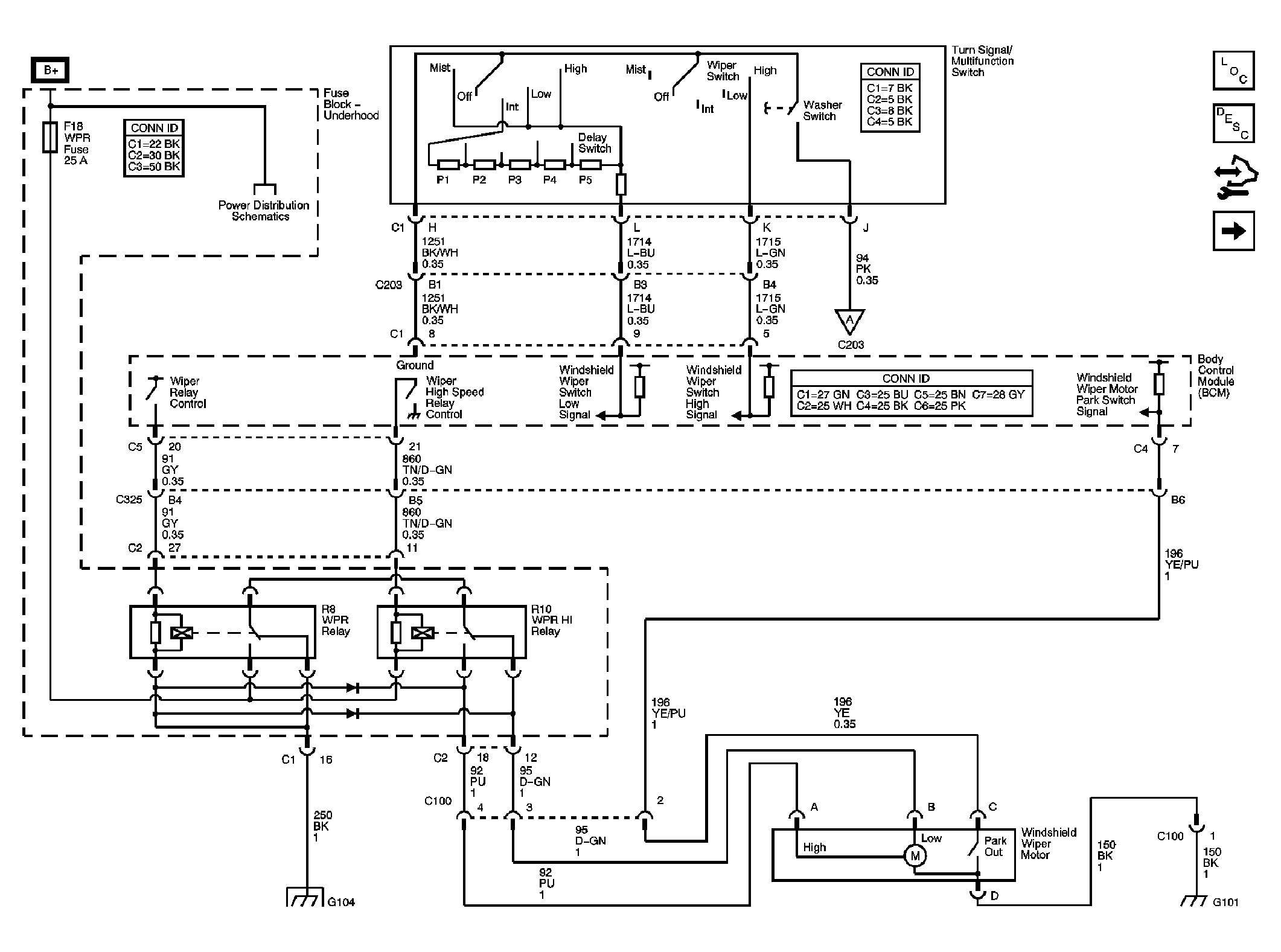

Fig 1: Wiper System Power and Ground Schematics
GM1759510Courtesy of GENERAL MOTORS CORP.

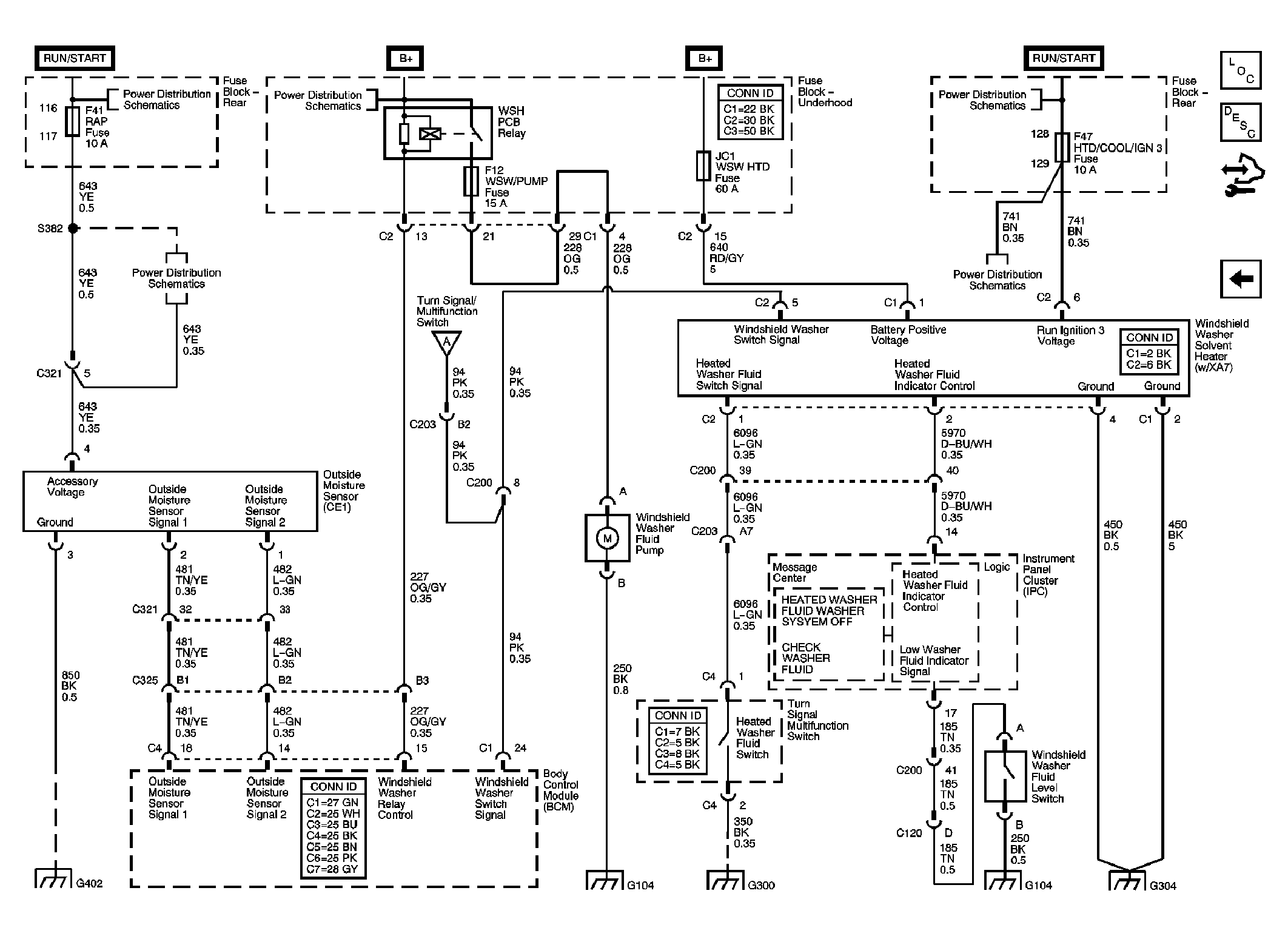

Fig 2: Outside Moisture Sensor and Windshield Washer Solvent Heater Schematics
GM1759512Courtesy of GENERAL MOTORS CORP.
