Wiper Blade Element Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

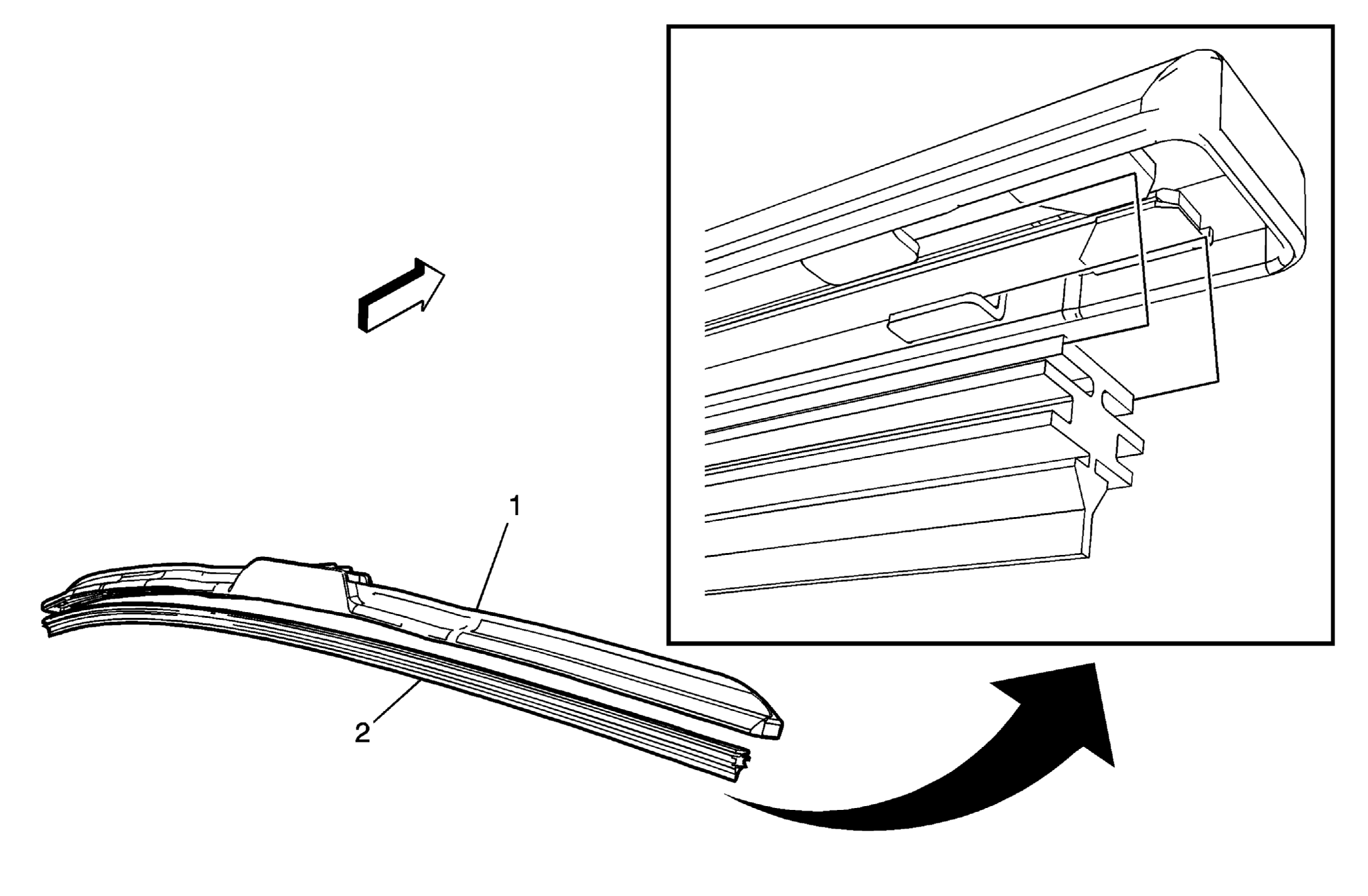

Fig 1: Replacing Wiper Blade Element

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position the wiper blade at a mid-wipe on the windshield. Cycle the ignition key to the off position. Raise the wiper blade off the glass.
1	Blade Assembly, Windshield Washer
2	Element Assembly, Windshield Washer Tip: With a small pair of needle nose pliers, secure the end of the wiper element and pull outward from the wiper blade claws in order to remove the element.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position the wiper blade at a mid-wipe on the windshield.
Cycle the ignition key to the off position.
Raise the wiper blade off the glass.

Blade Assembly, Windshield Washer

Element Assembly, Windshield Washer
Tip: With a small pair of needle nose pliers, secure the end of the wiper element and pull outward from the wiper blade claws in order to remove the element.
