Windshield Outside Moisture Sensor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

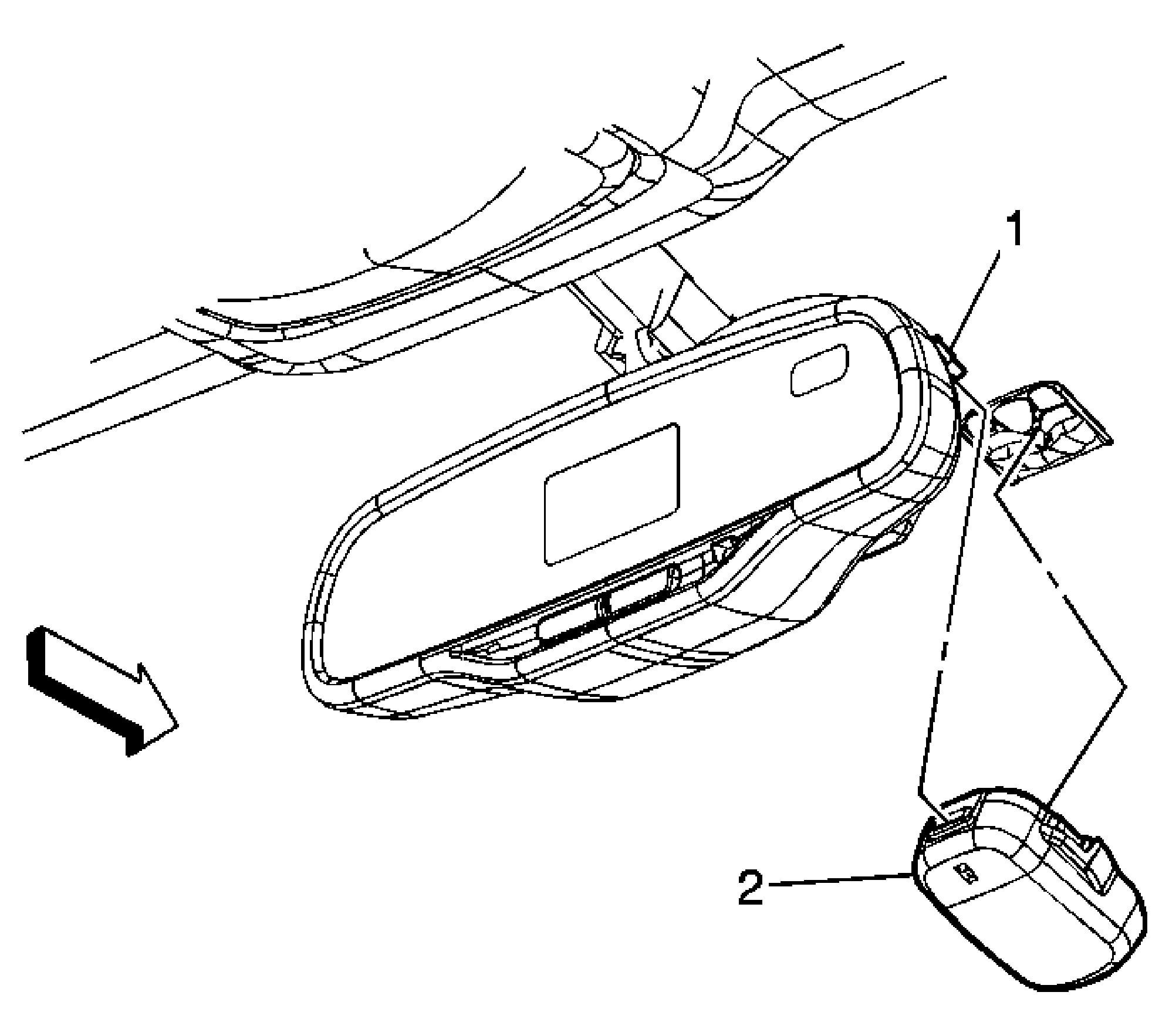

Fig 1: Outside Moisture Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Slide upward the plastic mirror harness cover. Disconnect the electrical connector at the base of the windshield outside moisture sensor.
1	Headliner Harness Electrical Connector
2	Windshield Outside Moisture Sensor Assembly Tip Push the sensor upward from the base in order to release from the windshield base.

Callout

Component Name

Preliminary Procedures

Slide upward the plastic mirror harness cover.
Disconnect the electrical connector at the base of the windshield outside moisture sensor.

Headliner Harness Electrical Connector

Windshield Outside Moisture Sensor Assembly

Tip

Push the sensor upward from the base in order to release from the windshield base.
