Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

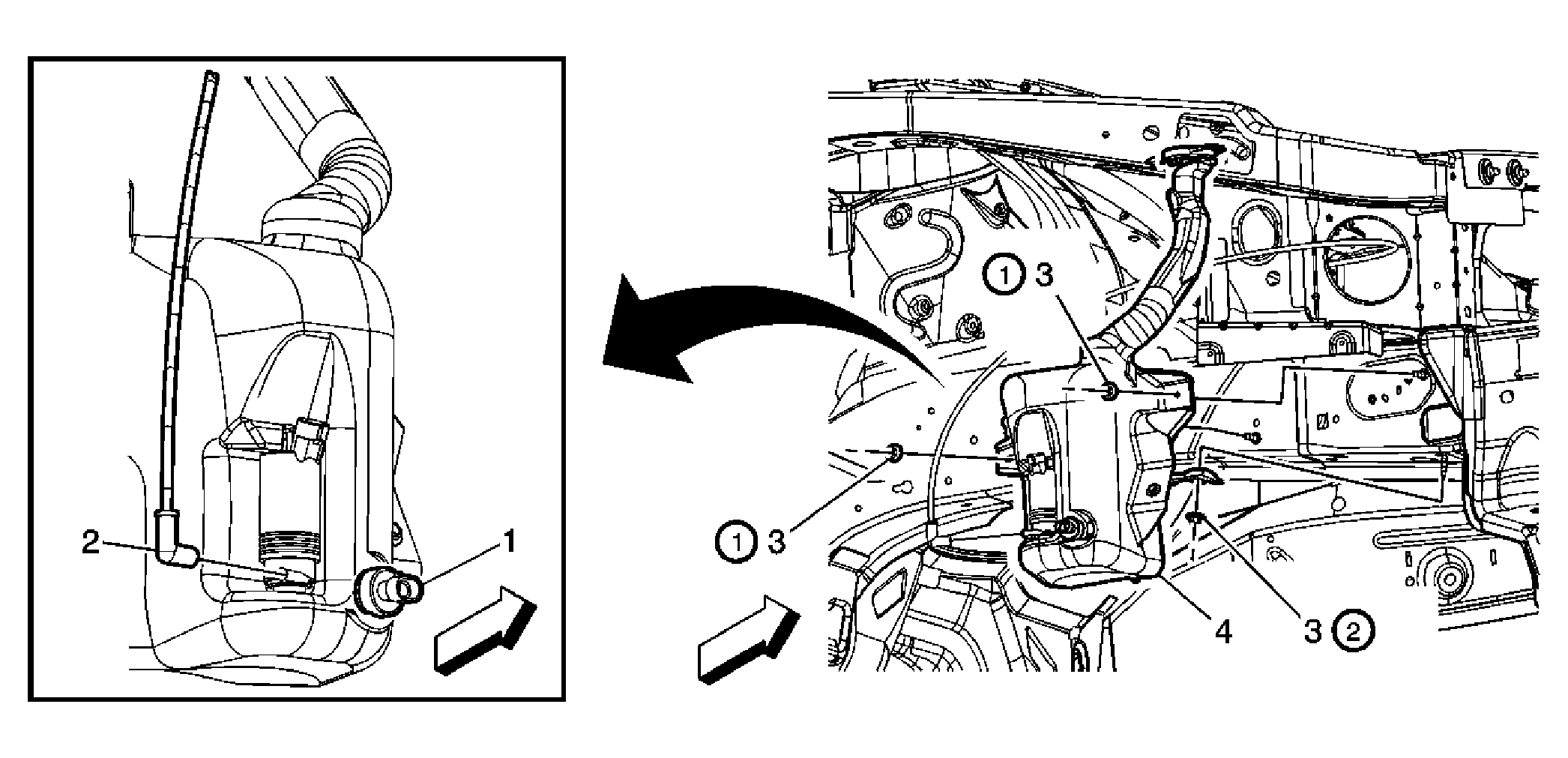

Fig 1: Washer Solvent Container Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the right front wheelhouse panel liner. Refer to Front Wheelhouse Liner Replacement . Drain the washer solvent into a suitable clean container. Disconnect the electrical connector from the windshield washer solvent level sensor. Disconnect the electrical connector at the windshield washer pump.
1	Switch, Windshield Washer Level Sensor
2	Hose Assembly, Windshield Washer Pump Tip: Disconnect the hose from the windshield washer pump spout and drain washer solvent into a suitable clean container.
3	Nuts, Windshield Washer Solvent Container (Qty: 3) Tip: Transfer the cap and lower mounting bracket to the new washer solvent container. Tighten: 6 N.m (53 lb in)
4	Container Assembly, Windshield Washer Tip: Lower the windshield washer container from RH chassis rail.
