Hose Replacement - Windshield Washer

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

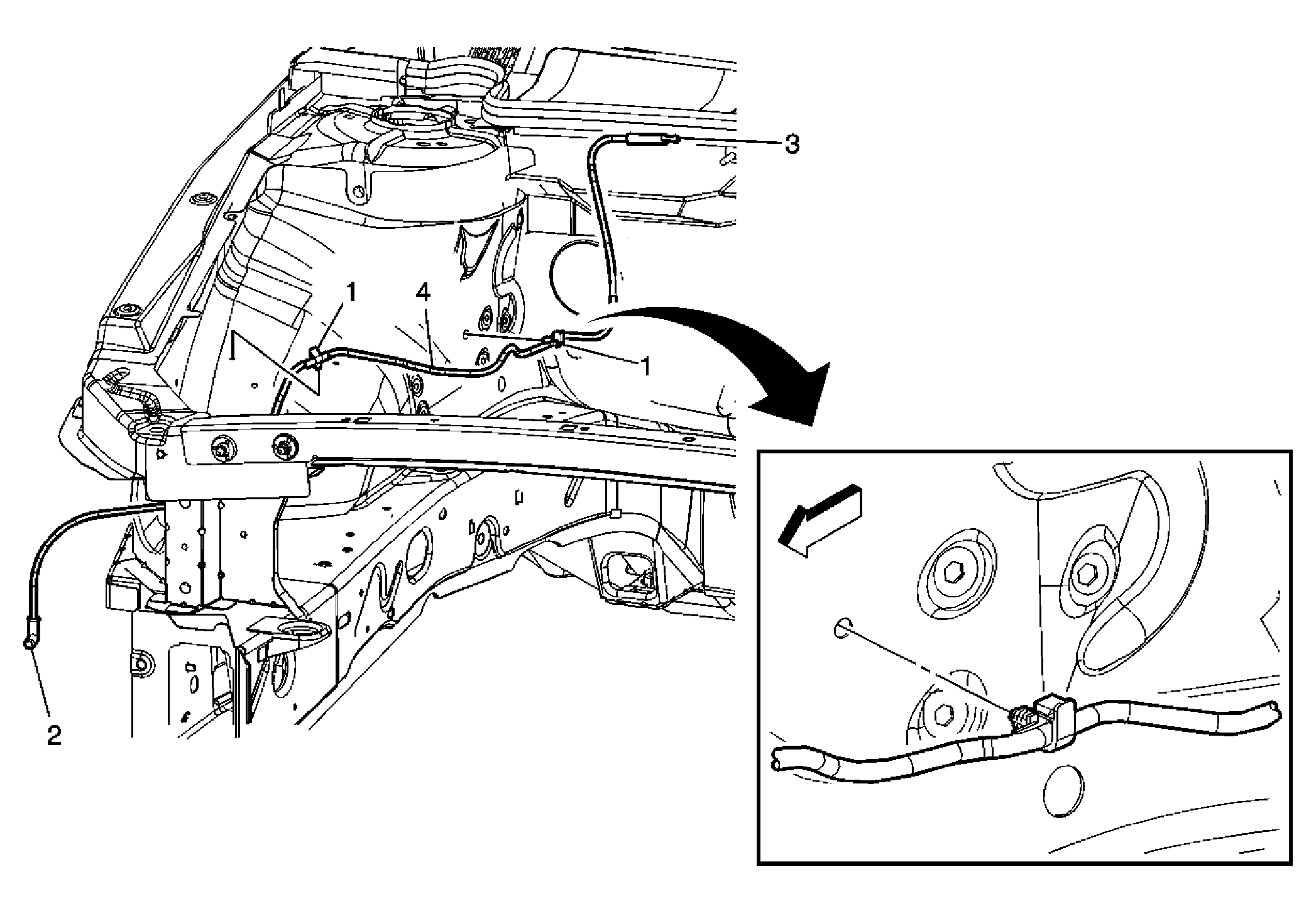

Fig 1: Hose Replacement - Windshield Washer

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the hood. Disconnect the washer hose at the passenger side windshield washer solvent heater assembly. Remove the surge tank fasteners and reposition the tank as necessary. DO NOT drain tank. Disconnect the washer hose retention clips from the inner right hand wheelhouse panel. Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove the washer hose from the washer pump spout. Drain the washer solvent into a suitable container. Disconnect the hose from the washer container. Remove the washer hose from the large hole in behind the right front headlamp assembly.
1	Windshield Washer Hose to Inner Wheelhouse Panel Connection
2	Washer Pump Hose
3	Washer Solvent Container to Washer Solvent Heater Hose Tip: Ensure washer hose is re-routed properly to the washer solvent heater and secured at the 2 places on the inner wheelhouse.
4	Windshield Washer Container Hose Tip: Remove the washer hose from the large hole in behind the right front headlamp assembly.
