Windshield Washer Solvent Heater C1 (XA7)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

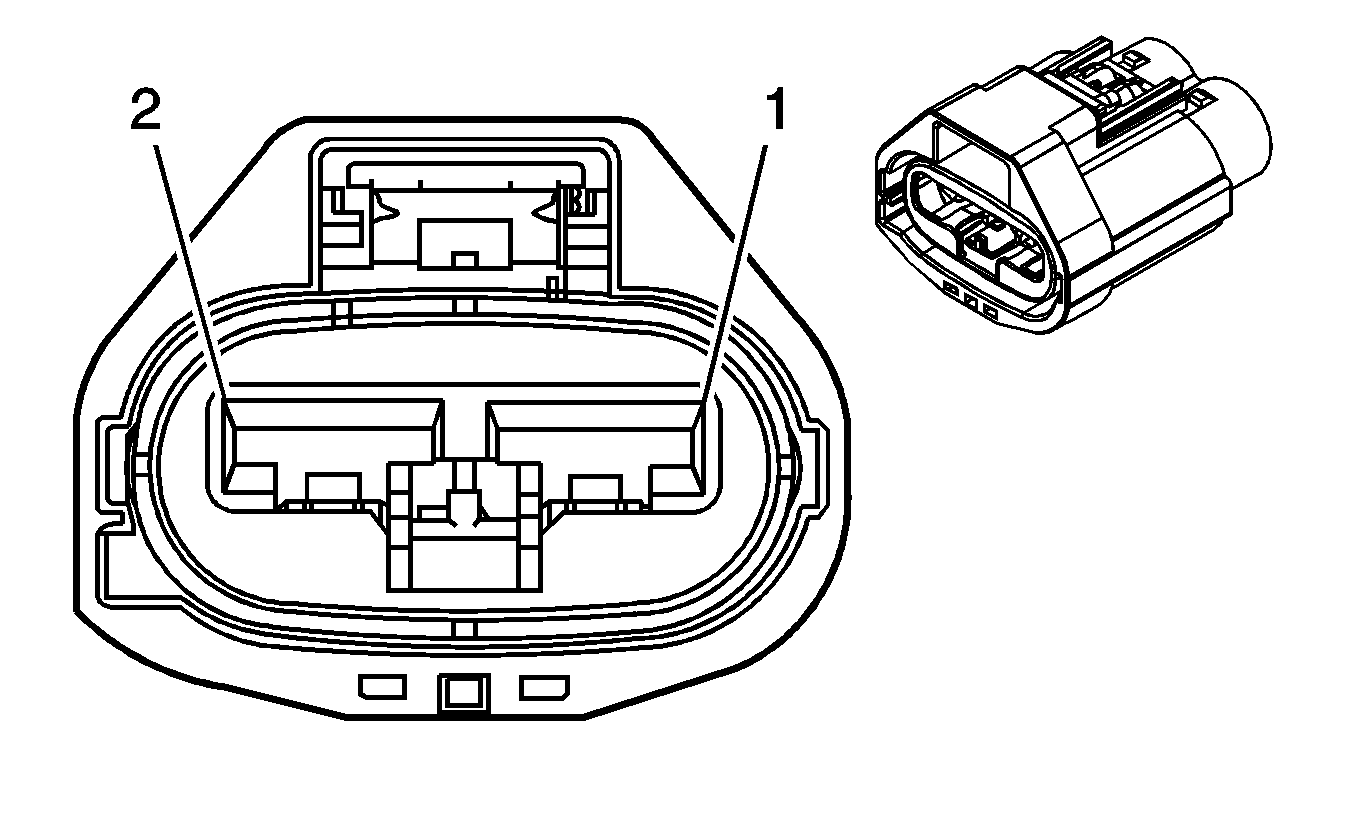

Fig 1: Windshield Washer Solvent Heater C1 (XA7) Connector End View

Courtesy of GENERAL MOTORS CORP.

Windshield Washer Solvent Heater C1 (XA7) Connector & Terminal Parts Information

Connector Part Information

OEM: 7282-3214-30
Service: See Catalog
Description: 2-Way M (BK)

Terminal Part Information

Terminal/Tray: 7114-3250/14
Core/Insulation Crimp: G/3
Release Tool/Test Probe: 12094430/J-35616-21 (RD)

Windshield Washer Solvent Heater C1 (XA7) Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	RD/GY	640	Battery Positive Voltage
2	BK	450	Ground
