Wiper/Washer Component Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

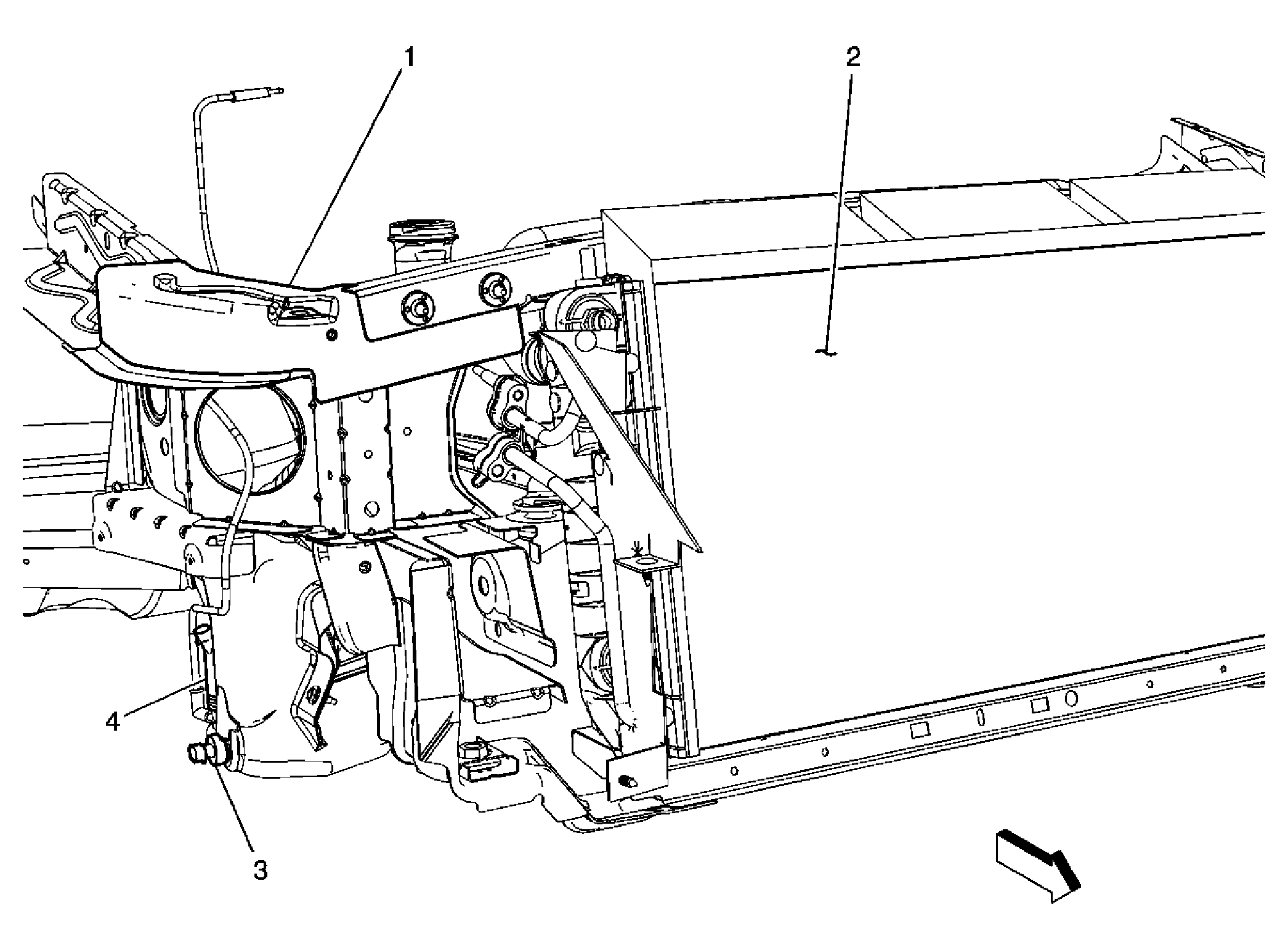

Fig 1: Washer Reservoir Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Support
2	Radiator
3	Windshield Washer Fluid Level Switch
4	Windshield Washer Fluid Pump

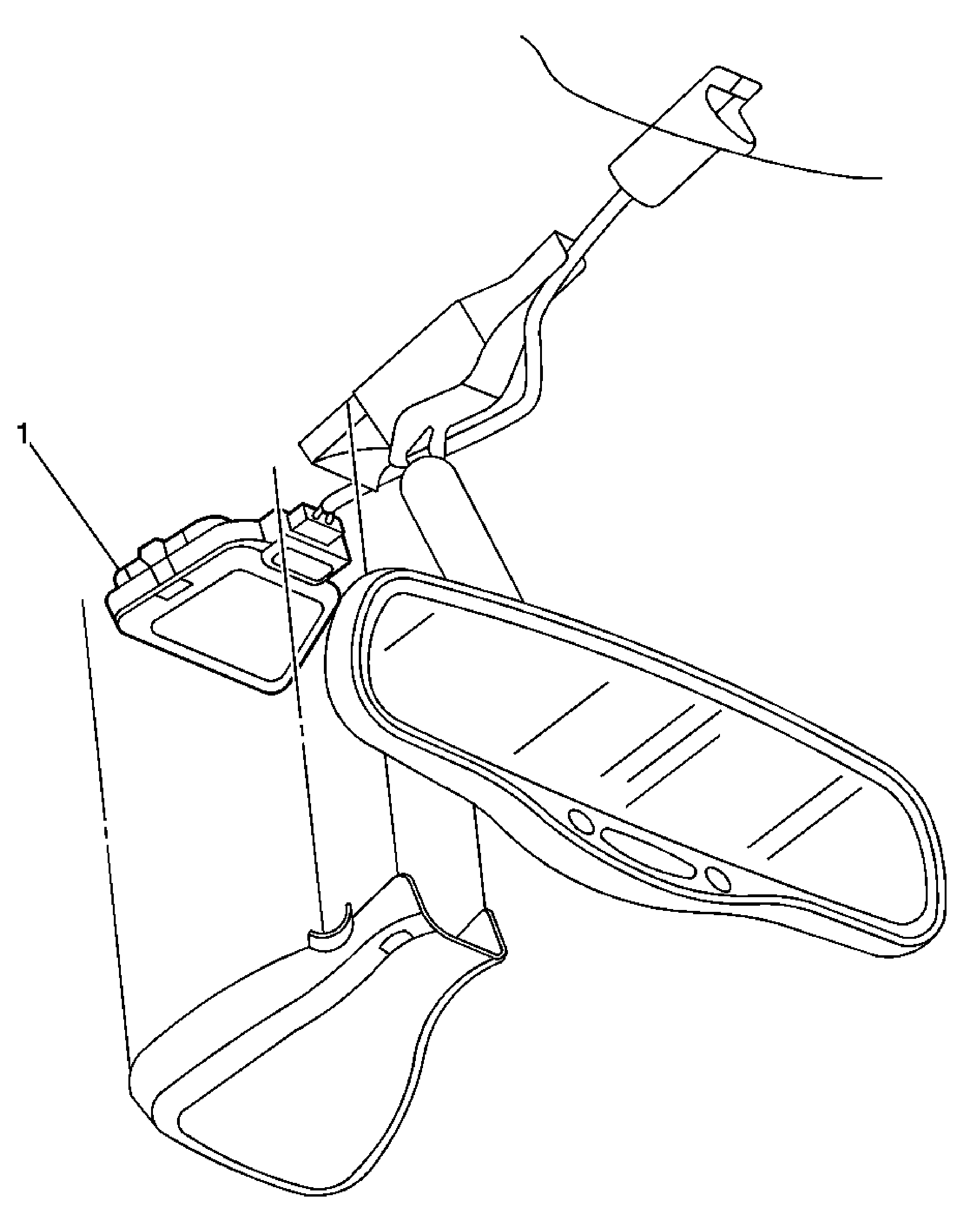

Fig 2: Upper Center of Windshield Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Moisture Sensor

Fig 3: Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Traction Control Switch (AQ9)
3	Ignition Lock Cylinder Solenoid (AQ9)
4	Ignition Key Alarm Switch
5	Theft Deterrent Module (TDM)
6	Ignition Switch
7	Inflatable Restraint Steering Wheel Module Coil
8	Steering Angle Sensor (JL4)
9	Telescoping Actuator (N37)
10	Tilt Actuator (N37)
11	Tilt/Telescope Switch (N37)

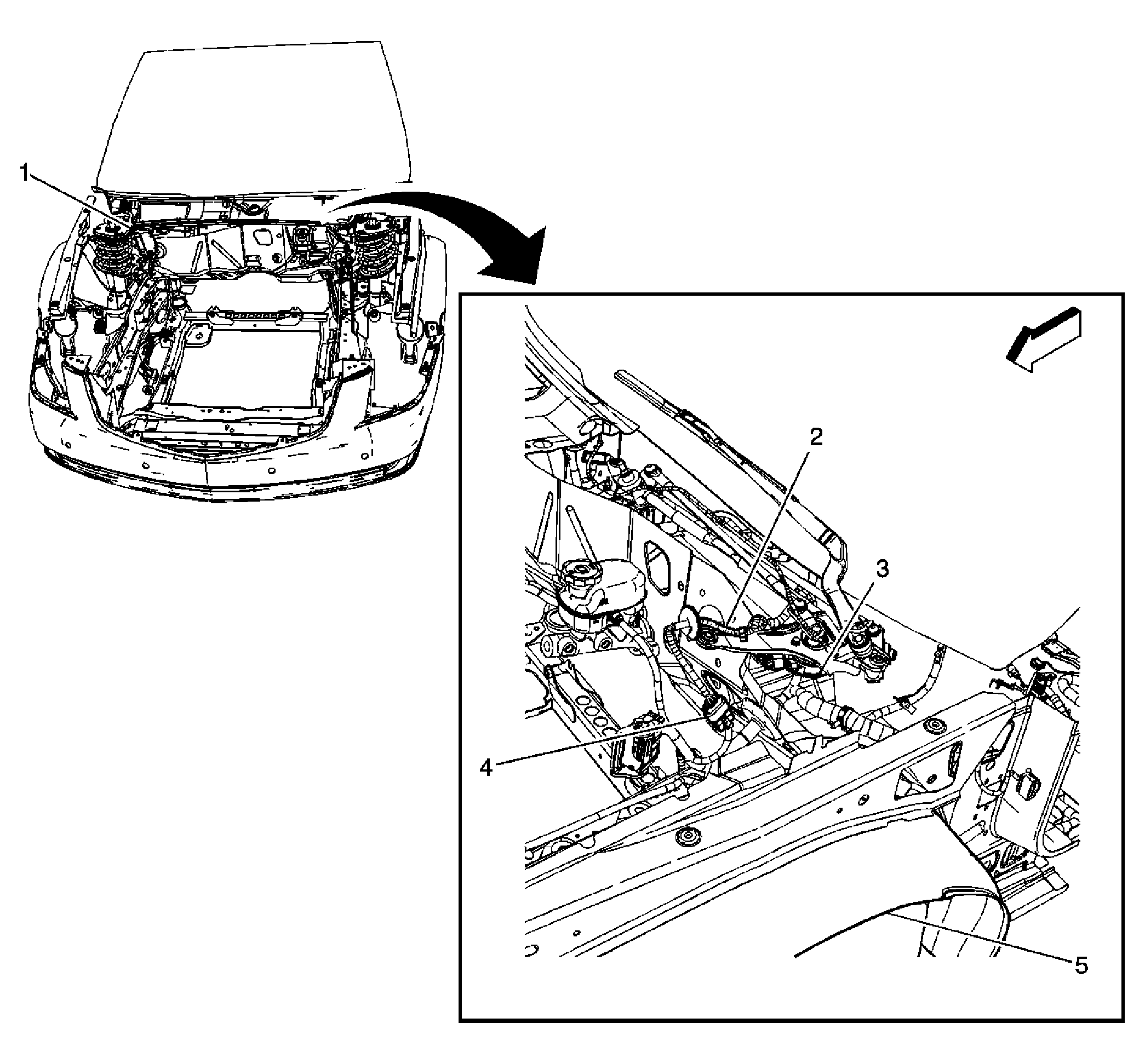

Fig 4: Rear of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Heated Washer Fluid Module
2	Windshield Wiper Motor Jumper Harness
3	Windshield Wiper/Washer Motor
4	C100 Wiper Motor Jumper Harness to Body Harness
5	LH Wheel Well
