Power and Grounding Component Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

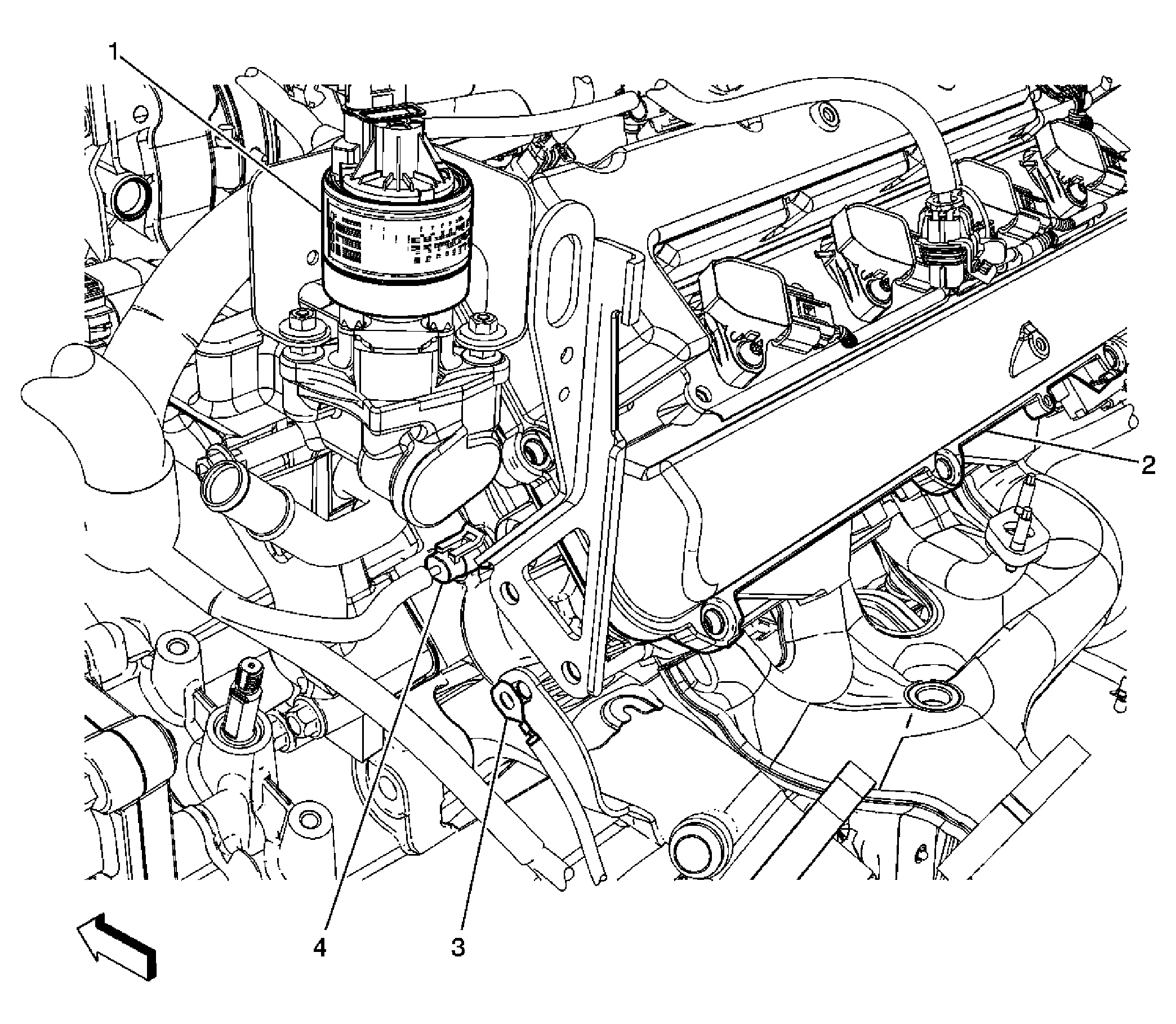

Fig 1: View Near Rear Cylinder Head (LD8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Valve Cover
3	G100
4	Engine Coolant Temperature (ECT) Sensor

Fig 2: Starter & Generator Harnesses Routing Views

Callout	Component Name
1	Valve Cover
2	C161
3	Starter
4	Generator Terminal
5	Generator Inline Fuse (V4U)

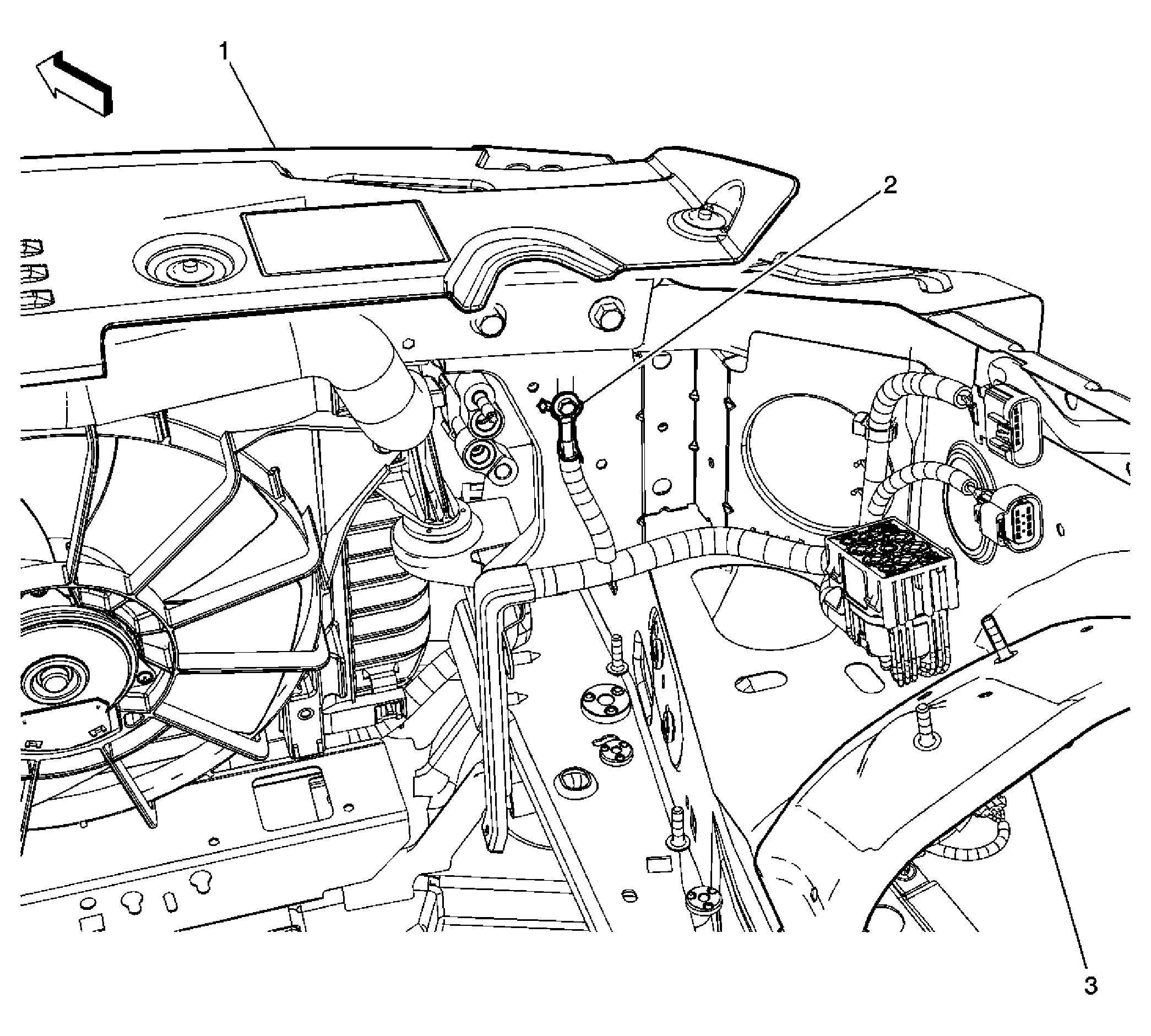

Fig 3: G104

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Radiator Trim
2	G104
3	RF Wheel Panel

Fig 4: View Of Left Side Of Engine (4.6L)

Callout	Component Name
1	Engine - 4.6L
2	Engine Oil Level Switch (06)
3	A/C Compressor
4	Generator
5	G110

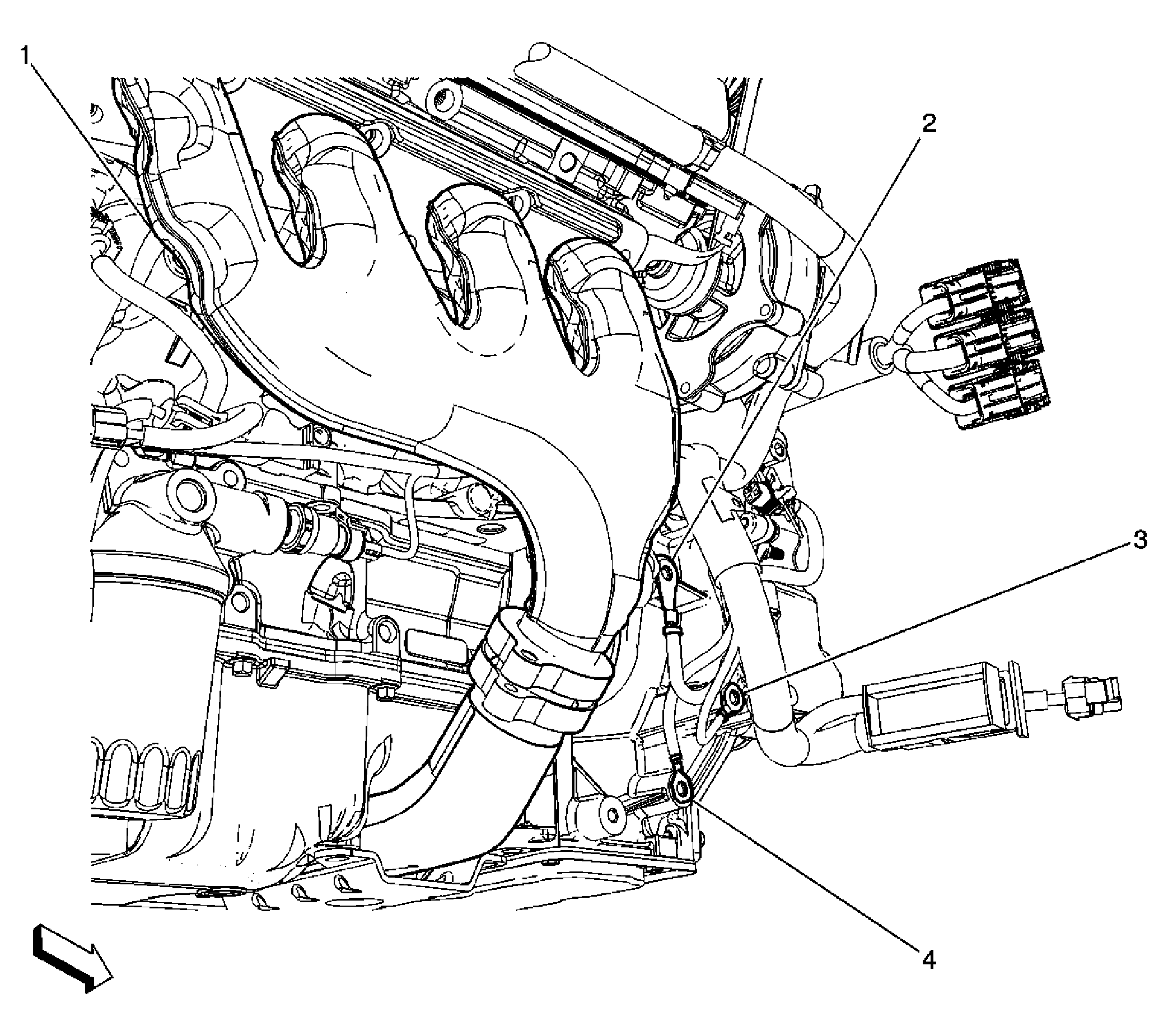

Fig 5: Identifying G112, G114 & G115 (LD8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Manifold
2	G114
3	G112
4	G115

Fig 6: Left Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	Front Fascia
3	Inflatable Restraint Front End Discriminating Sensor - Left
4	Inflatable Restraint Front End Discriminating Sensor - Right
5	Lower Front Tie Bar

Fig 7: FIGURE Engine Harness - Rear (L37/LD8)(c)

Callout	Component Name
1	Engine Control Module (ECM) C3
2	C111
3	S110
4	C138
5	S102
6	Intake Manifold
7	C161
8	C140
9	S116
10	S115
11	G100
12	G112
13	G115
14	G114
15	S113
16	S114
17	Electronic Brake Control Module (EBCM) Connector
18	C175
19	Engine Control Module (ECM) C2
20	Engine Control Module (ECM) C1

Fig 8: Steering Column Components

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Traction Control Switch (AV8)
3	Column Shifter Shift Lock Control Solenoid (AV8)
4	Ignition Key Alarm Switch
5	Theft Deterrent Module (TDM)
6	Ignition Switch
7	Inflatable Restraint Steering Wheel Module Coil
8	Steering Angle Sensor (JL4)
9	Telescoping Actuator (N37)
10	Tilt Actuator (N37)
11	Tilt/Telescope Switch (N37)

Fig 9: Steering Column Inlines

Callout	Component Name
1	Ignition Switch
2	C205
3	C207

Fig 10: Passenger - LR Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G306
2	Inflatable Restraint Roof Rail Module - Left
3	C321 Body Harness to Headliner Harness
4	Traffic Information Receiver
5	C445 Body Harness to Rear Shelf Harness
6	C313 Body Harness to LR Seat Harness
7	Splice Pack SP300
8	G301
9	Fuse Block - Rear
10	Audio Amplifier

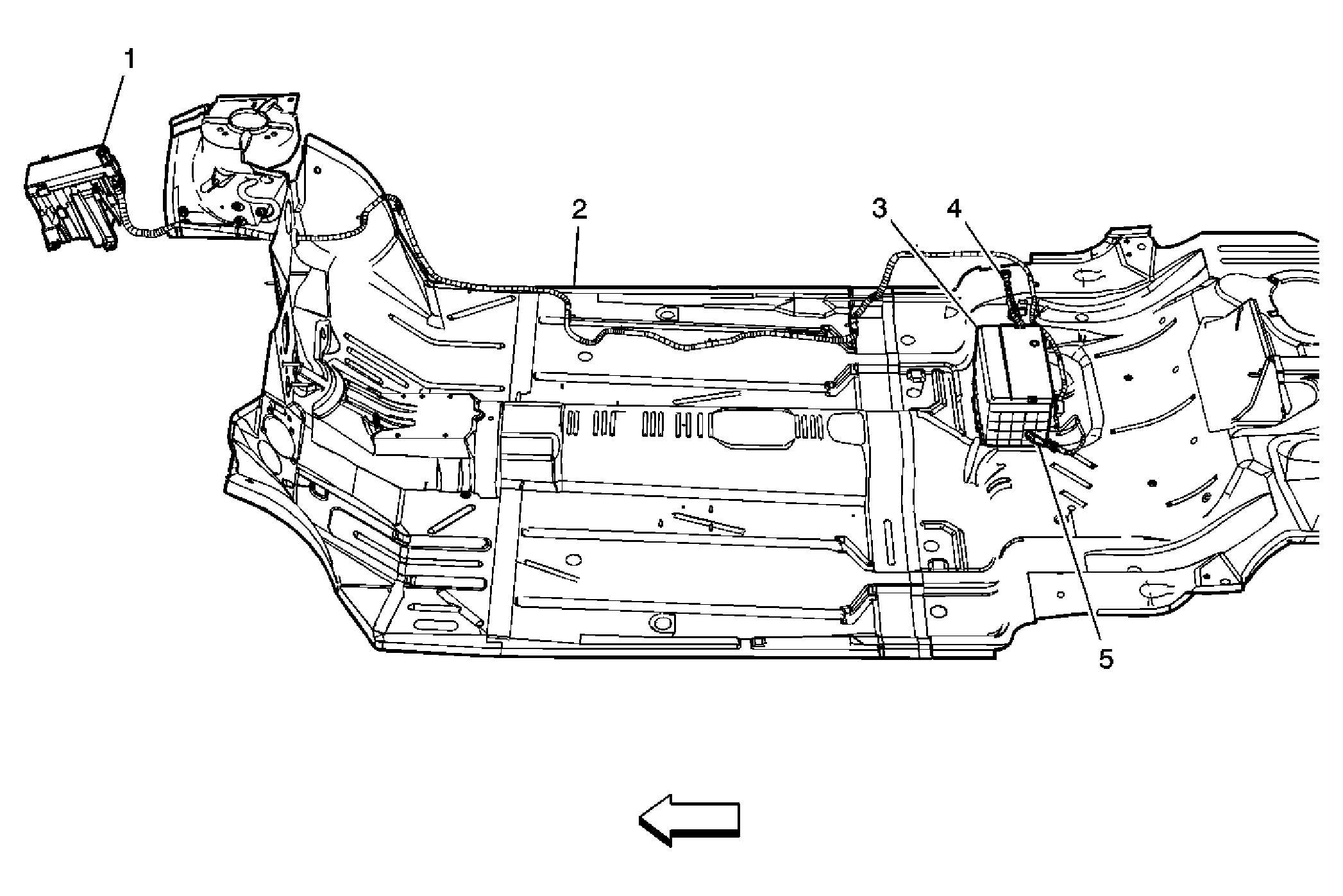

Fig 11: Under Passenger Seat - RR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Harness
2	G303
3	Battery Current Sensor
4	C124 Negative Battery Cable to Body Harness
5	Rear Seat Back Cushion
6	Battery Positive Cable
7	Fuse Block - Rear
8	Battery
9	Negative Battery Cable

Fig 12: FIGURE Battery Cable Harness(c)

Callout	Component Name
1	G306
2	Inflatable Restraint Roof Rail Module - Left
3	C321 Body Harness to Headliner Harness
4	Traffic Information Receiver
5	C445 Body Harness to Rear Shelf Harness
6	C313 Body Harness to LR Seat Harness
7	Splice Pack SP300
8	G301
9	Fuse Block - Rear
10	Audio Amplifier

Fig 13: Under Passenger Seat - RR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Floor Panel
3	Battery
4	G303
5	Fuse Block - Rear Terminal Connector

Fig 14: Body Harness - Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C206
2	C200
3	S377
4	S376
5	S375
6	C301
7	C325
8	C326
9	S329
10	S395
11	C314
12	S343
13	C302
14	G304
15	G302
16	S370
17	C341(AV8)
18	S336 (06)
19	S301
20	C303
21	S350
22	G305
23	G300
24	C315
25	S378
26	S379
27	C300
28	C202
29	C205
30	C201
31	C316
32	C340 (AQ9)

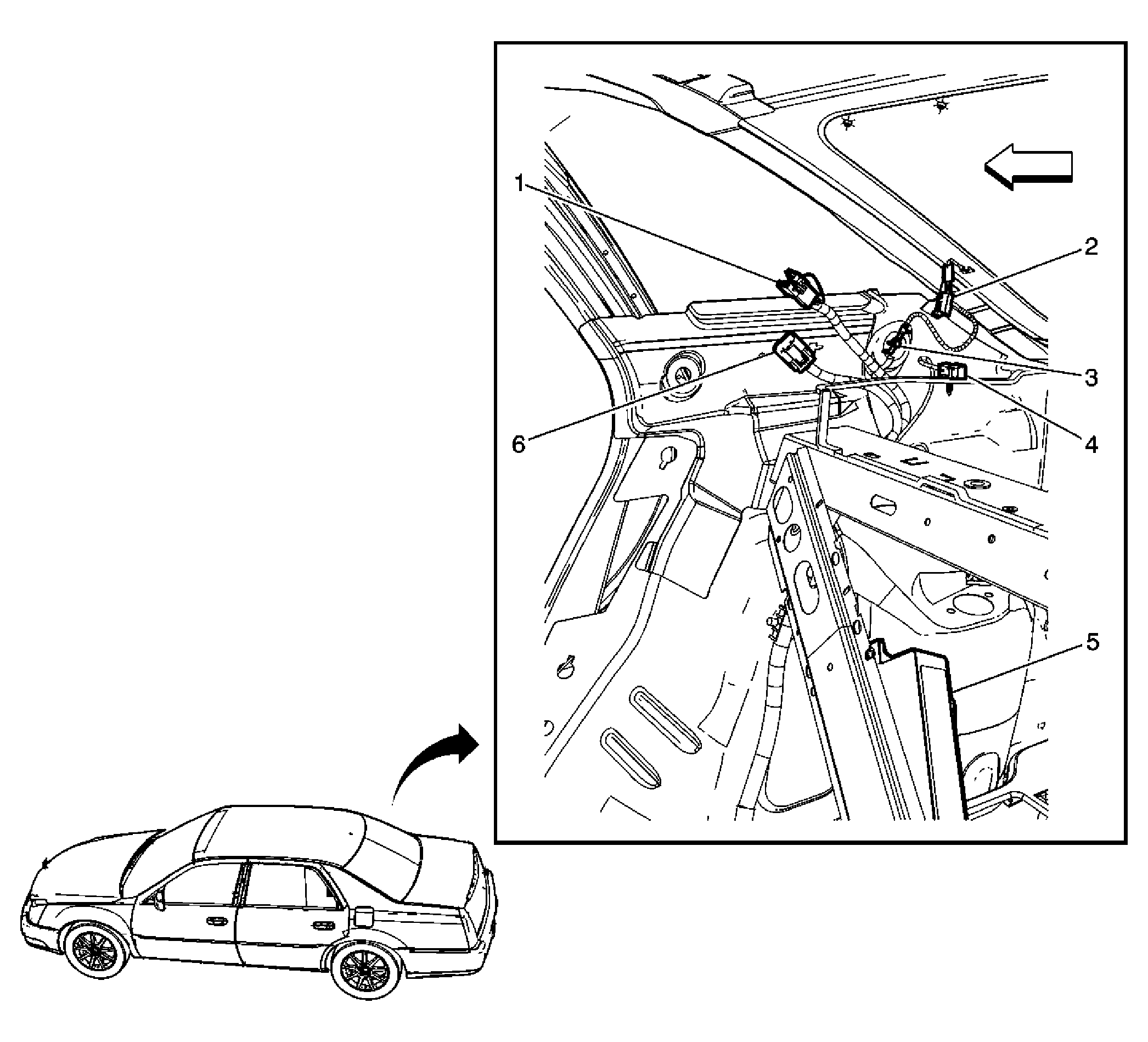

Fig 15: Above Quarter Panel - RR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G307
2	Rear Seat Back Body Panel

Fig 16: Driver Seat Area Components (Body Harness)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C315 Body Harness to Driver Seat Harness
2	G300
3	Inflatable Restraint Side Impact Module - Left Connector
4	G305
5	Yaw and Lateral Acceleration Sensor (JL4)
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	Inflatable Restraint Side Impact Sensor - Left
8	Seat Belt Pretensioner - LF
9	C-Pillar
10	Inflatable Restraint Roof Rail Module - Left (AY0)

Fig 17: Quarter Panel - RR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Suspension Control (ESC) Module (F55)
2	C494 Body Harness to Rear Fascia Harness (UFR)
3	G403
4	Front and Rear Object Alarm Module (UFR)

Fig 18: Body Harness - Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S326
2	S325
3	C124
4	S324
5	C397
6	C395
7	C494
8	C309
9	C499
10	G403
11	C498
12	G402
13	G306
14	C321
15	S366
16	C445
17	S365
18	S372
19	C313
20	SP300
21	G301
22	S374
23	Fuse Block - Rear
24	C323
25	S317
26	S380
27	S373
28	S337
