Harness Routing Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Fascia and Forward Lamp Harnesses Routing Views - Domestic
GM1619131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Fascia
2 C113
3 S107
4 S120
5 S119
6 S117
7 G104
8 C192
9 C114
10 S125
11 C121
12 C120
13 Fuse Block - Underhood C1
14 S118
Fig 2: Front Fascia and Forward Lamp Harnesses Routing Views - Export
GM1644658Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Fascia
2 S120
3 S119
4 C192
5 G104
6 C114
7 Fuse Block - Underhood C1
8 C121
9 C120
10 S125
11 S124
12 S123
13 S117
14 S118
15 S107
16 S121
17 S122
18 S124 (Export)
Fig 3: View Of Left and Right C-Pillars Harnesses Routing Views
GM1860582Courtesy of GENERAL MOTORS CORP.
Calouts for Fig. 31

Callout Component Name
1 Inner Frame-Left
2 C321
3 C304 (AYO)
4 Inflatable Restraint Roof Rail Module - Left (AY0)
5 Inflatable Restraint Roof Rail Module - Right
6 C305 (AYO)
7 Inner Frame-Right

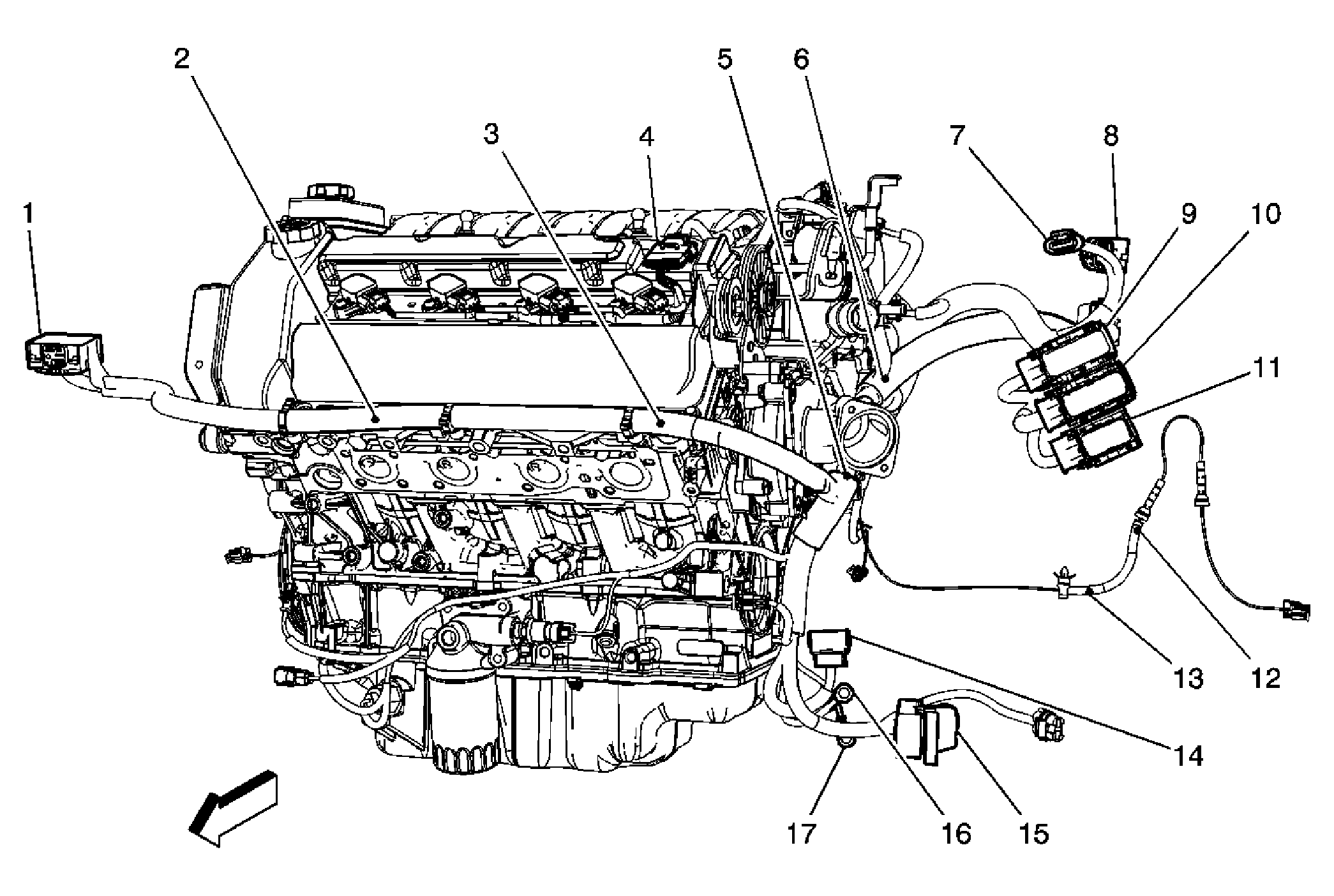

Fig 4: Engine Harnesses Routing Views - Front (L37/LD8)
GM1619134Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood C3
2 S111
3 S100
4 C139
5 S105
6 S106
7 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector
8 Transmission Control Module (TCM) C1 Connector
9 Engine Control Module (ECM) C3
10 Engine Control Module (ECM) C2
11 Engine Control Module (ECM) C1
12 S114
13 S113
14 C175
15 Electronic Brake Control Module (EBCM) Connector
16 G115
17 G114

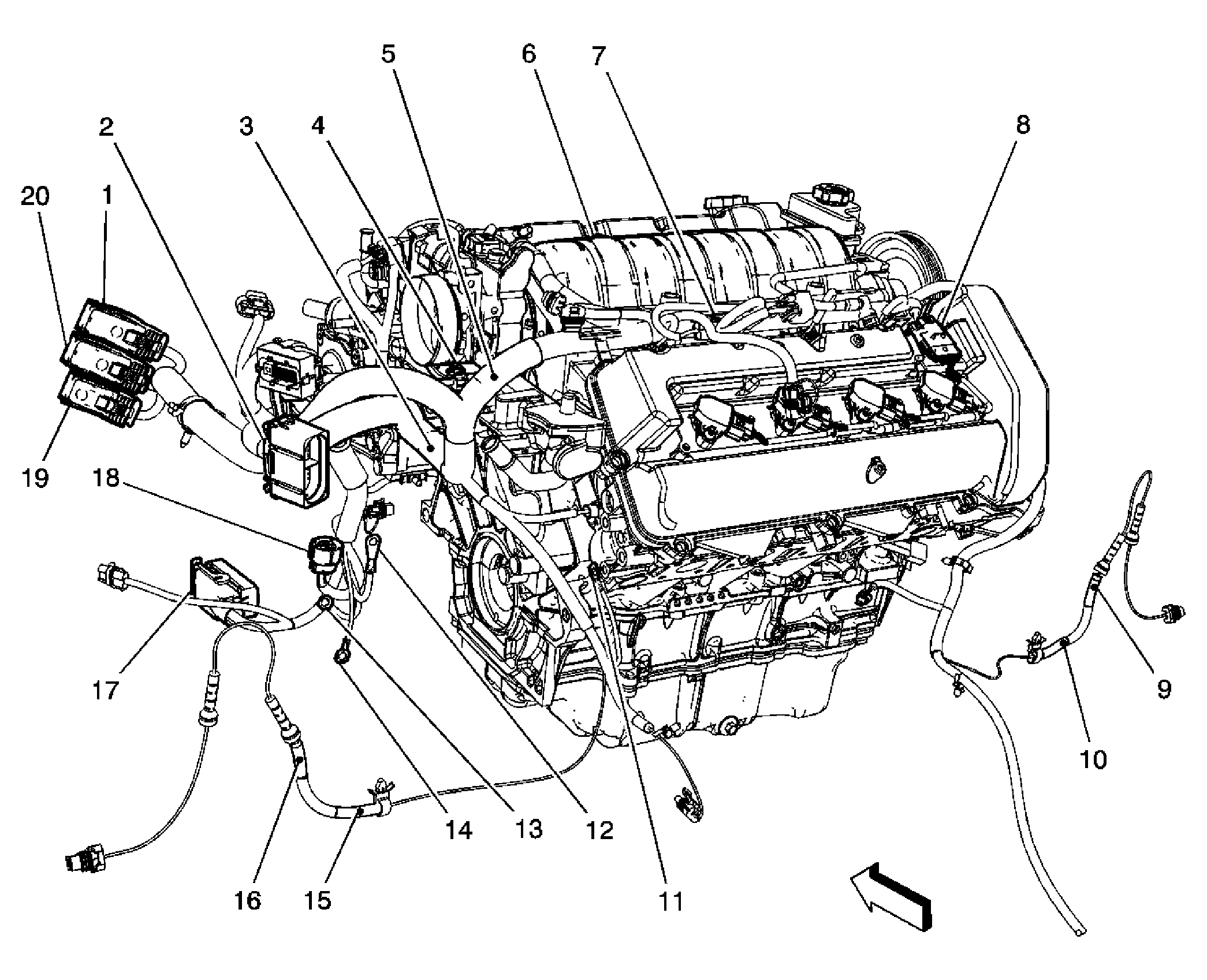

Fig 5: Engine Harnesses Routing Views - Rear (L37/LD8)
GM1619136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Control Module (ECM) C3
2 C111
3 S110
4 C138
5 S102
6 Intake Manifold
7 C161
8 C140
9 S116
10 S115
11 G100
12 G112
13 G115
14 G114
15 S113
16 S114
17 Electronic Brake Control Module (EBCM) Connector
18 C175
19 Engine Control Module (ECM) C2
20 Engine Control Module (ECM) C1

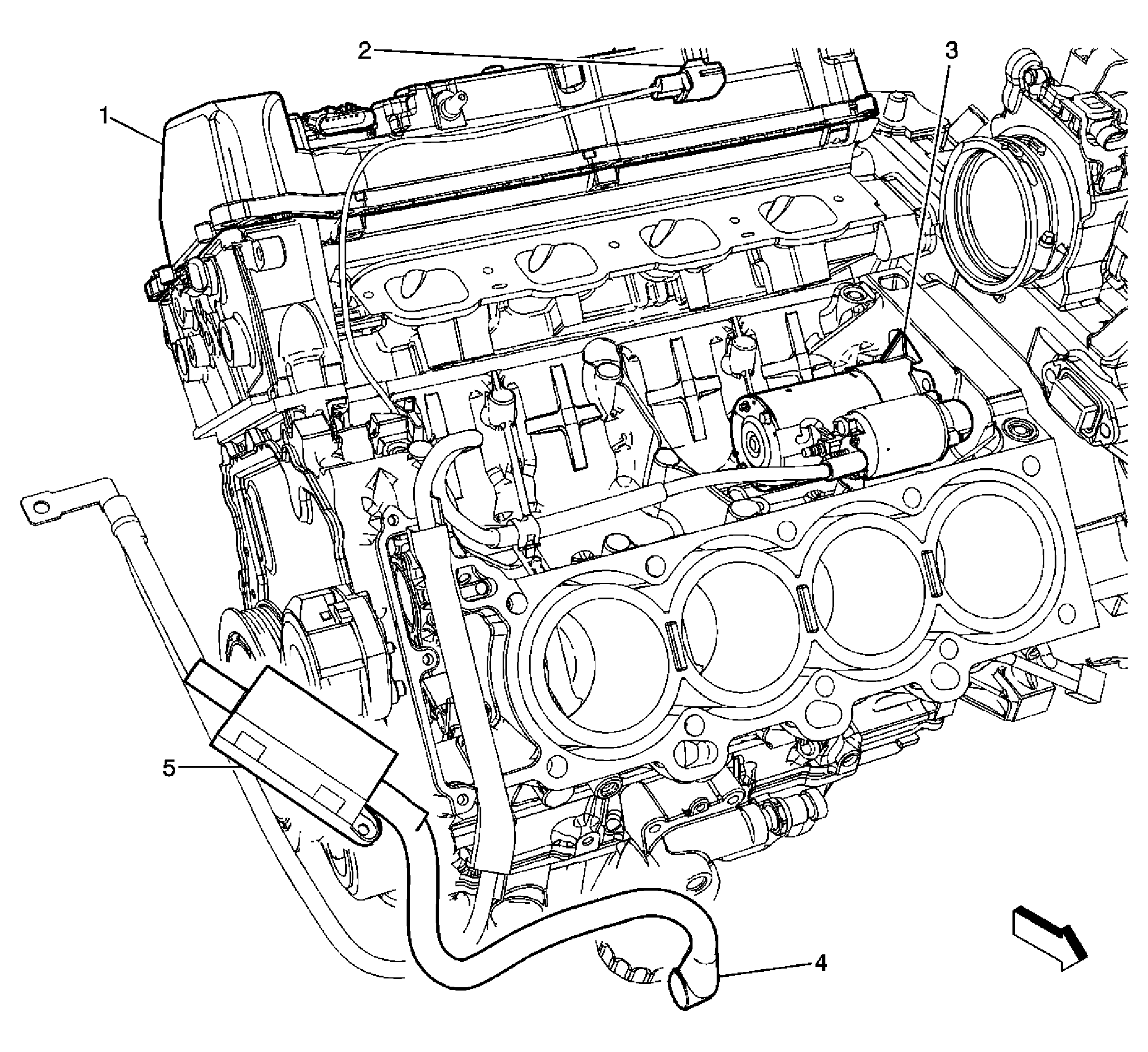

Fig 6: Starter & Generator Harnesses Routing Views
GM1619133Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Valve Cover
2 C161
3 Starter
4 Generator Terminal
5 Generator Inline Fuse (V4U)

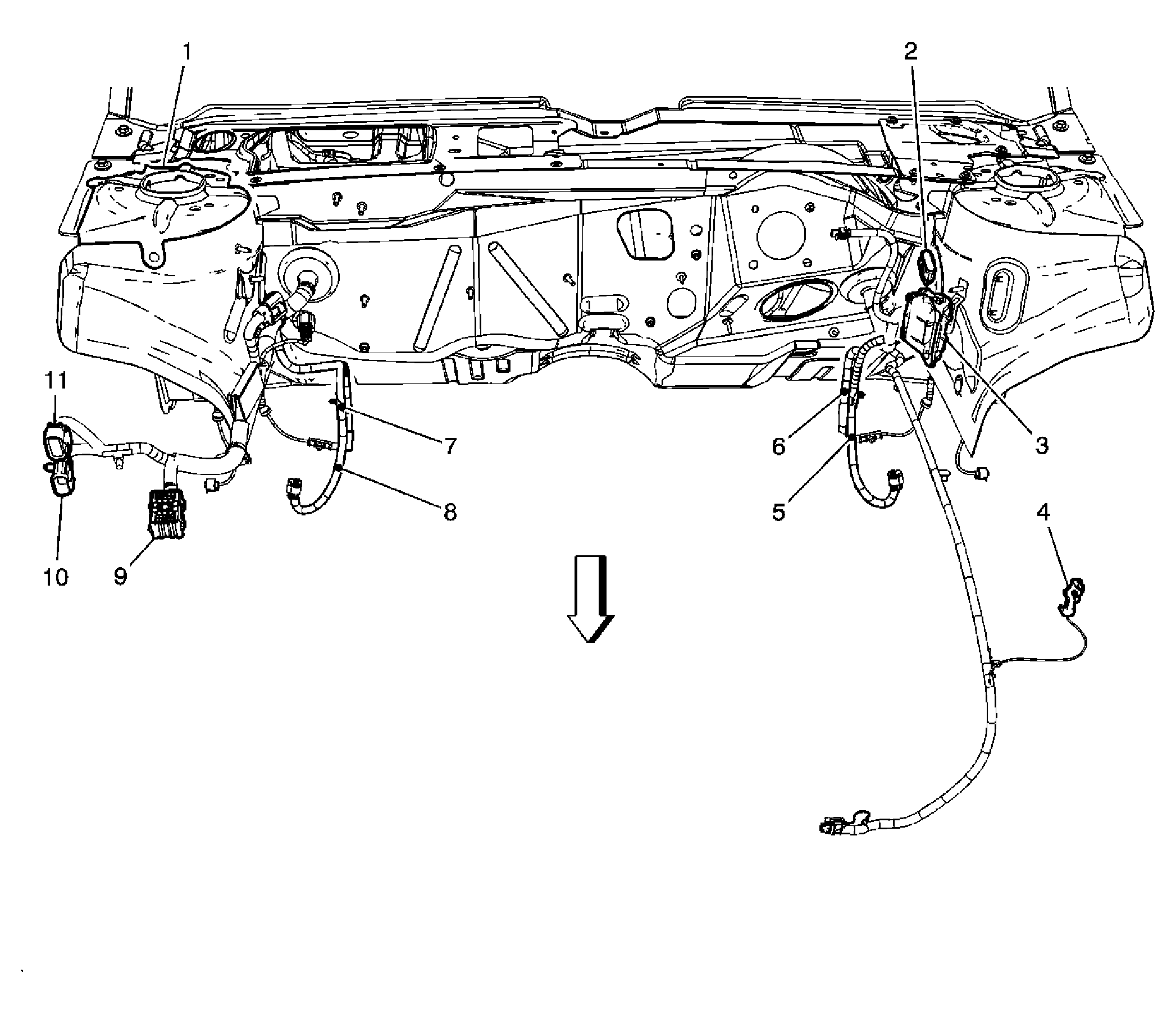

Fig 7: Body Harnesses Routing Views - Engine Compartment
GM1644654Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RF Strut Tower
2 C100
3 C111
4 G101
5 S126
6 S127
7 S128
8 S129
9 Fuse Block - Underhood C2
10 C120
11 C121

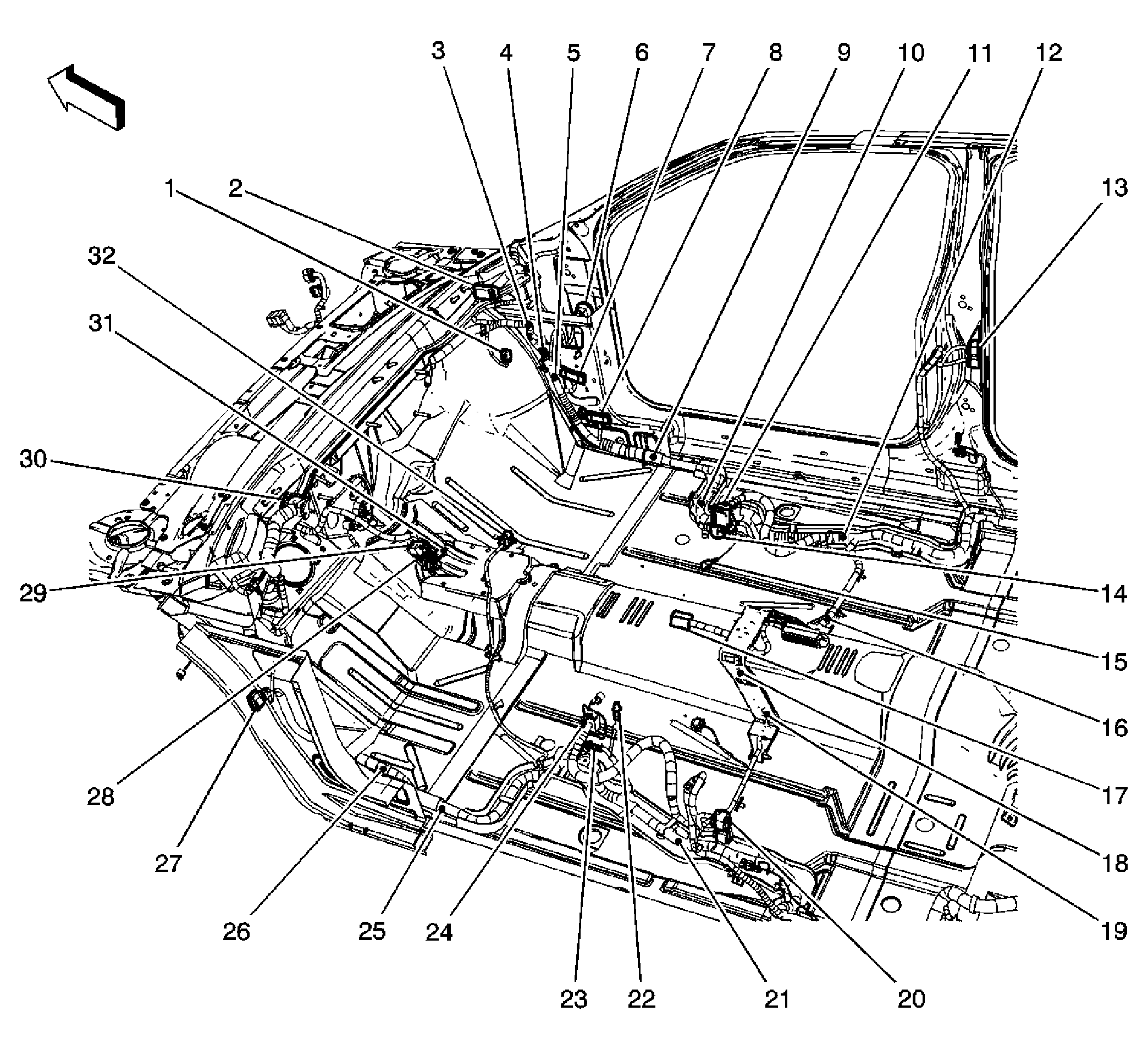

Fig 8: Body Harnesses Routing Views - Passenger Compartment
GM1619160Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C206
2 C200
3 S377
4 S376
5 S375
6 C301
7 C325
8 C326
9 S329
10 S395
11 C314
12 S343
13 C302
14 G304
15 G302
16 S370
17 C341(AV8)
18 S336 (06)
19 S301
20 C303
21 S350
22 G305
23 G300
24 C315
25 S378
26 S379
27 C300
28 C202
29 C205
30 C201
31 C316
32 C340 (AQ9)

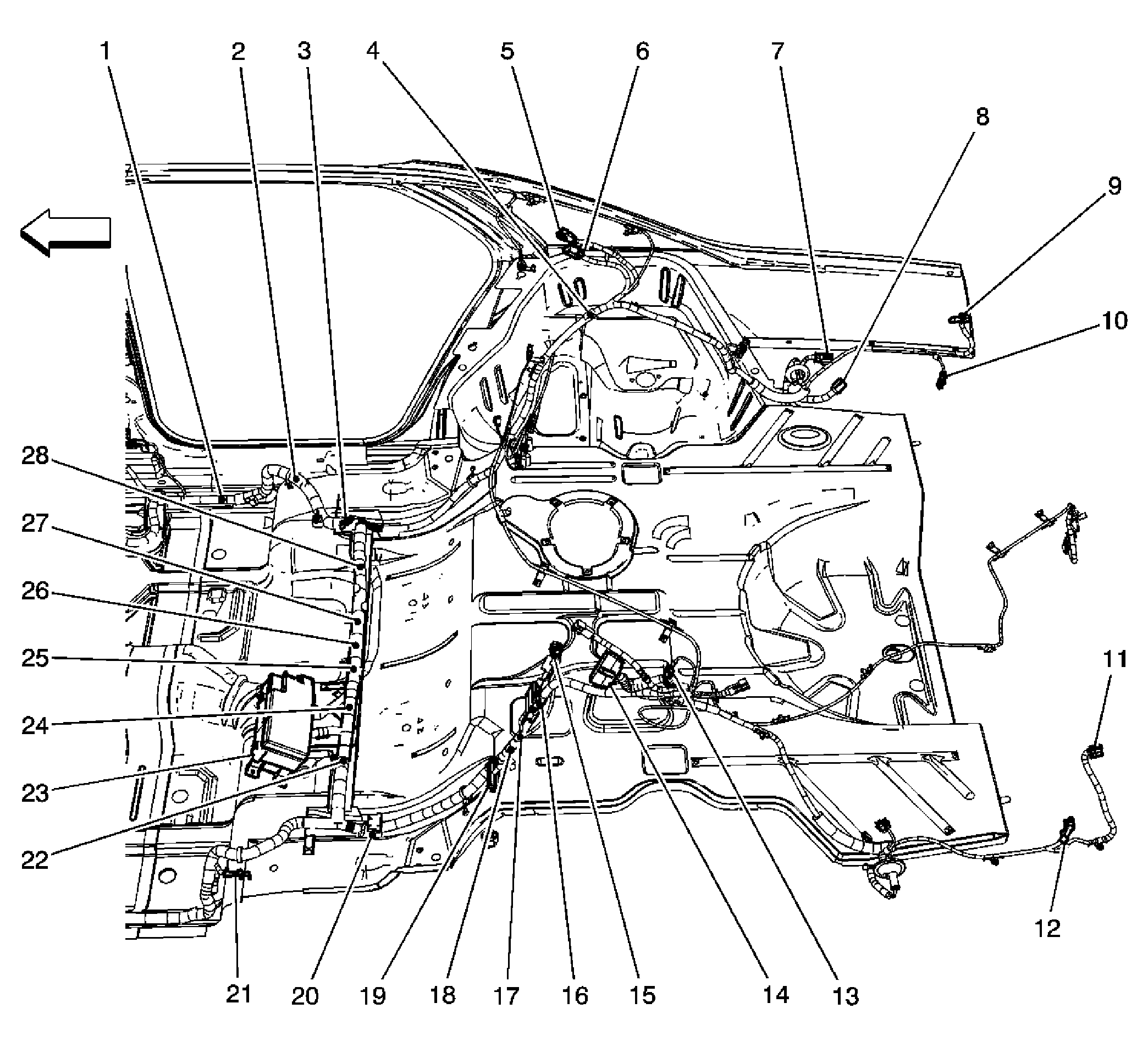

Fig 9: Body Harnesses Routing Views - Rear Compartment
GM1619161Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S326
2 S325
3 C124
4 S324
5 C397
6 C395
7 C494
8 C309
9 C499
10 G403
11 C498
12 G402
13 G306
14 C321
15 S366
16 C445
17 S365
18 S372
19 C313
20 SP300
21 G301
22 S374
23 Fuse Block - Rear
24 C323
25 S317
26 S380
27 S373
28 S337

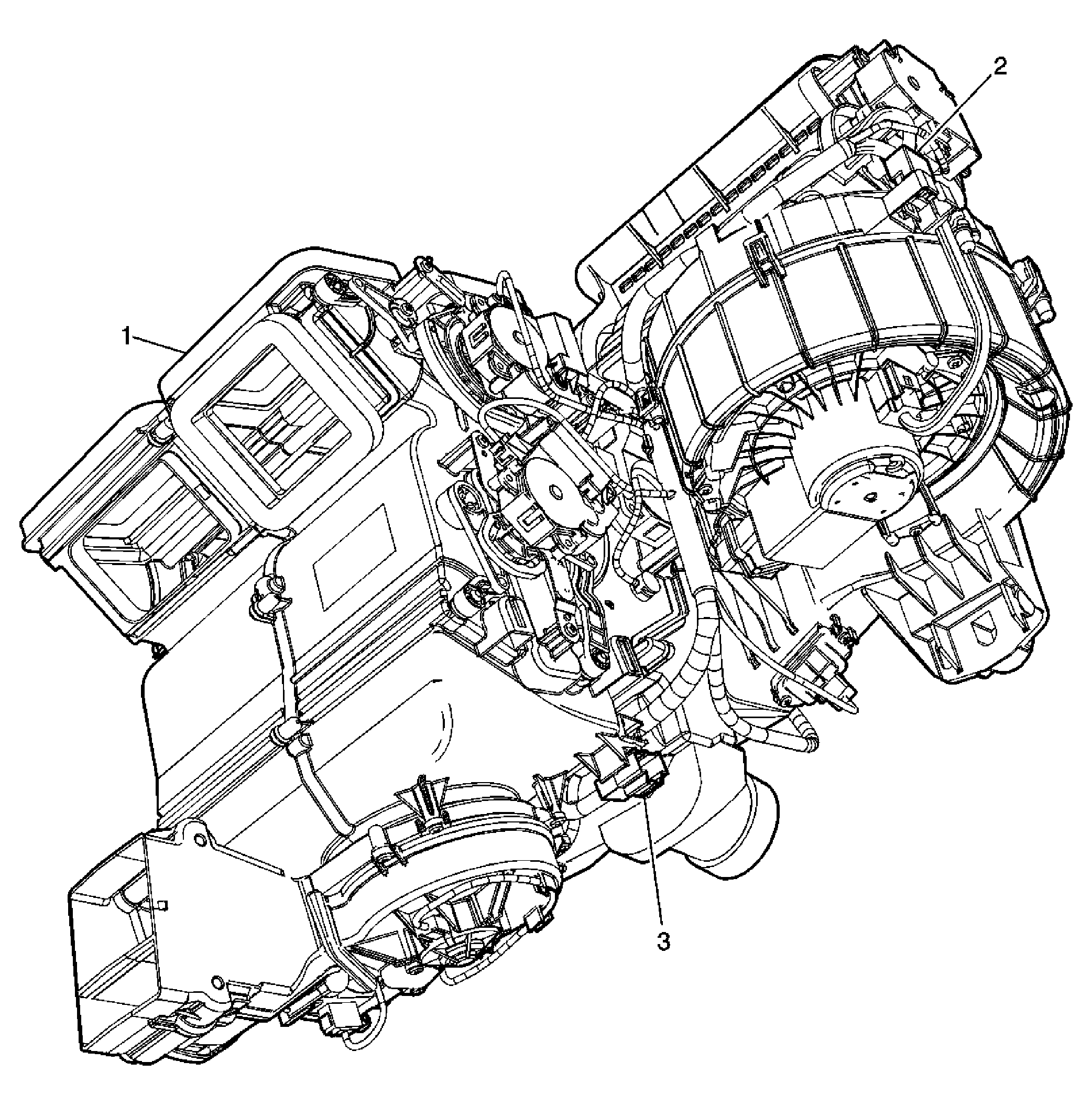

Fig 10: HVAC Module Harnesses Routing Views
GM1619138Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Module Assembly
2 C206
3 C202

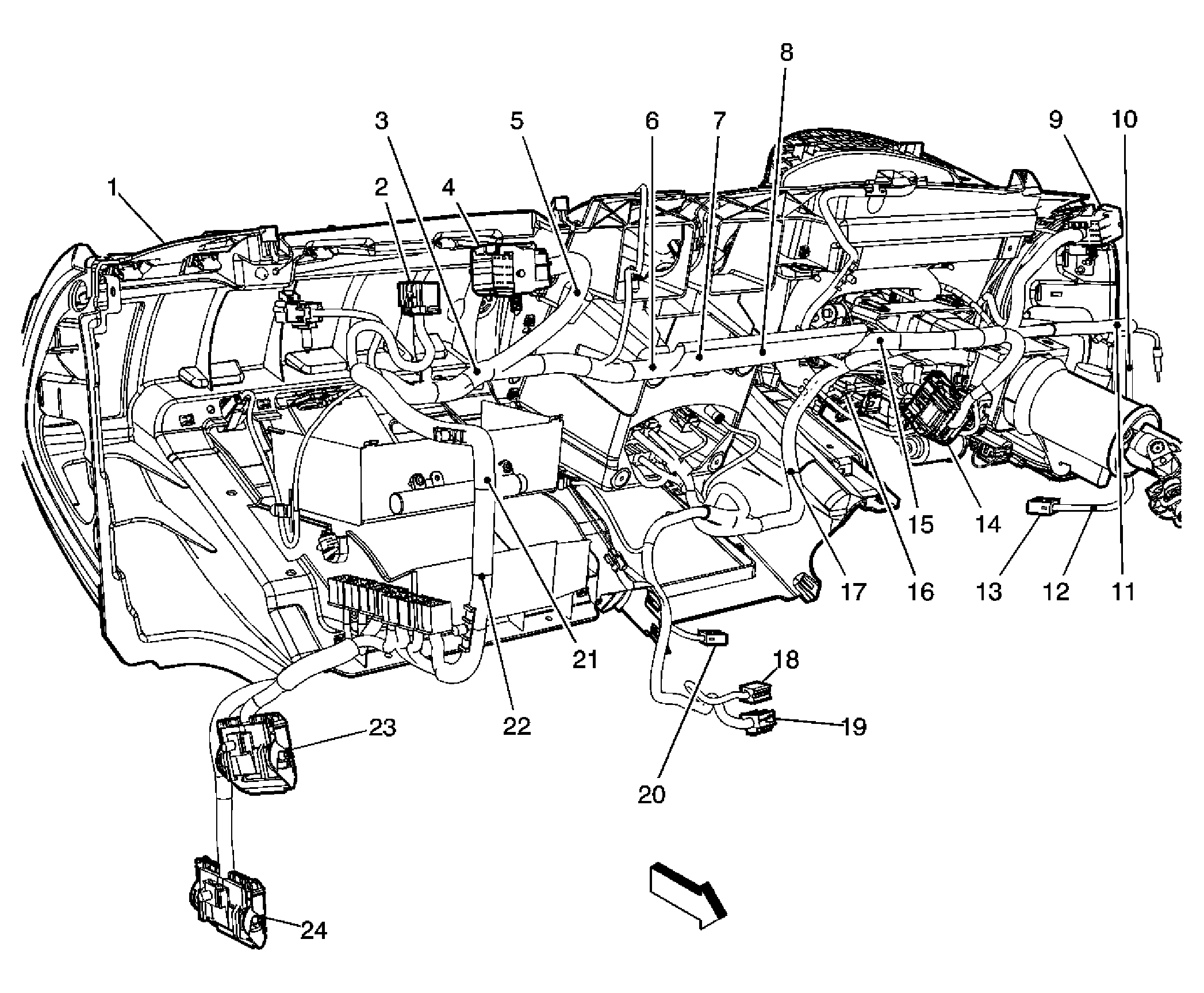

Fig 11: I/P Harnesses Routing Views - Behind the I/P Carrier
GM1619140Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Trim
2 C208
3 S206
4 C200
5 S222
6 S202
7 S212
8 S210
9 C201
10 S207
11 S223
12 S208
13 Data Link Connector (DLC)
14 C203
15 S200
16 C316
17 S213
18 C204
19 C202
20 C219
21 S211
22 S214
23 C325
24 C326

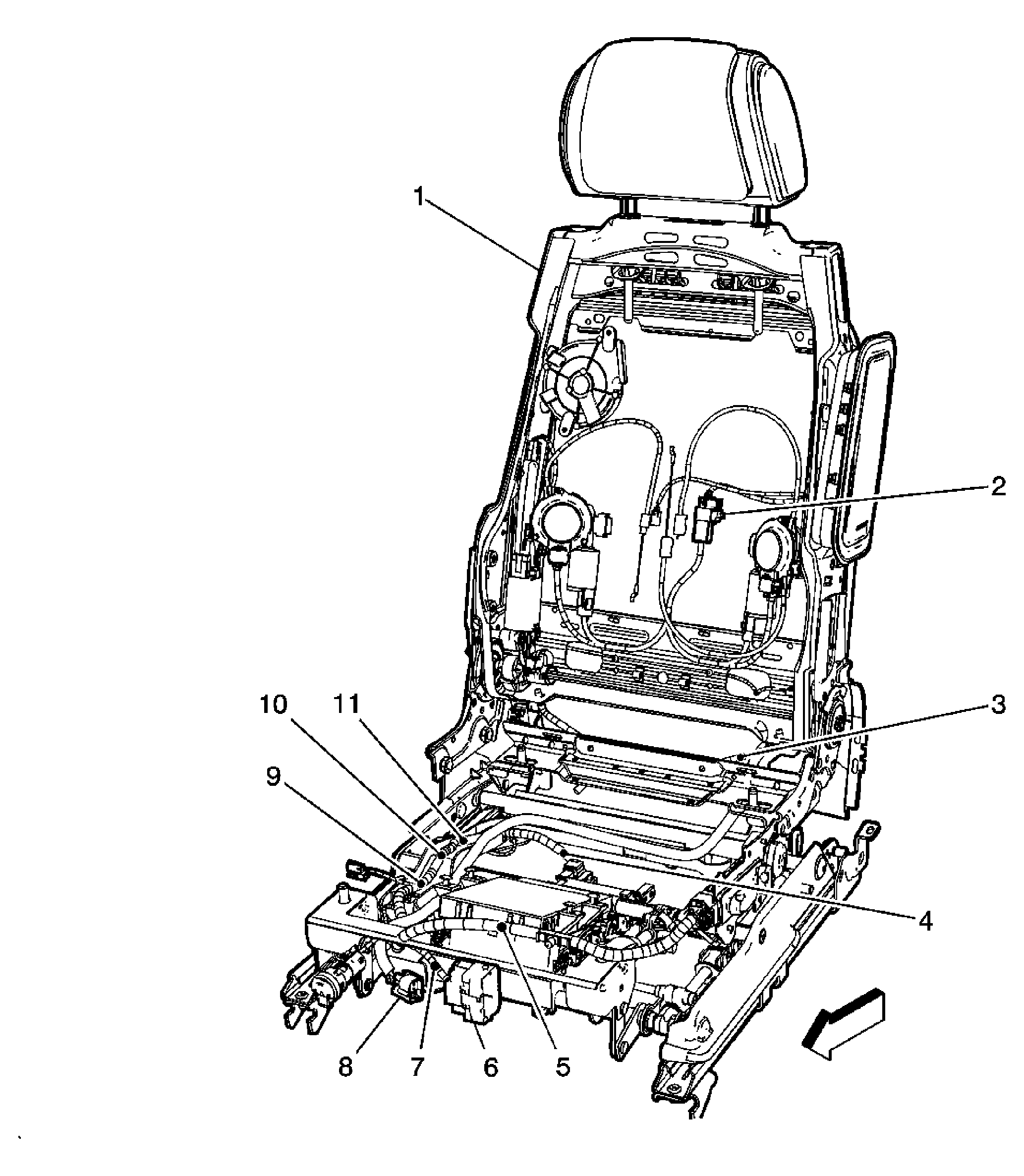

Fig 12: Drivers Seat Harnesses Routing Views
GM1619153Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Frame
2 Lumbar Assembly Connector
3 S351
4 S355
5 S349
6 C315
7 S347
8 C311
9 S352
10 S356
11 S371

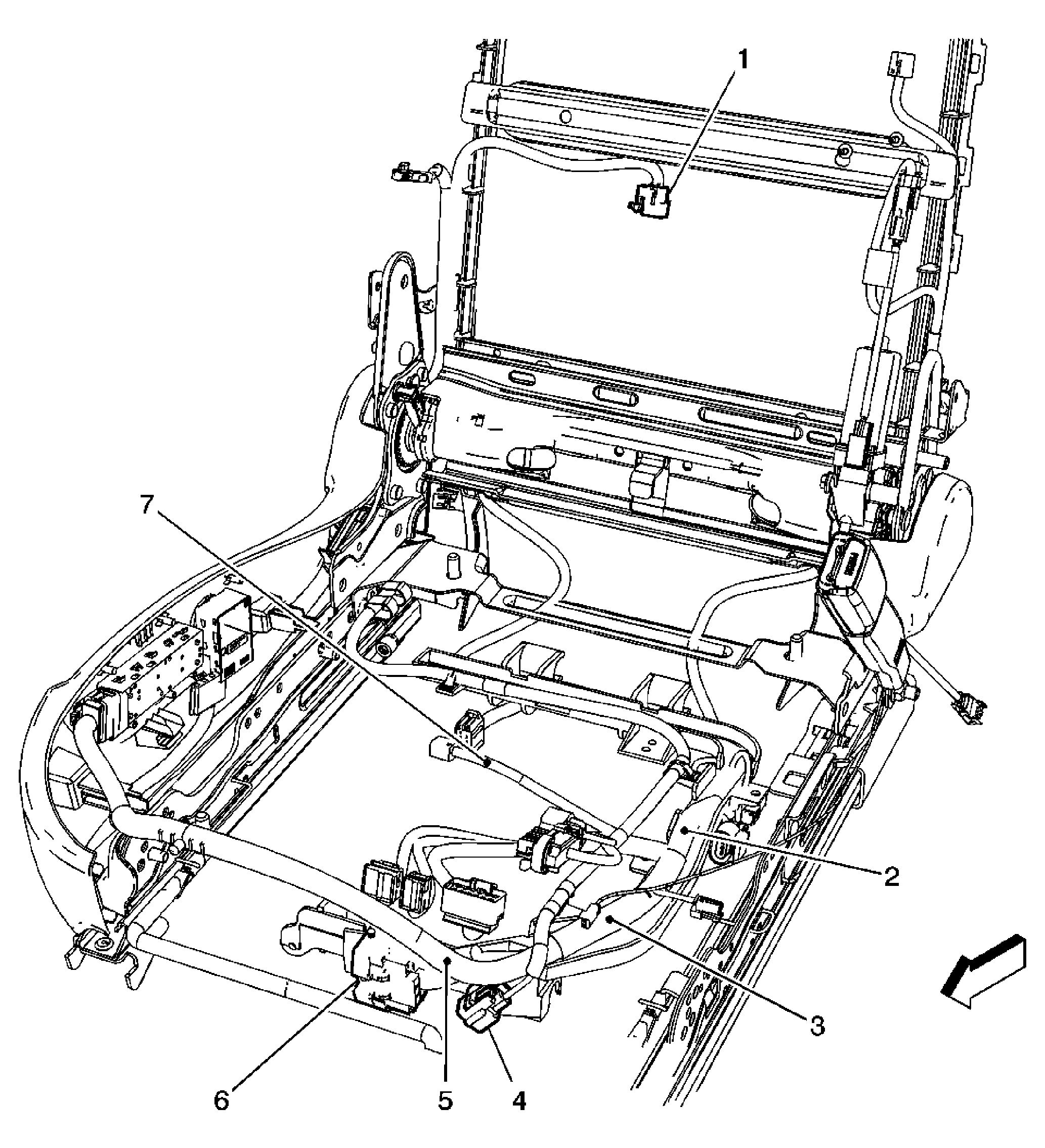

Fig 13: Passenger Seat Harnesses Routing Views
GM1619155Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Lumbar Motor Connector
2 S358
3 S306
4 C312
5 S348
6 C314
7 S357

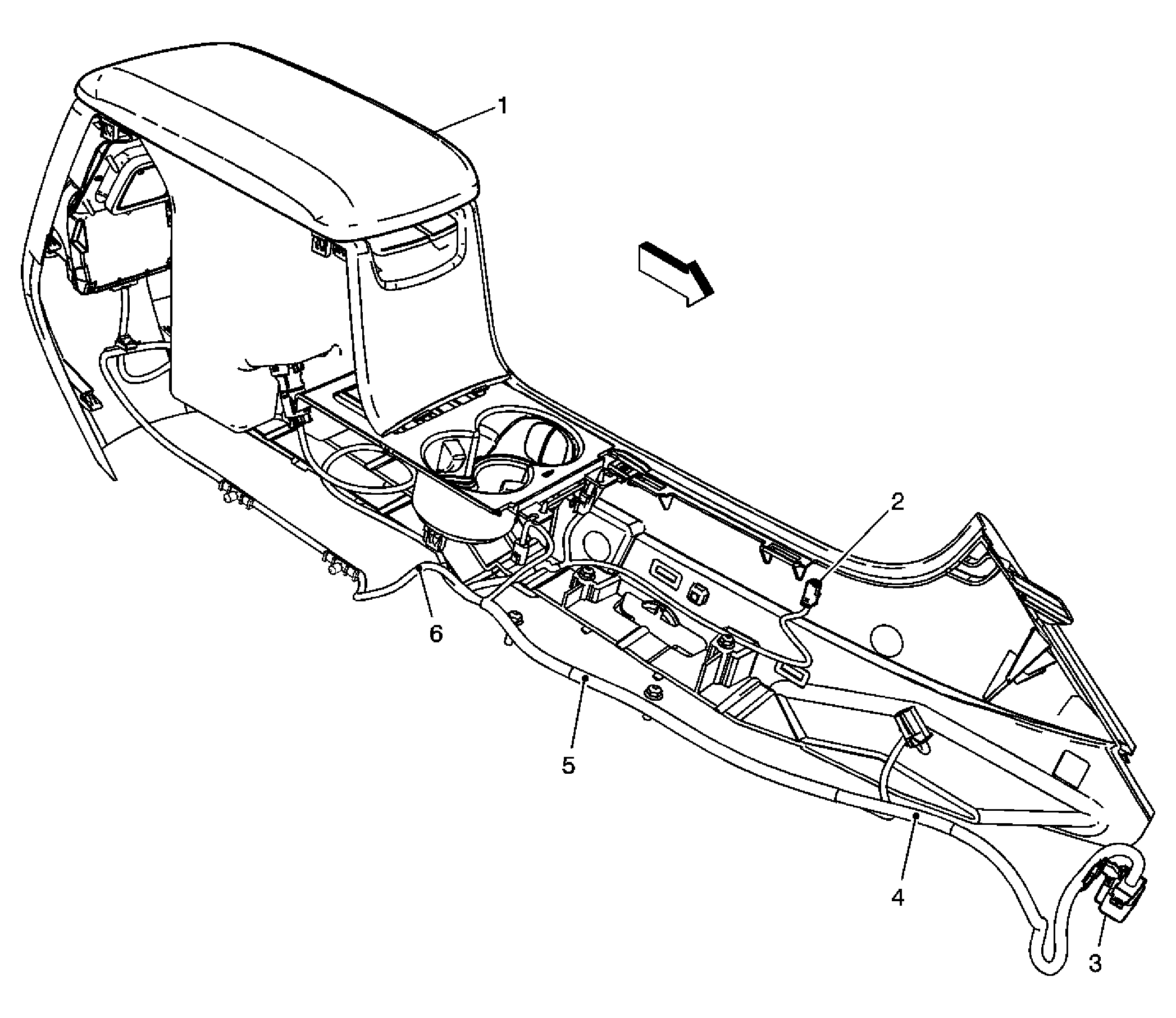

Fig 14: Console Harnesses Routing Views
GM1619158Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Arm Rest
2 Traction Control Switch Connector
3 C340
4 S369
5 S315
6 S307

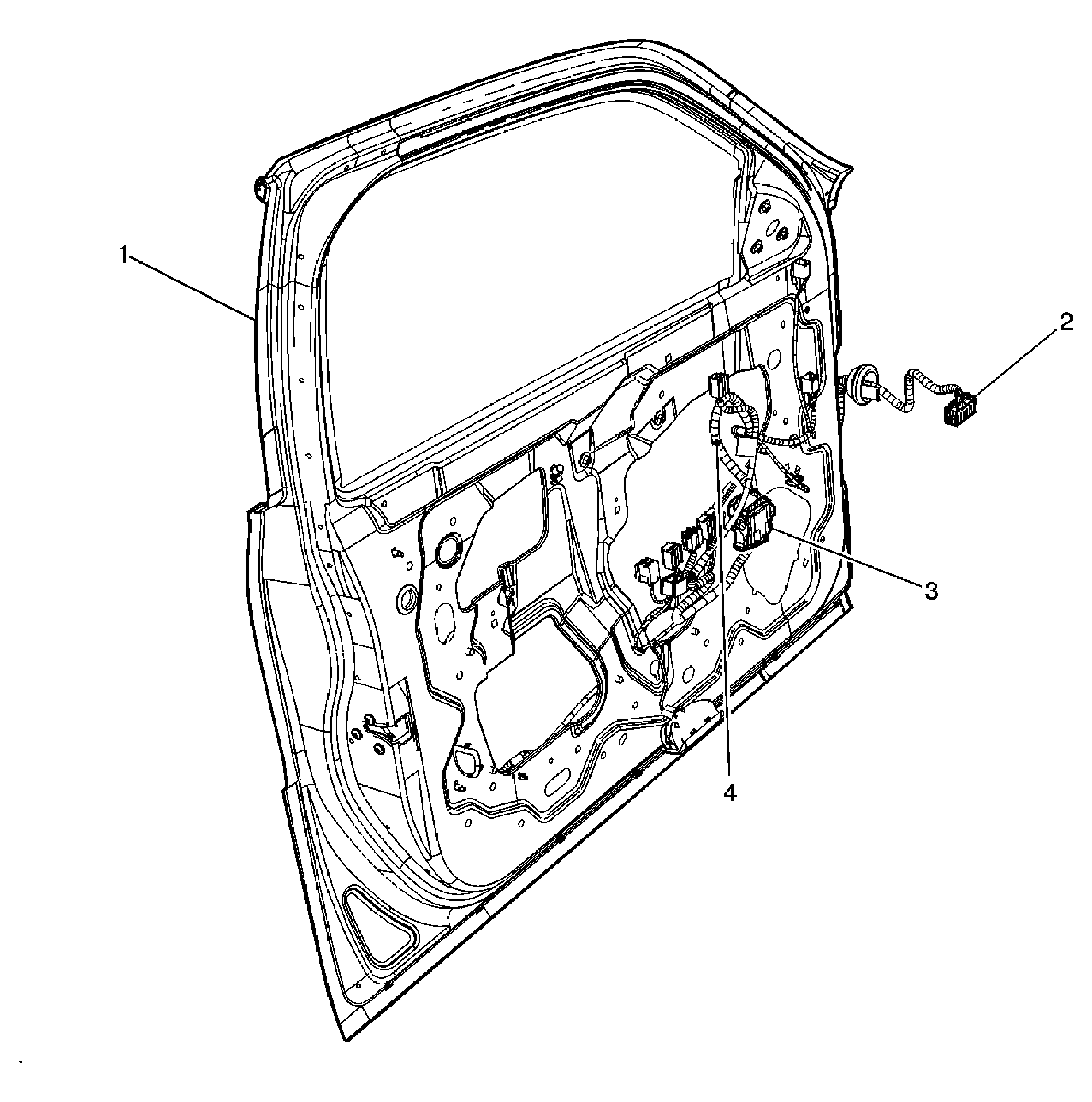

Fig 15: Driver Door Harnesses Routing Views
GM1619146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 C301
3 C501
4 S500

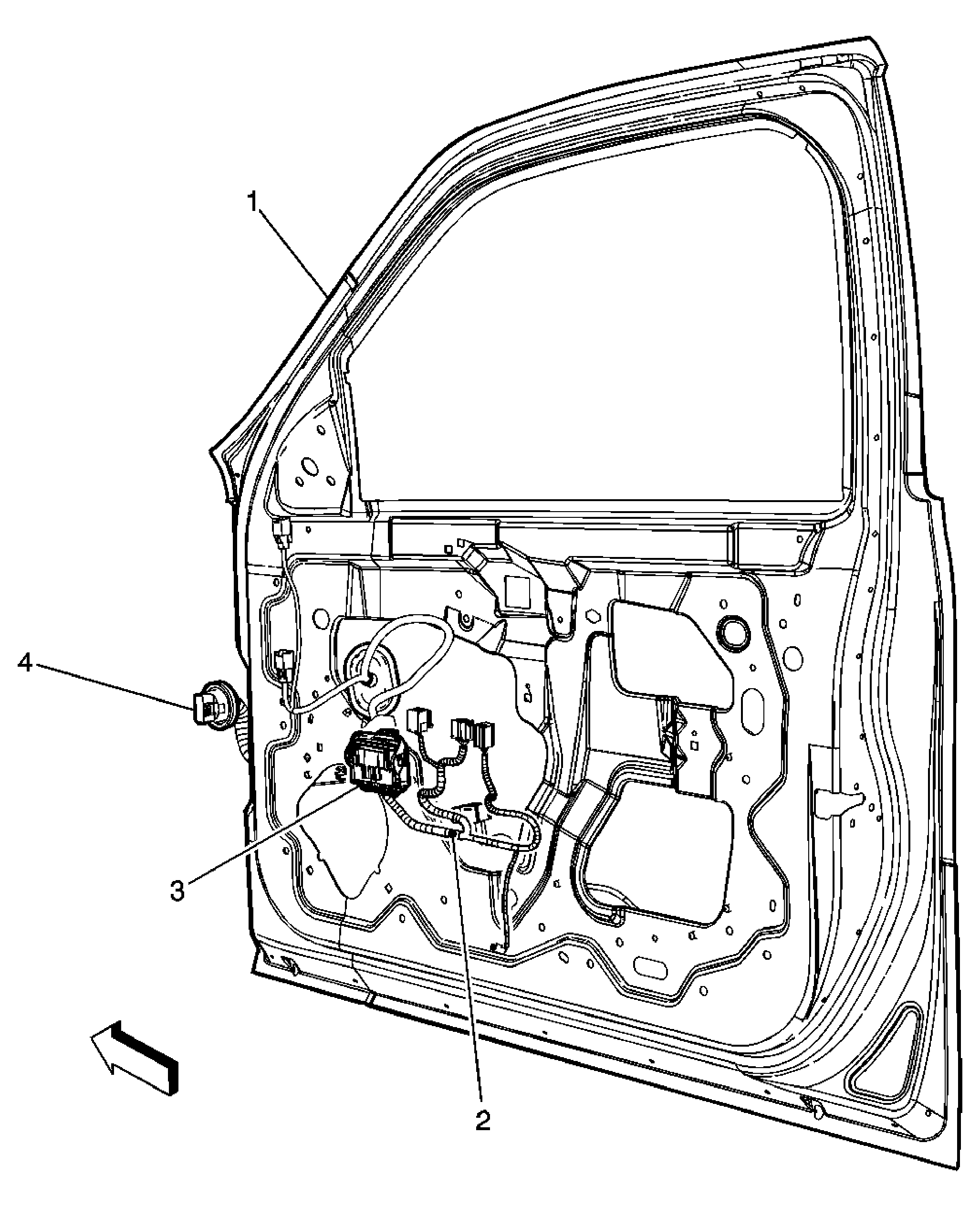

Fig 16: Passenger Door Harnesses Routing Views
GM1619148Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 S600
3 C601
4 C301

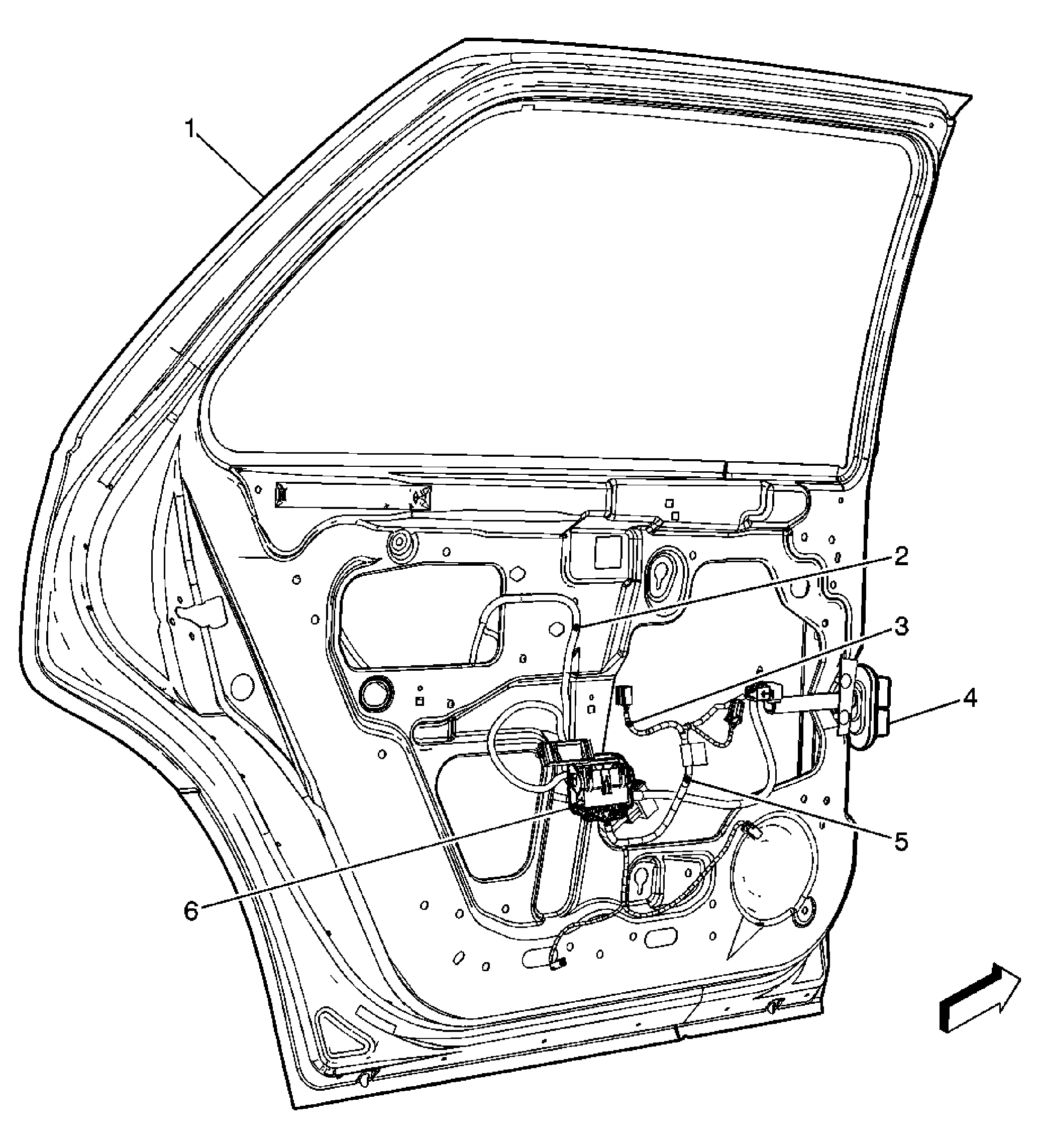

Fig 17: LR Door Harnesses Routing Views
GM1619172Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 S700
3 S702
4 C303
5 S701
6 C700

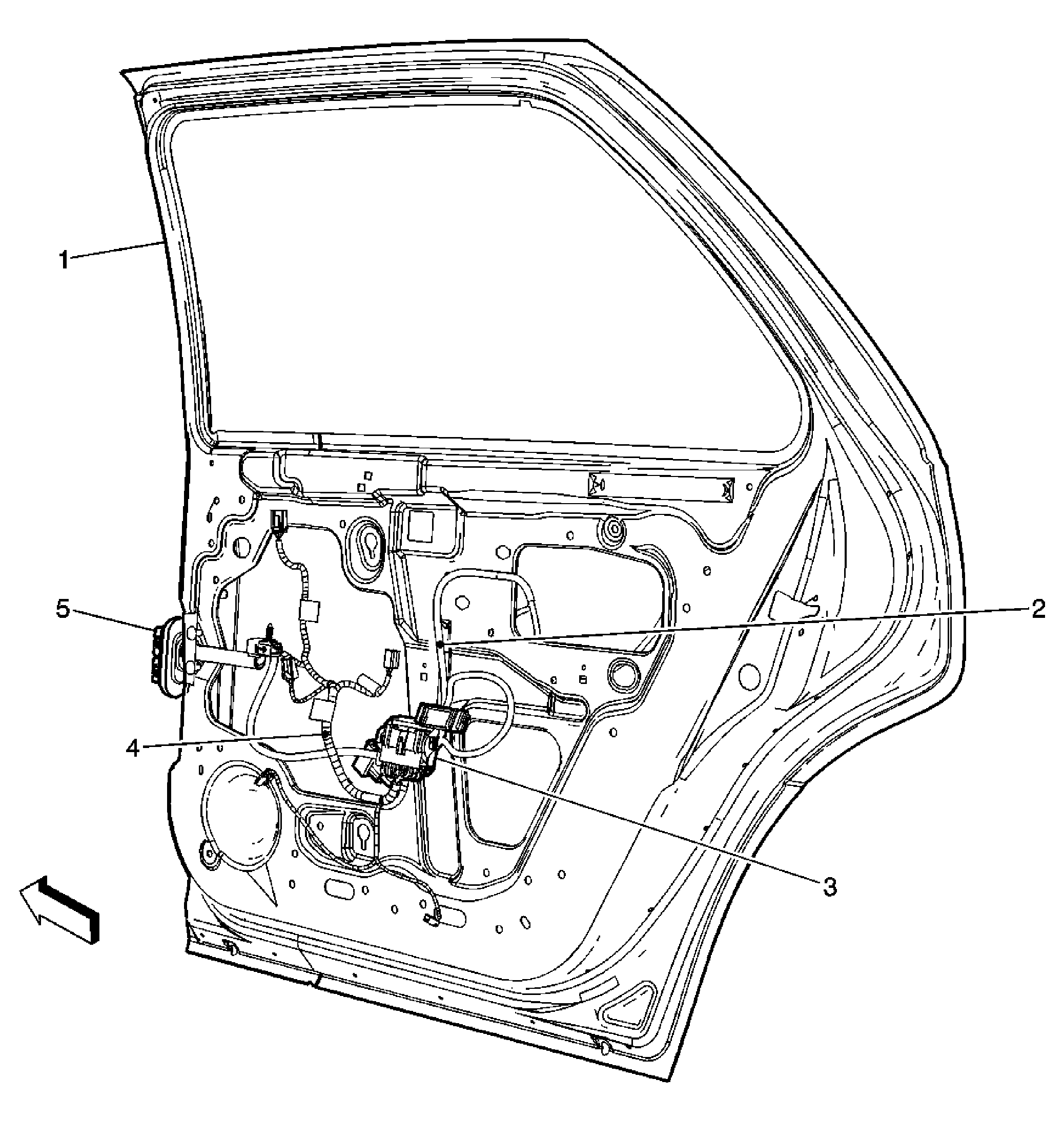

Fig 18: RR Door Harnesses Routing Views
GM1619164Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 S800
3 C800
4 S801
5 C303

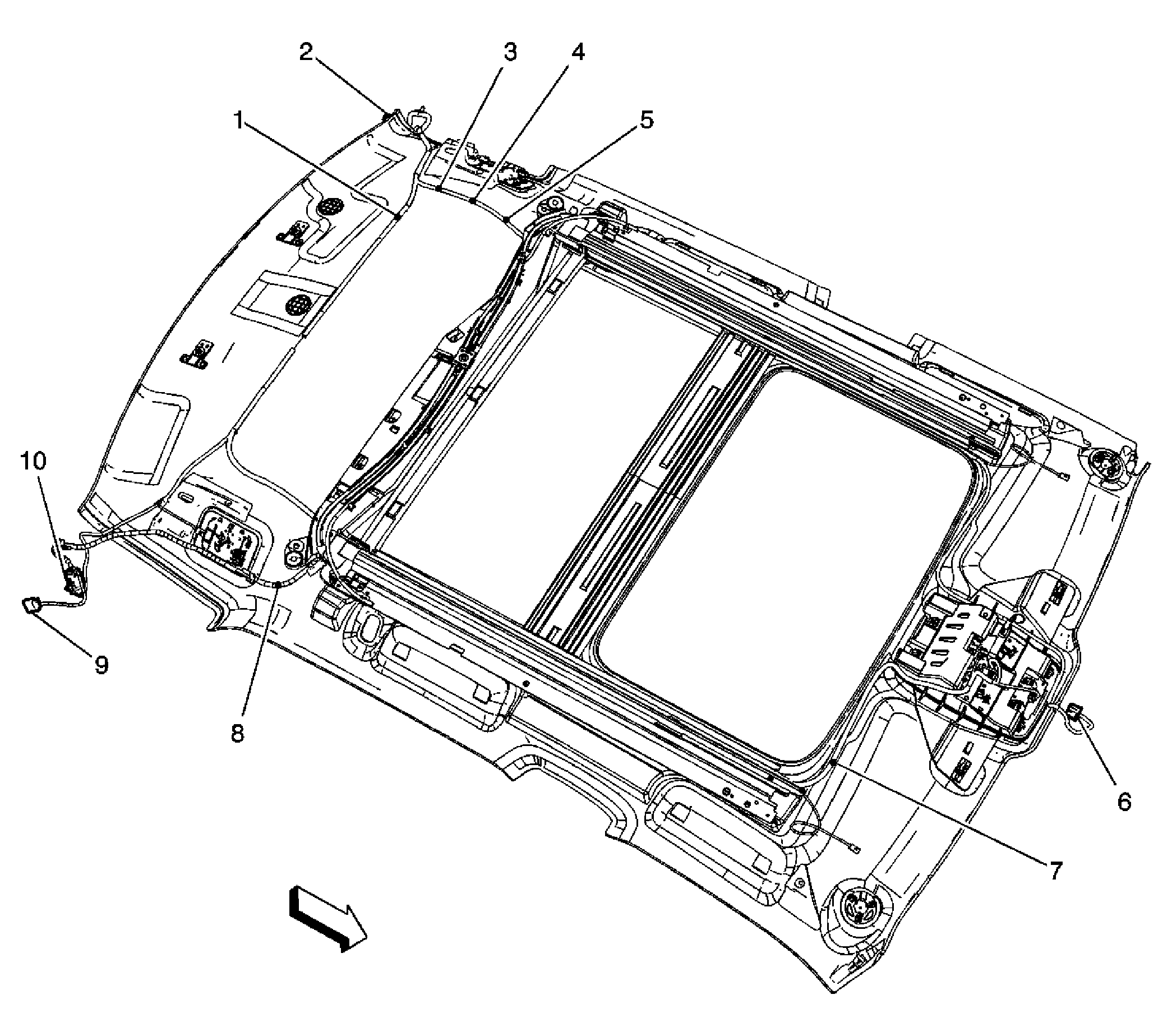

Fig 19: Headliner & Sunroof Harnesses Routing Views (CF5)
GM1619143Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S330
2 C321
3 S313
4 S312
5 S328
6 Inside Rearview Mirror (ISRVM) Connector
7 S334
8 S338
9 C397
10 C399

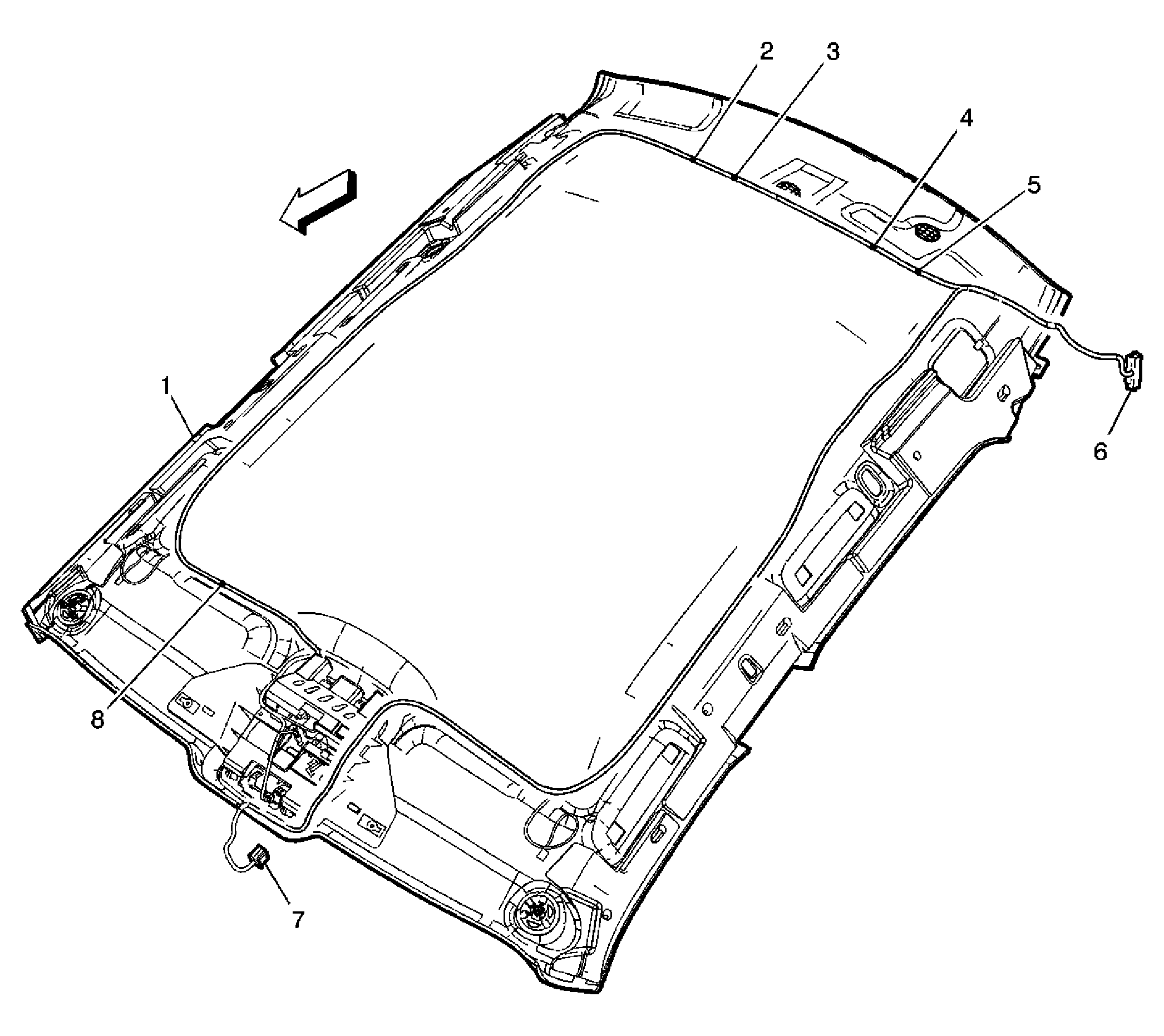

Fig 20: Headliner Harnesses Routing Views (w/o CF5)
GM1619141Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 S330
3 S313
4 S328
5 S312
6 C321
7 Inside Rearview Mirror (ISRVM) Connector
8 S334

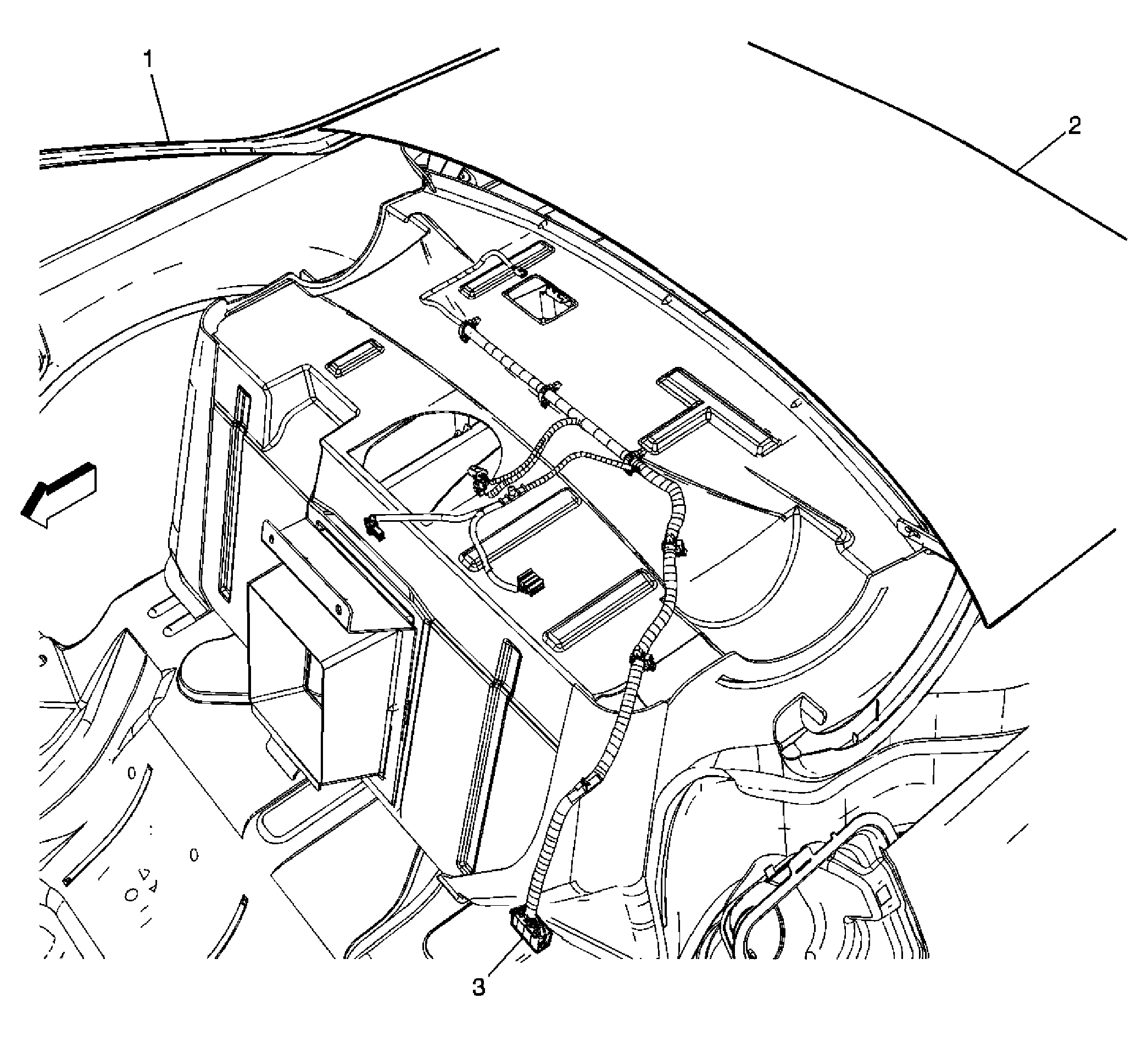

Fig 21: Rear Shelf Harnesses Routing Views
GM1619166Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RR C-Pllar
2 Rear Decklid
3 C445

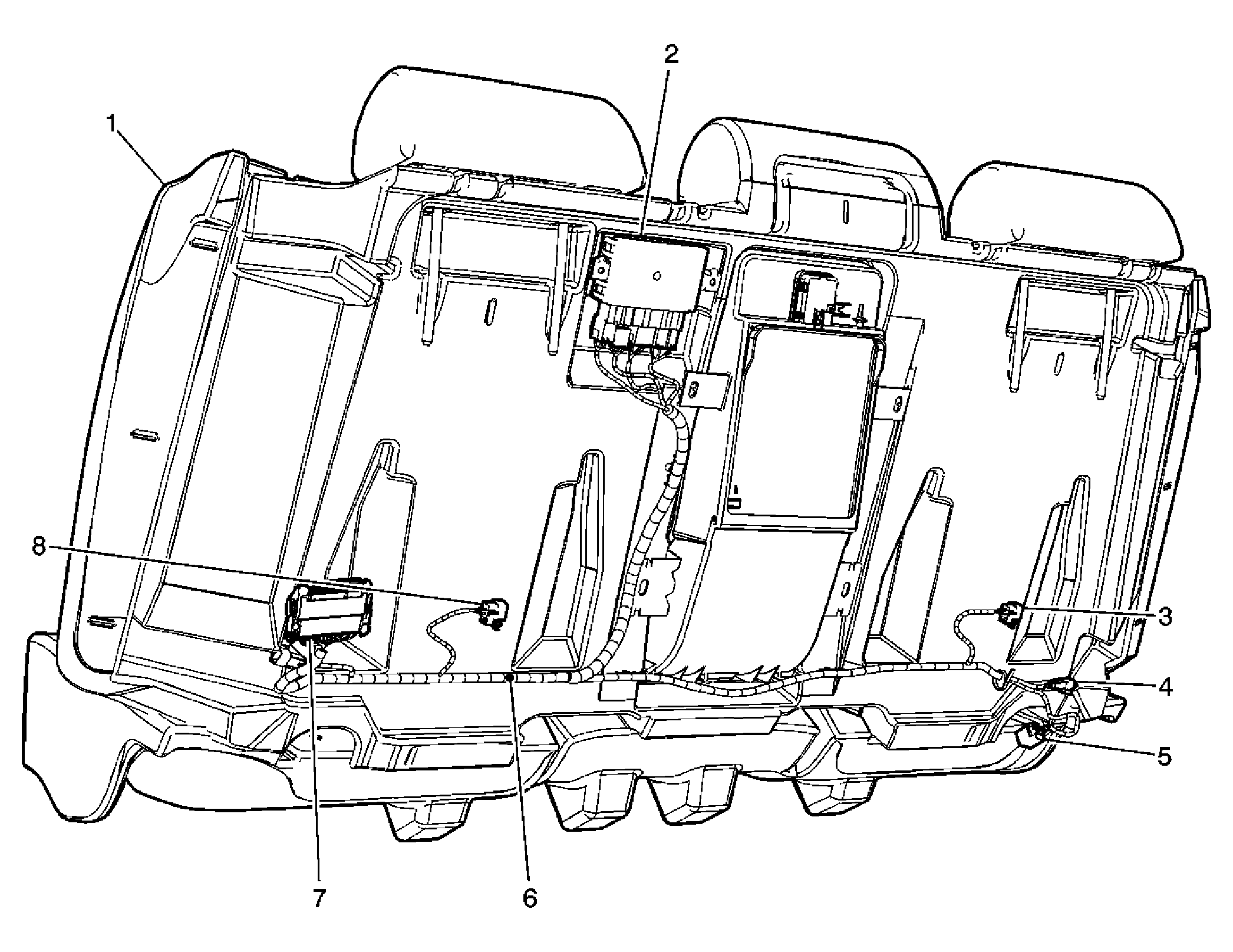

Fig 22: Rear Seat Harnesses Routing Views
GM1619159Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Back Cushion
2 Heated Seat Module
3 Lumbar Inline
4 Heated Seat Element - RR Back Connector
5 C320
6 S353
7 C313
8 Lumbar Inline
Fig 23: Fuel Tank Harnesses Routing Views
GM1619165Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C309
2 Fuel Tank
3 Fuel Sending Unit
Fig 24: Rear Fascia Harnesses Routing Views
GM1619166Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RR C-Pllar
2 Rear Decklid
3 C445
Fig 25: Rear Fascia Harnesses Routing Views
GM1860577Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint I/P Module
2 C210
3 Body Control Module (BCM)
4 I/P Compartment Door
Fig 26: Top Left Side of Rear Crossmember Harnesses Routing Views
GM1860579Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Wheel Speed Sensor (WSS) Harness
2 Rear Crossmember
3 Rotor-LR
4 Body Harness
5 C308
Fig 27: Center of Rear Shelf Harnesses Routing Views
GM1860591Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 C395
3 Rear Window Sunshade Module (DE9)
4 Rear Window Sunshade Actuator (DE9)
5 Rear Window Sunshade (DE9)
Fig 28: Headlamp Assemblies Harnesses Routing Views
GM1860642Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Ballast - Left (-T72)
2 X114
3 X113
4 Headlamp Ballast - Right (-T72)
