Ground Distribution Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

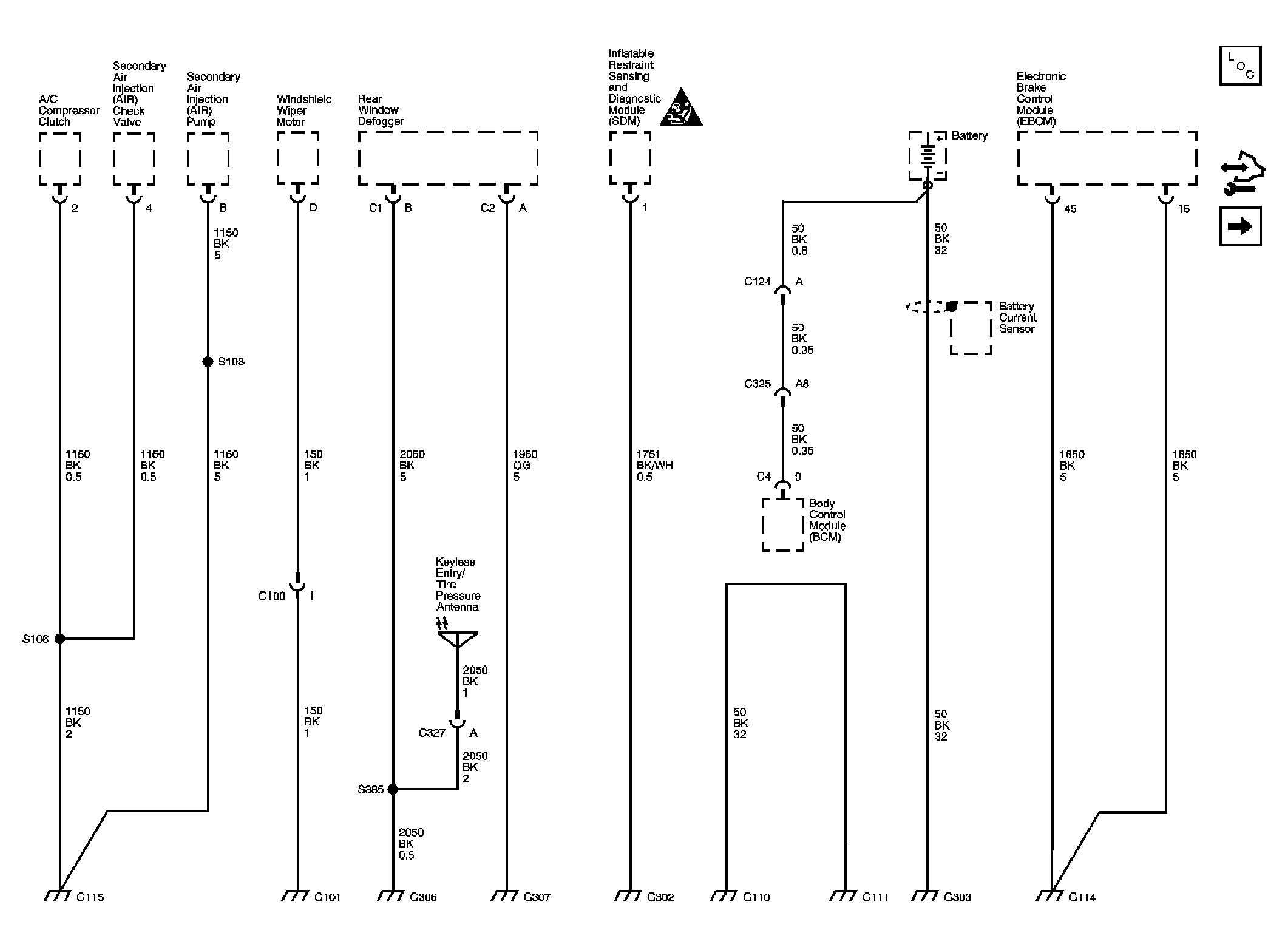

Fig 1: Ground Distribution Schematics - G101, G110, G111, G114, G115, G302, G303, G306, G307

Courtesy of GENERAL MOTORS CORP.

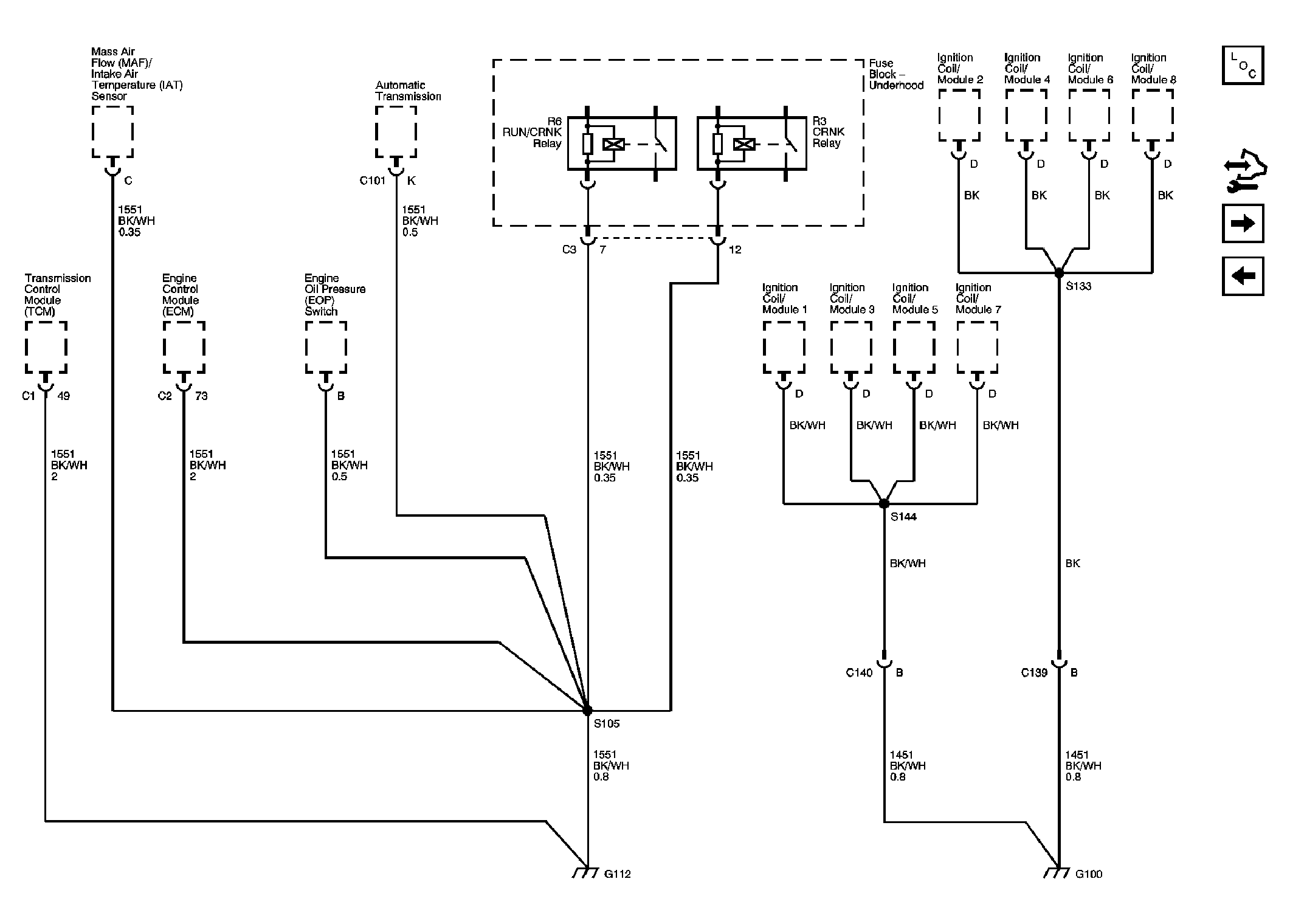

Fig 2: Ground Distribution Schematics - G100, G112

Courtesy of GENERAL MOTORS CORP.

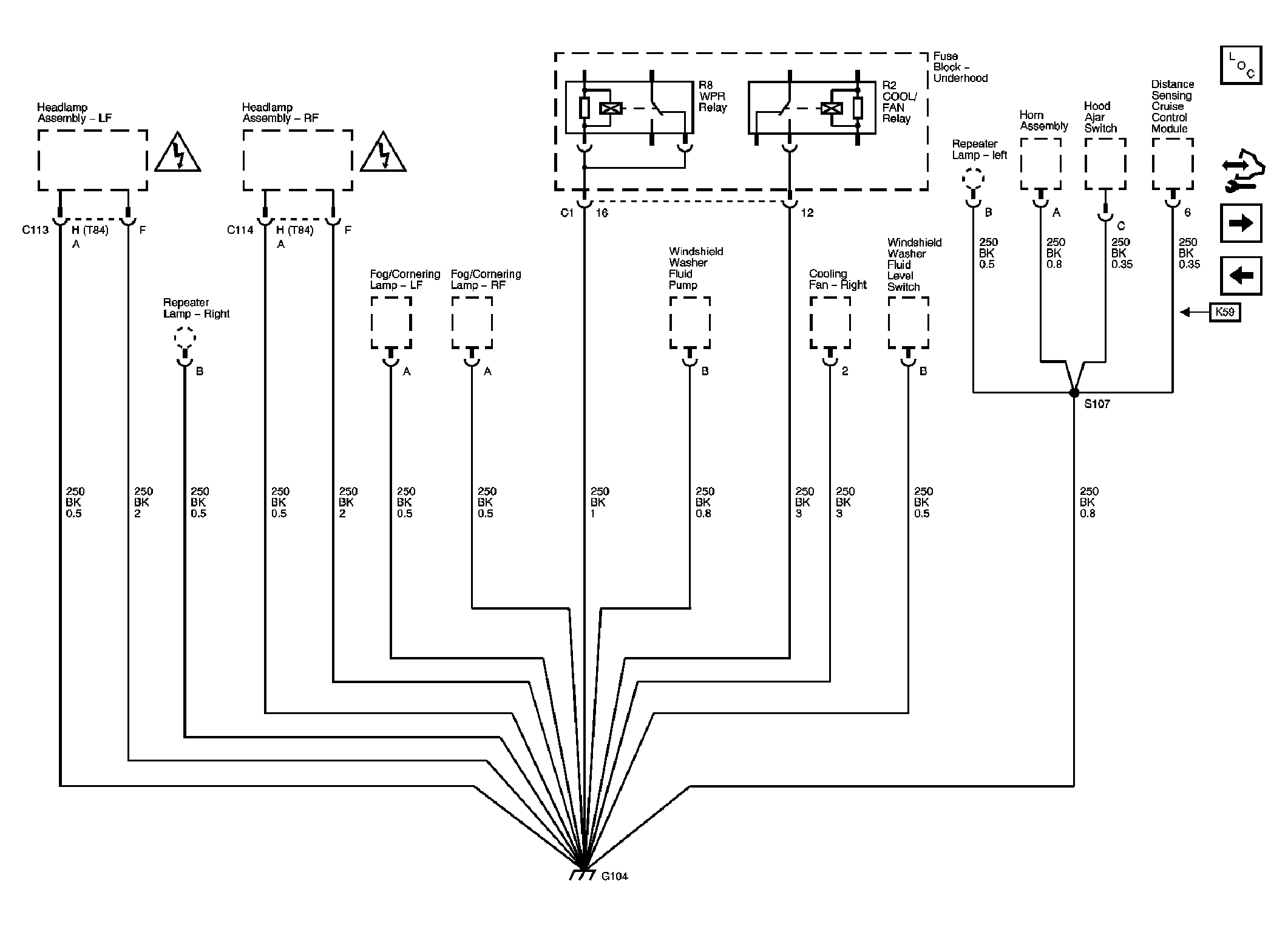

Fig 3: Ground Distribution Schematics - G104

Courtesy of GENERAL MOTORS CORP.

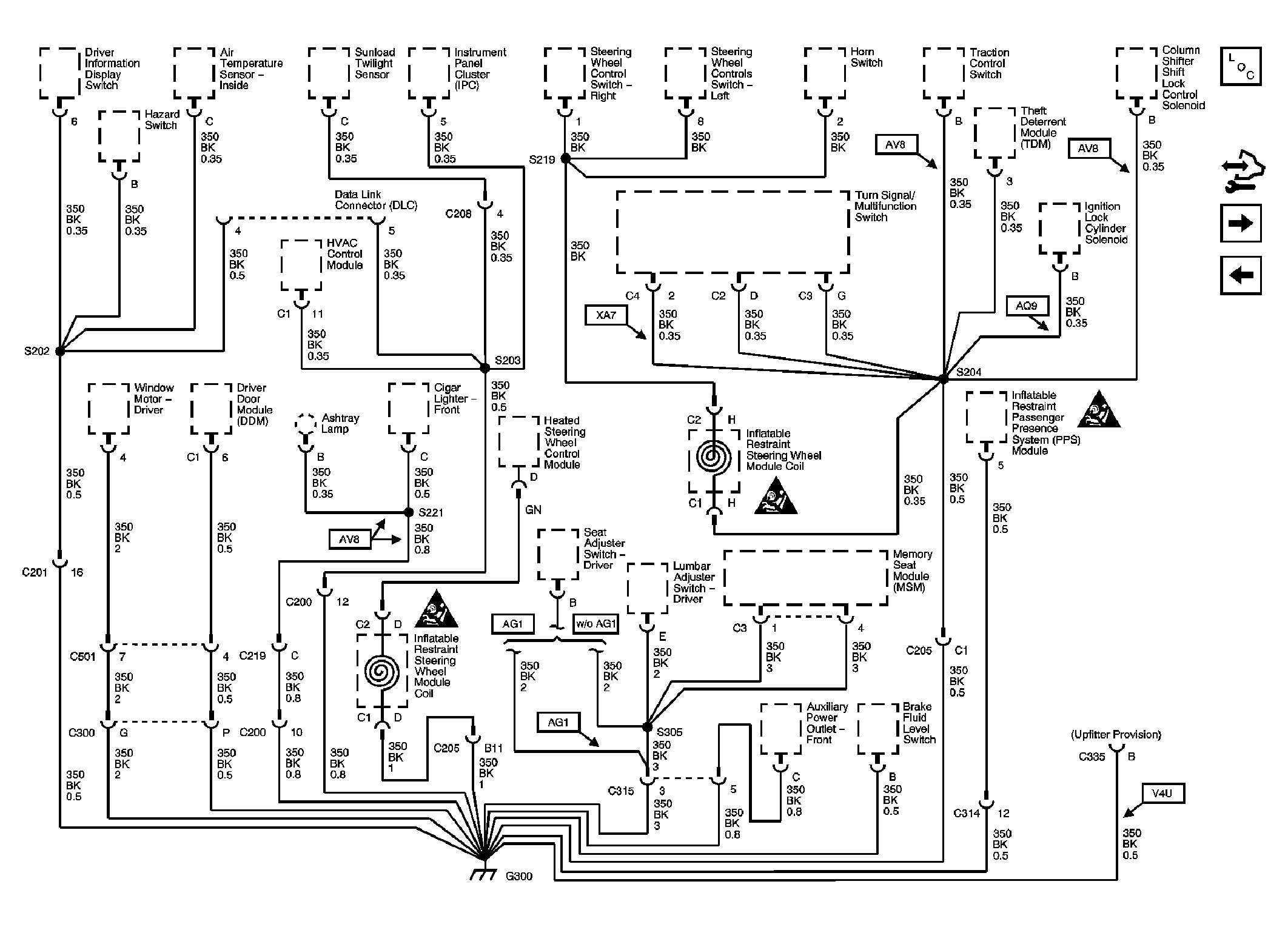

Fig 4: Ground Distribution Schematics - G300

Courtesy of GENERAL MOTORS CORP.

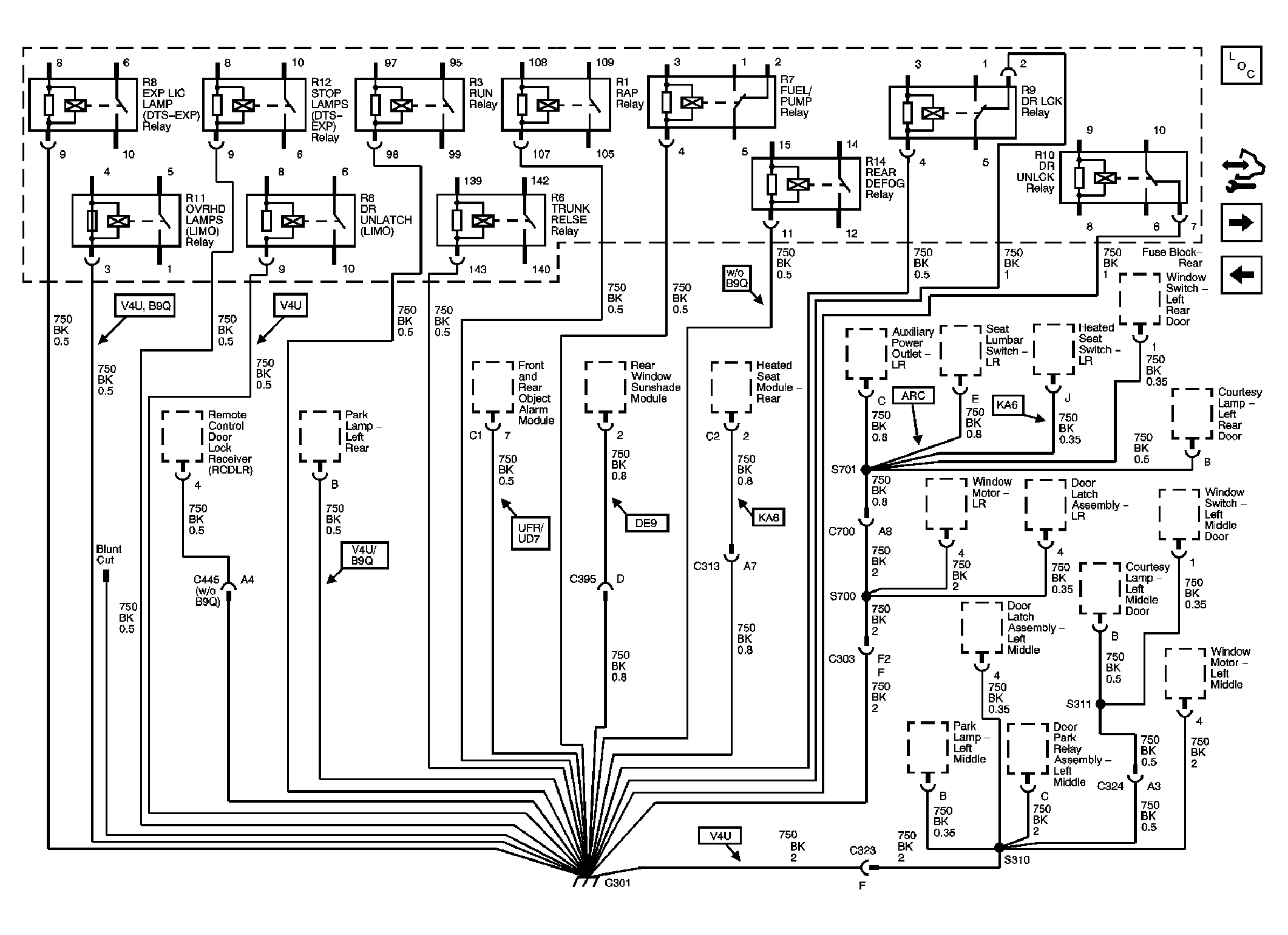

Fig 5: Ground Distribution Schematics - G301

Courtesy of GENERAL MOTORS CORP.

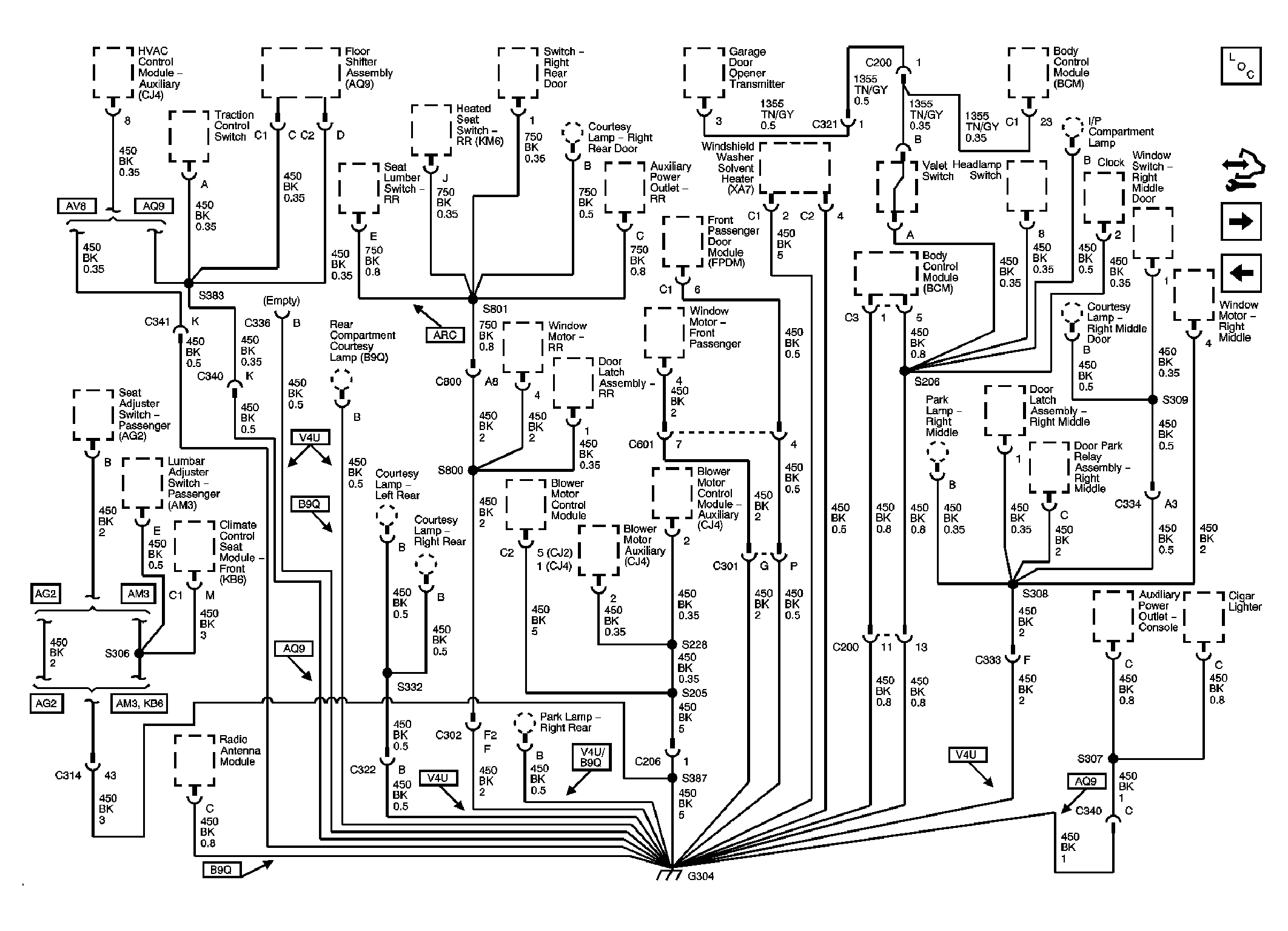

Fig 6: Ground Distribution Schematics - G304

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ground Distribution Schematics - G305

Courtesy of GENERAL MOTORS CORP.

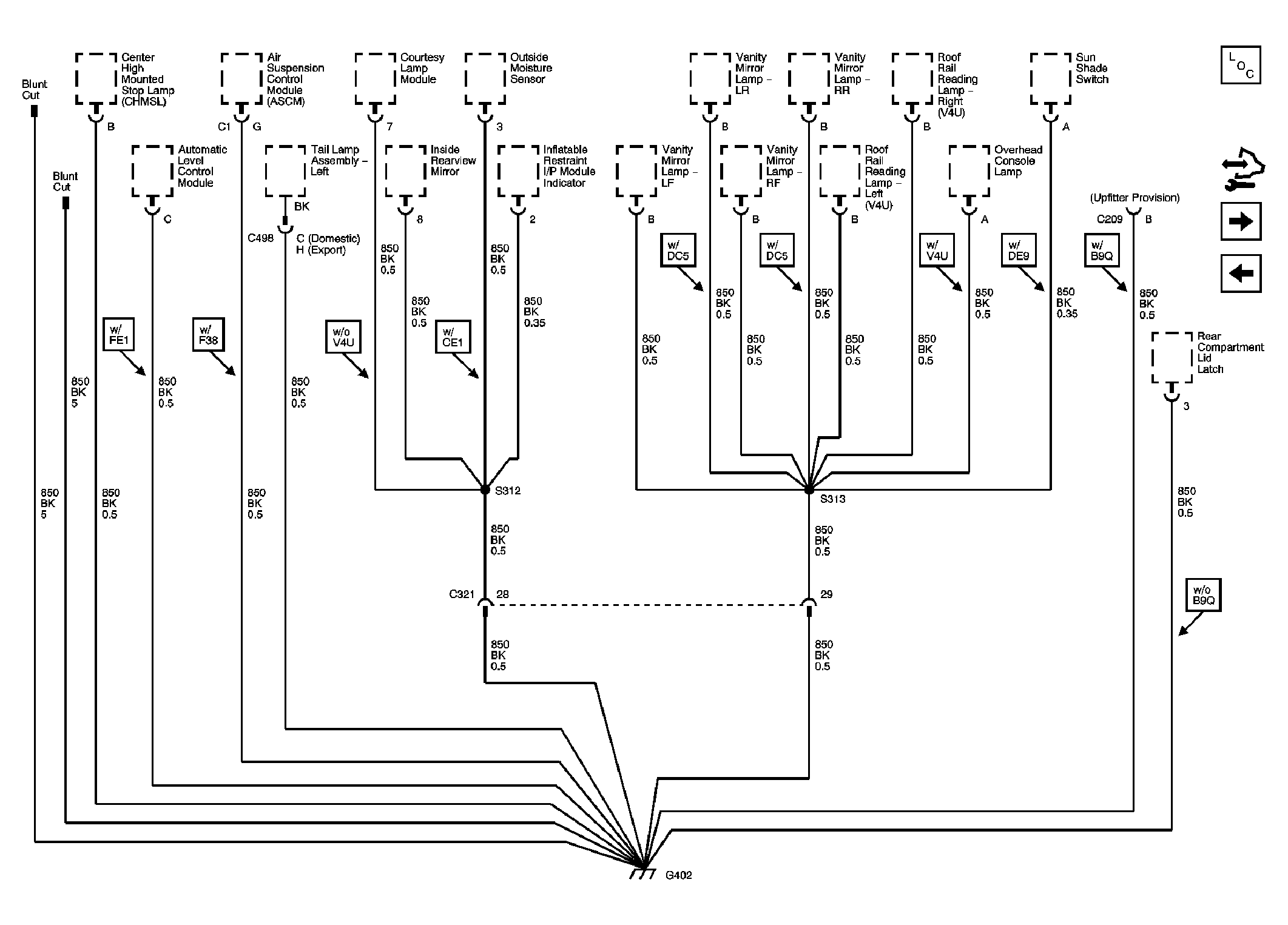

Fig 8: Ground Distribution Schematics - G402

Courtesy of GENERAL MOTORS CORP.

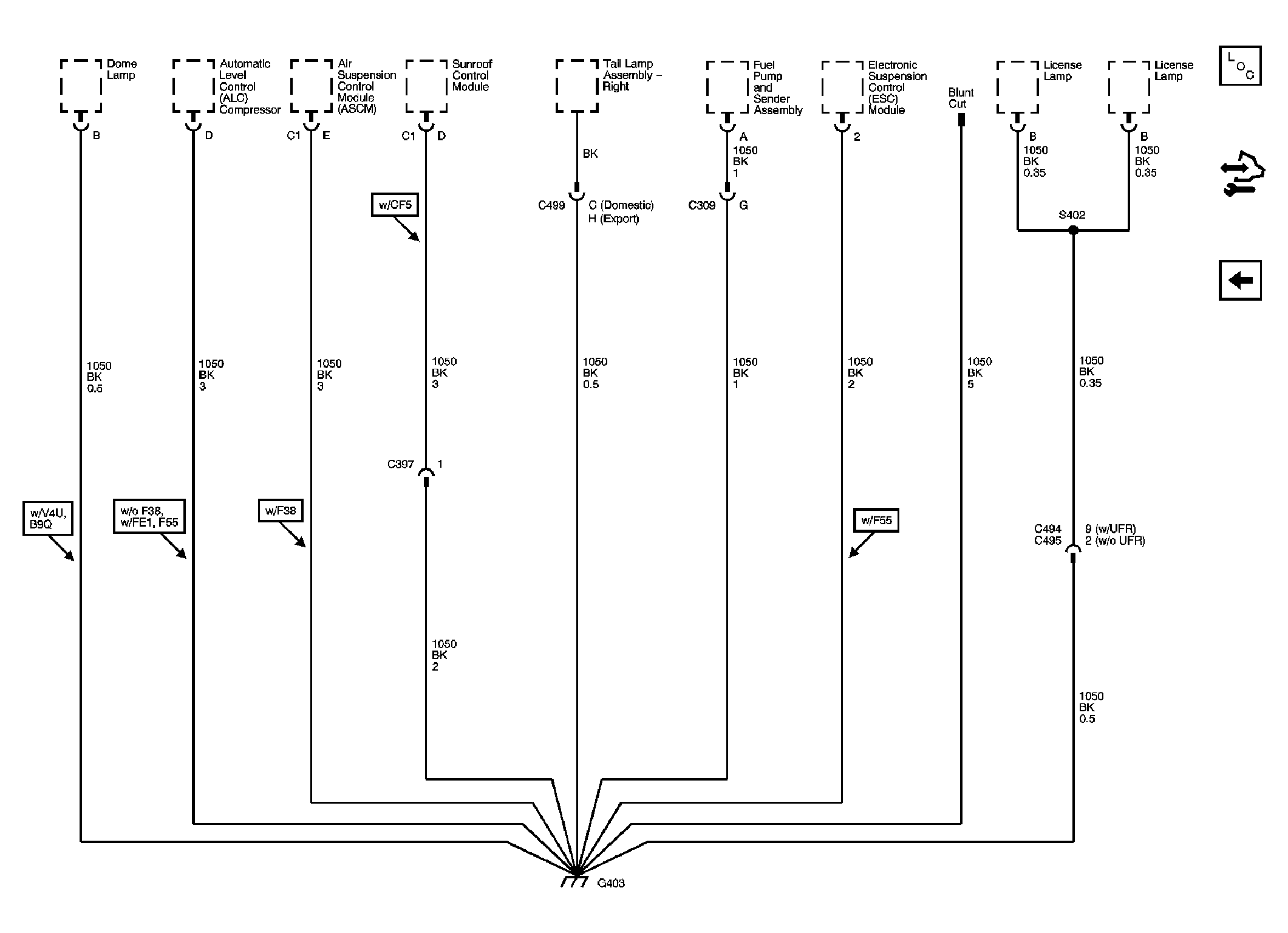

Fig 9: G403

Courtesy of GENERAL MOTORS CORP.
