Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical center cover (1).
    Fig 1: Electrical Center Cover
    GM1587955Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the positive battery cable from junction box. Refer to Battery Positive Cable Replacement .
    Fig 2: Electrical Center Board
    GM1587964Courtesy of GENERAL MOTORS CORP.
  3. Remove the fasteners (1) securing the electrical center board (2).
  4. Unlock the tabs on the electrical center board.
  5. Lift up on the electrical center board.

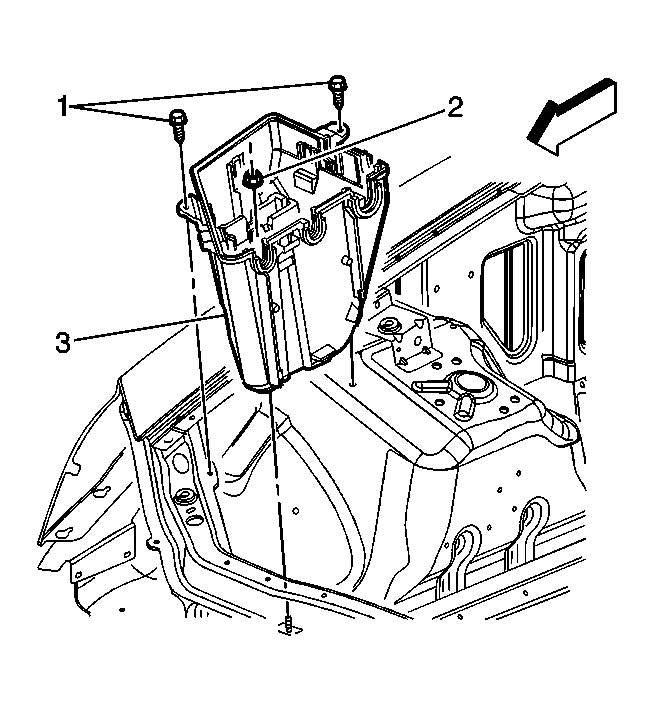

    Fig 3: View Of Electrical Center
    GM696645Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector (1).
  7. Remove the fasteners (2) securing the electrical center to vehicle.
