Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

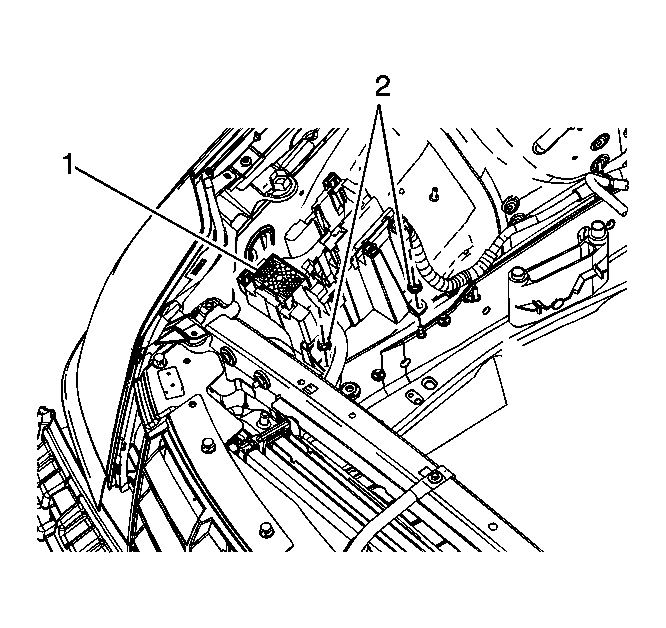

Fig 1: Electrical Center
GM1587969Courtesy of GENERAL MOTORS CORP.
  1. Install fasteners (2) securing the electrical center to vehicle.

    Tighten:  Tighten the fasteners to 10 N.m (86 lb in).

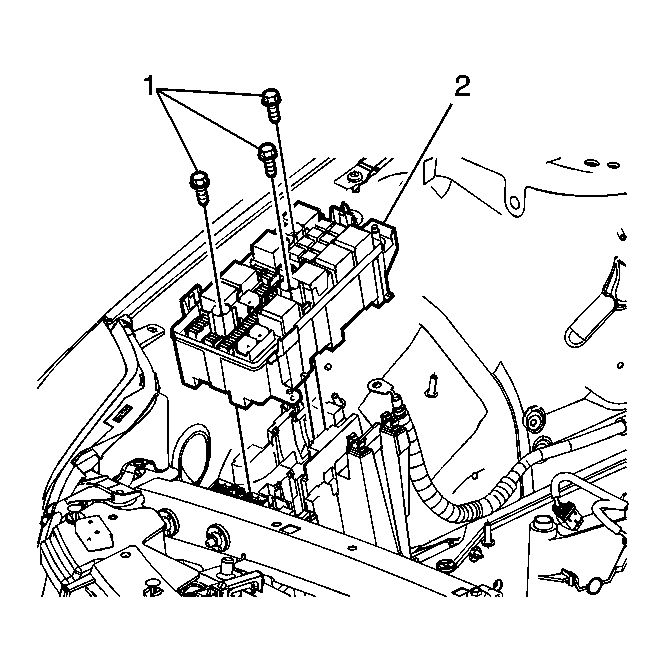

    Fig 2: Electrical Center Board
    GM1587964Courtesy of GENERAL MOTORS CORP.
  2. Install the harness (1).
  3. Install the fasteners (1) securing the electrical center board (2).

    Tighten:  Tighten the fasteners to 7 N.m (62 lb in).

  4. Connect the positive battery cable. Refer to Battery Positive Cable Replacement .

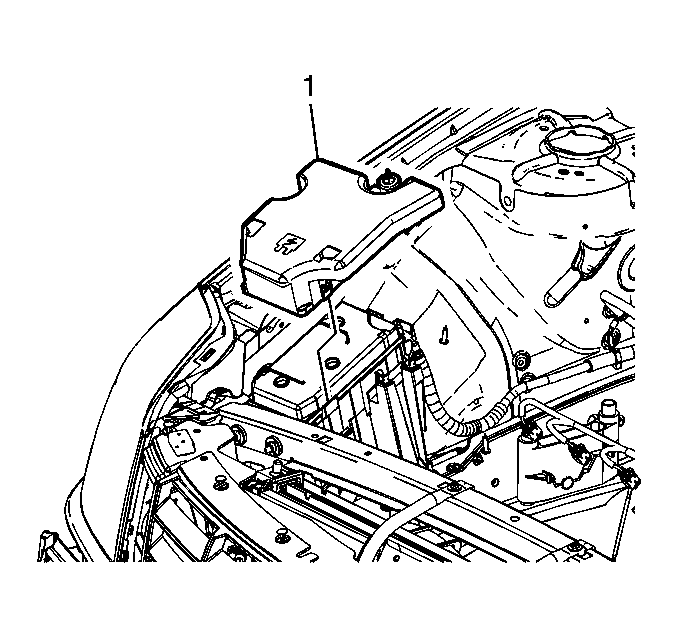

    Fig 3: Electrical Center Cover
    GM1587955Courtesy of GENERAL MOTORS CORP.
  5. Install the electrical center cover (1).
