Rear Disc Brake Pads Replacement (J55)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

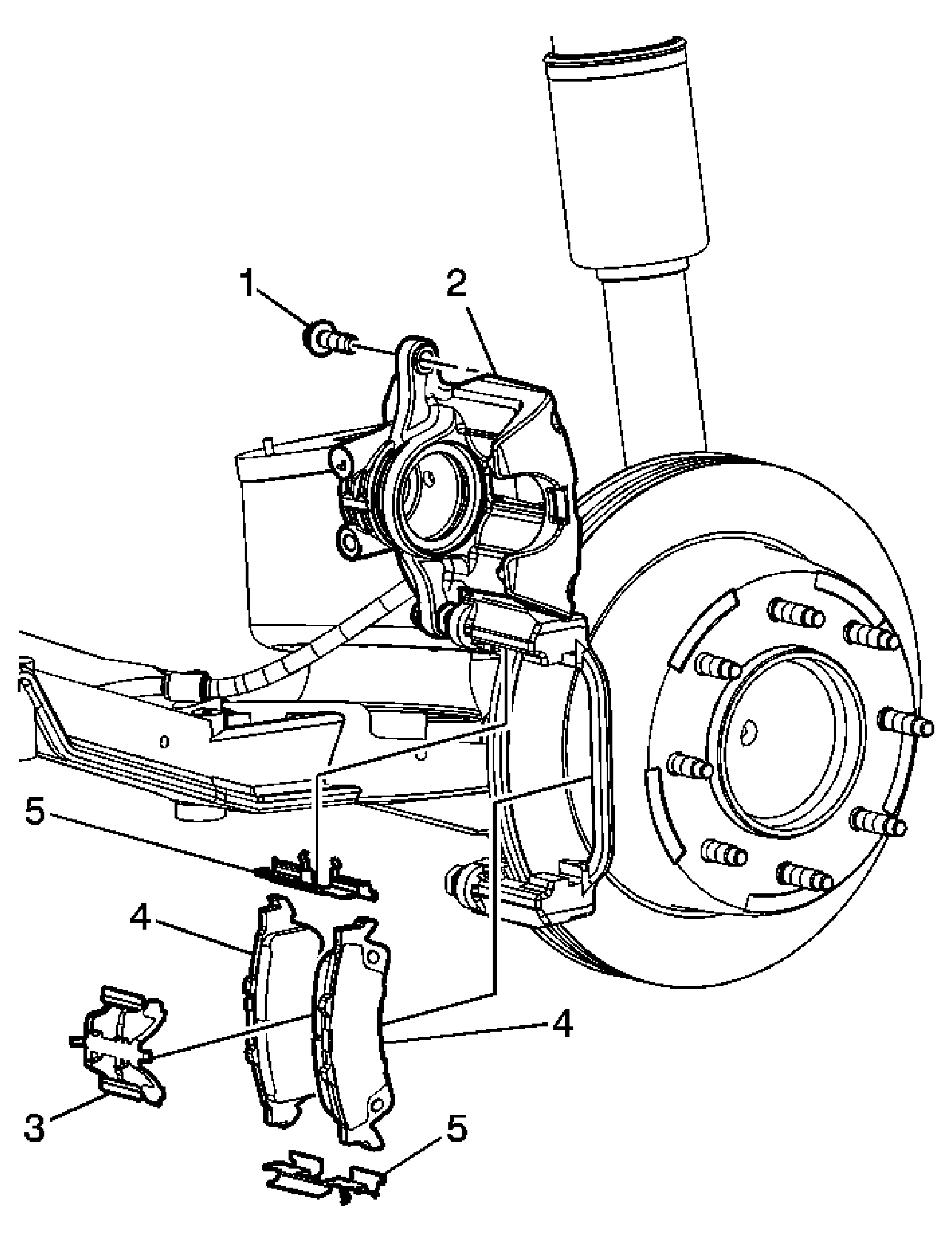

Fig 1: Brake Pads Replacement - Rear (J55)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice . NOTE: Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak. Preliminary Procedures Inspect the fluid level in the brake master cylinder reservoir. If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding. If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding. Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Guide Pin Bolt NOTE: Refer to Fastener Notice . Tighten: 63 N.m (46 lb ft)
2	Brake Caliper Tip: Rotate the brake caliper upward and secure with heavy mechanics wire or equivalent.
3	Spring Clip Tip: DO NOT use the old spring clip with new brake pads, replace with new.
4	Brake Pads Tip: Use one or two wheel lugs nuts to hold the brake rotor in place while servicing the brake pads. If removing the brake pads to service the brake system, mark the inner and outer pads for the proper installation.
5	Spring Clips (Qty: 2) Tip: If installing new brake pads, discard the spring clips. Install NEW spring clips. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance. Slowly release the brake pedal. Wait 15 seconds, then repeat steps 2-3 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads. Fill the master cylinder to the proper level. Refer to Master Cylinder Reservoir Filling . Burnish the pads and rotors. Refer to Brake Pad and Rotor Burnishing .
