Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

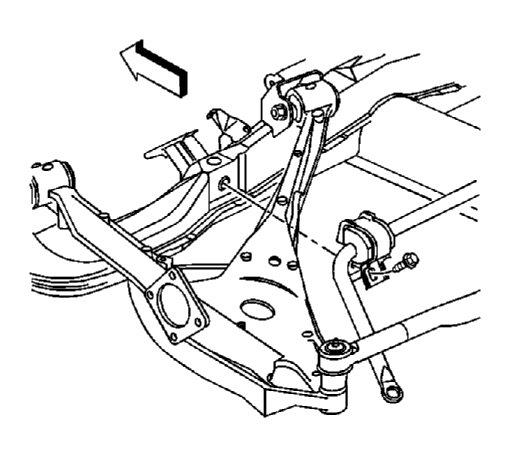

    2. Fig 1: View Of Stabilizer Shaft, Brackets & Bolts (FE7)
    GM568063Courtesy of GENERAL MOTORS CORP.
  2. Remove the stabilizer shaft bracket retaining bolt.
  3. Bend open the end of the stabilizer shaft bracket upward and remove the stabilizer shaft bracket.
  4. Remove the stabilizer shaft insulator.
