Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Control Arm, Air Tube, Shock & Bolts

Courtesy of GENERAL MOTORS CORP.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
IMPORTANT: Hold the adjustment link studs with the hex tool.
Remove the hex nut from the adjustment link.

Fig 2: Using J 24319-B To Disconnect Outer Tie Rod From Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Using the J 24319-B separate the adjustment link from the lower control arm.

Fig 3: View Of Center Support Brackets
Courtesy of GENERAL MOTORS CORP.
Remove the support bracket bolts from the center support (1).
Using a block of wood and suitable jack, support the rear support assembly.

Fig 4: View Of Support Assembly & Bolts

Courtesy of GENERAL MOTORS CORP.

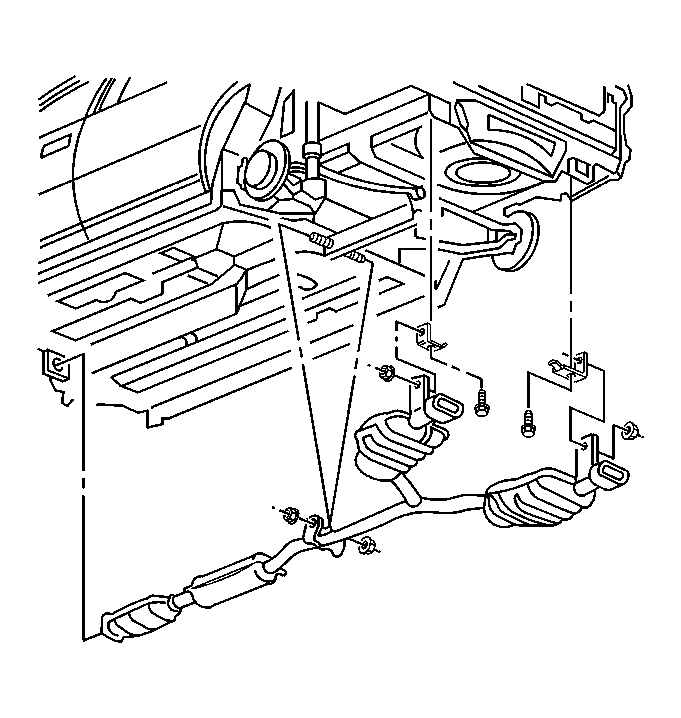

Remove the exhaust. Refer to Exhaust System Replacement .

Fig 5: View Of Rear Suspension And Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Remove two rear support assembly bolts and lower the support assembly.

Fig 6: Loosening Inner Adjustment Link Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Remove the cam lock nut and the bolt.
Remove the adjustment link from the support assembly.
