Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

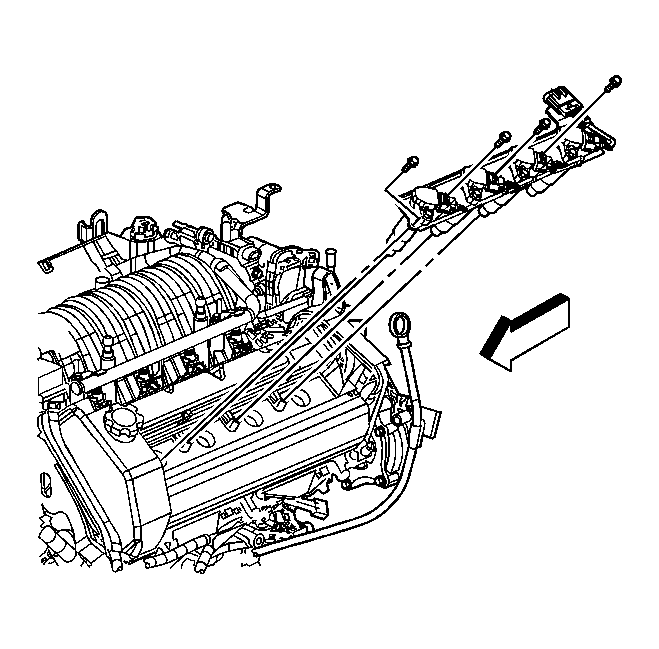

    Fig 1: Identifying Ignition Coil Assembly Bolts
    GM1672635Courtesy of GENERAL MOTORS CORP.
  1. If servicing the ignition coil assembly, perform the following steps, if servicing an individual ignition coil proceed to step 5.
  2. Install the ignition coil assembly.
    3. NOTE: Refer to Fastener Notice .
  3. Install the ignition coil assembly bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

    4. Fig 2: Identifying Engine Harness Electrical Connectors
    GM1662120Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine harness electrical connector (3) to the ignition coil assembly.
    5. Fig 3: Identifying Ignition Coil
    GM1672555Courtesy of GENERAL MOTORS CORP.
  5. Install the ignition coil (2), as required.
  6. Install the individual ignition coil bolt (1), as required.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  7. Connect the individual ignition coil electrical connector (3), as required.
  8. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
