Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

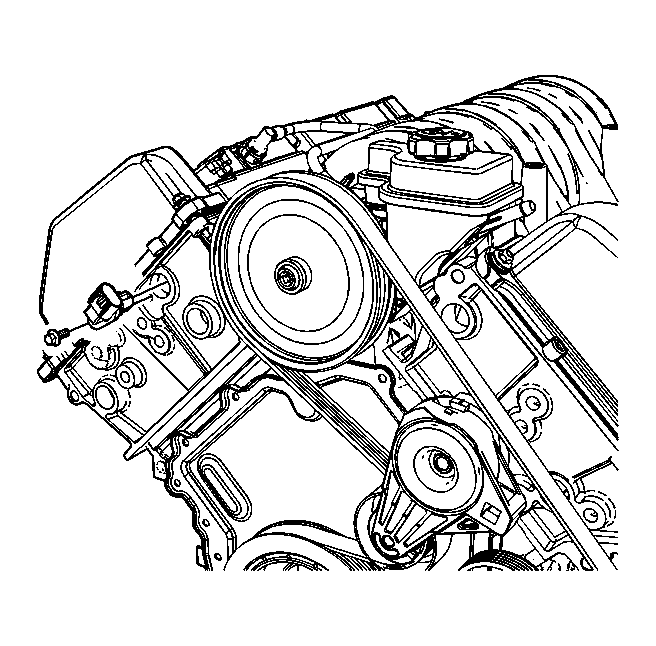

    Fig 1: Identifying CMP Sensor
    GM1672561Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CMP sensor O-ring seal with clean engine oil.
  2. Install the CMP sensor.
    3. NOTE: Refer to Fastener Notice .
  3. Install the CMP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

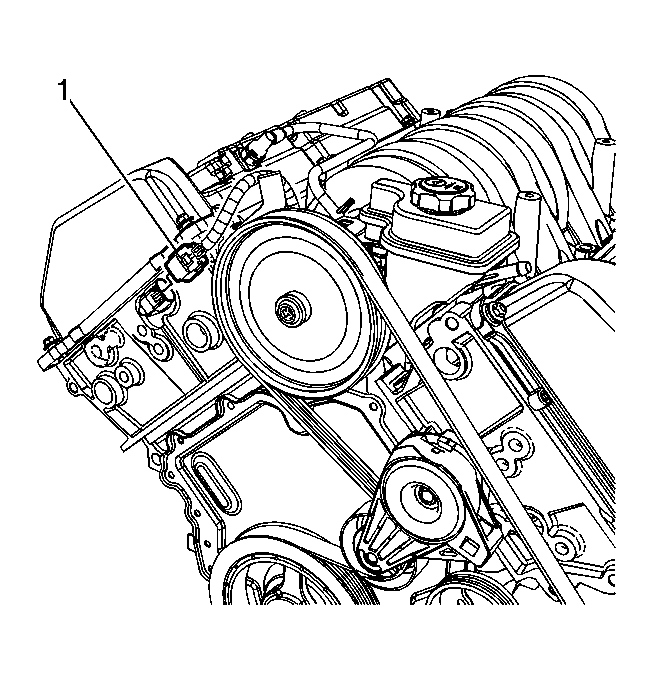

    4. Fig 2: Identifying CMP Sensor Wiring Harness Connector
    GM1672927Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector (1) to the CMP sensor.
