Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

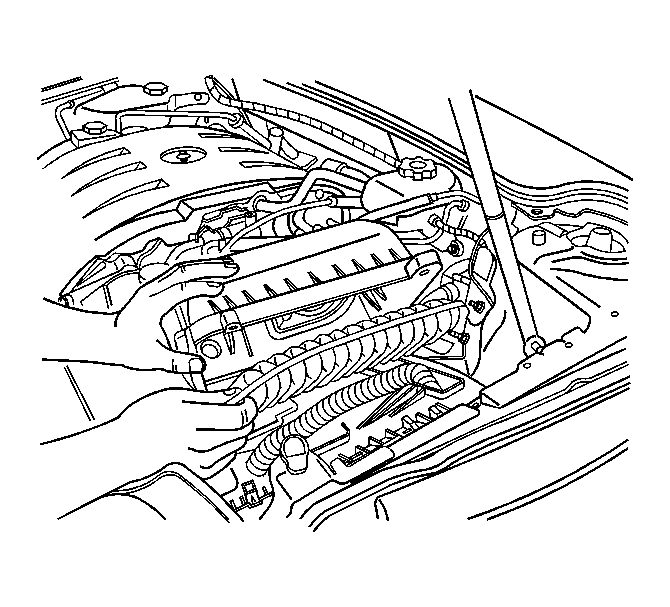

    Fig 1: Identifying Air Cleaner Element
    GM1674287Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter to the air cleaner.
  2. Close the air cleaner cover. Ensure that the inboard hinges are engaged prior to tightening the screws.
    3. Fig 2: Identifying Air Cleaner Housing
    GM1674286Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Tighten the air cleaner cover screws (1).

    Tighten:  Tighten the screws to 3 N.m (27 lb in).
