Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Accelerated Pedal Nuts
    GM1671028Courtesy of GENERAL MOTORS CORP.
  1. Install the accelerator pedal.
    2. NOTE: Refer to Fastener Notice .
  2. Install the accelerated pedal nuts.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

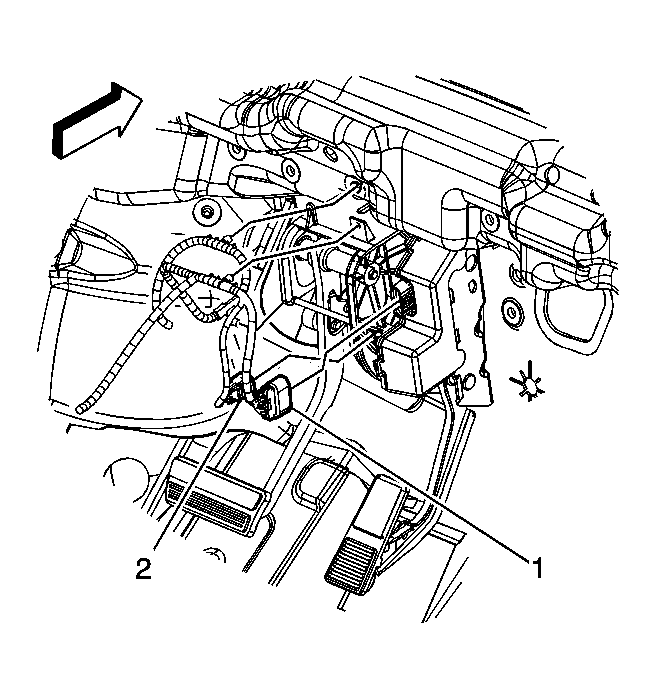

    3. Fig 2: Identifying Accelerator Pedal Position (APP) Sensor
    GM1671027Courtesy of GENERAL MOTORS CORP.
  3. Connect the body harness electrical connector (1) to the APP sensor.
  4. Install the left I/P sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
