Wheel Bearing/Hub Replacement - Front (FE7)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

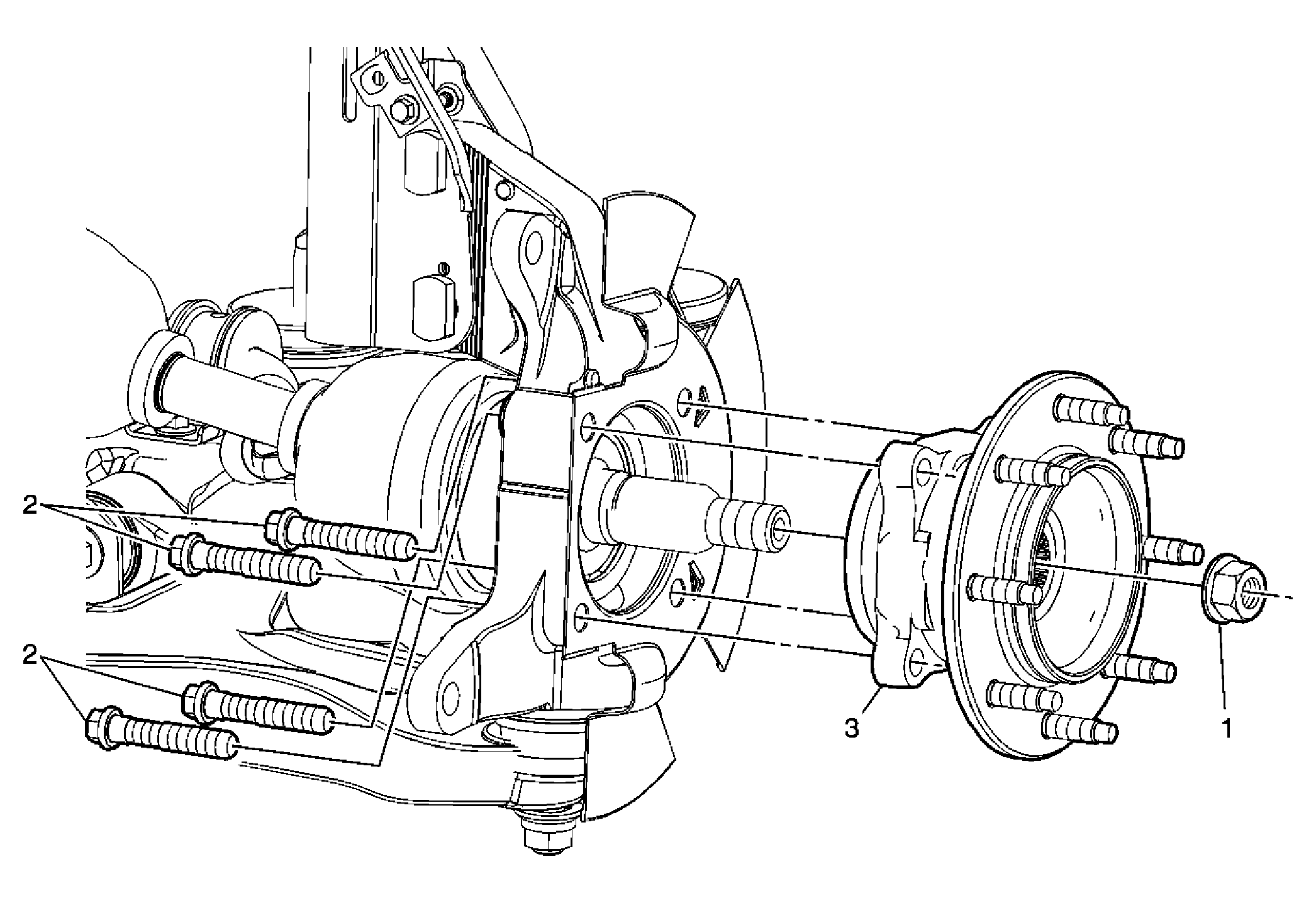

Fig 1: Wheel Bearing/Hub Replacement - Front (FE7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Tool Required: J 28733-B Front/Rear Spindle Remover Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the brake rotor from the wheel hub/bearing. Refer to Front Brake Rotor Replacement (J55) or Front Brake Rotor Replacement (JL9) .
1	Wheel Drive Shaft Nut Tip: Use a suitable tool to prevent the wheel hub/bearing from rotating while removing the axle nut. Tighten: 230 N.m (170 lb ft)
2	Wheel Bearing/Hub Bolt (Qty: 4) Tip: Disconnect the wheel speed electrical connector, if equipped. Tighten: 152 N.m (112 lb ft)
3	Wheel Bearing/Hub Tip: Use the J 28733-B to press the axle shaft from the wheel/bearing/hub.
