Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right camshafts. Refer to Camshaft Replacement - Right Side .

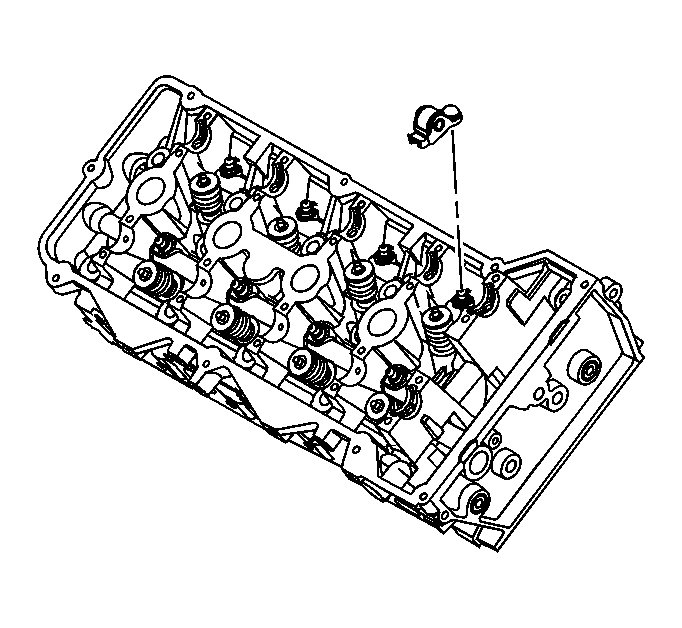

    2. Fig 1: View of Camshaft Followers
    GM609694Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If the followers are being reused, arrange them so that they may be put back in their original locations.
  2. Remove the camshaft followers.
  3. Clean and inspect the rocker arms. Refer to Valve Rocker Arms Cleaning and Inspection .
