Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right valve rocker arms. Refer to Valve Rocker Arm Replacement - Right Side .

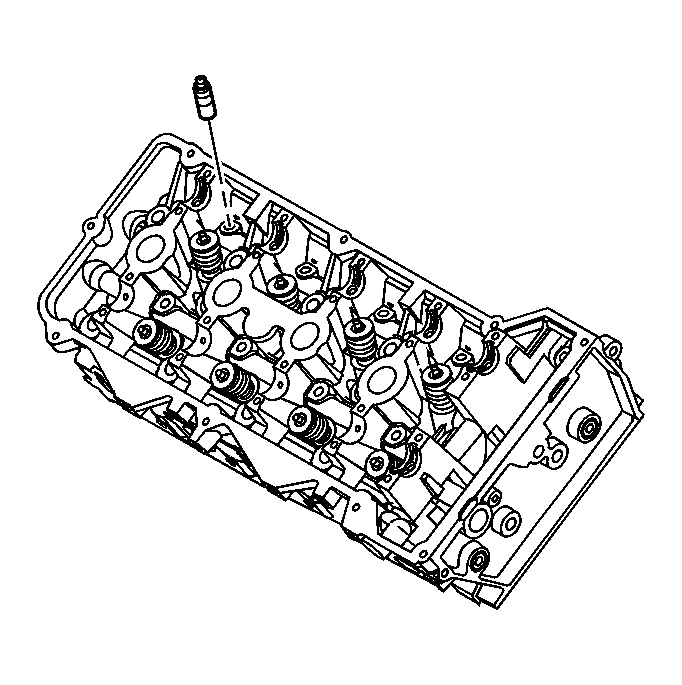

    2. Fig 1: View of Stationary Hydraulic Lash Adjusters
    GM591922Courtesy of GENERAL MOTORS CORP.
  2. Remove the stationary hydraulic lash adjusters (SHLA) from the bores.
  3. Clean and inspect the valve lifters. Refer to Valve Lifters Cleaning and Inspection .
