Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

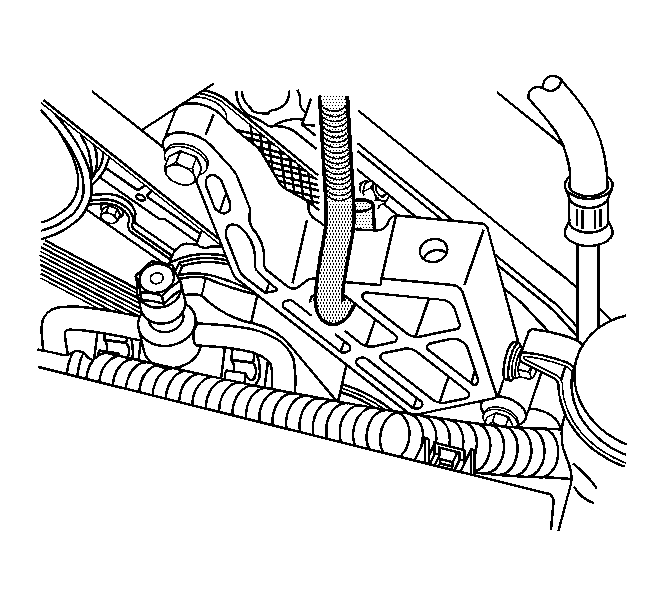

    Fig 1: View Of Lift Hook (J 28467-7A)
    GM1660451Courtesy of GENERAL MOTORS CORP.
  1. Remove the J 28467-7A lift hook from the engine mount strut bracket.
  2. Remove the J 28467-B  .
  3. Remove the J 28467-501  . See Special Tools .
    4. Fig 2: Identifying Engine Mount Strut Bolt
    GM1660428Courtesy of GENERAL MOTORS CORP.
  4. Install the engine mount strut.
    5. NOTE: Refer to Fastener Notice .
  5. Install the engine mount strut bolt.

    Tighten:  Tighten the bolt to 70 N.m (52 lb ft).

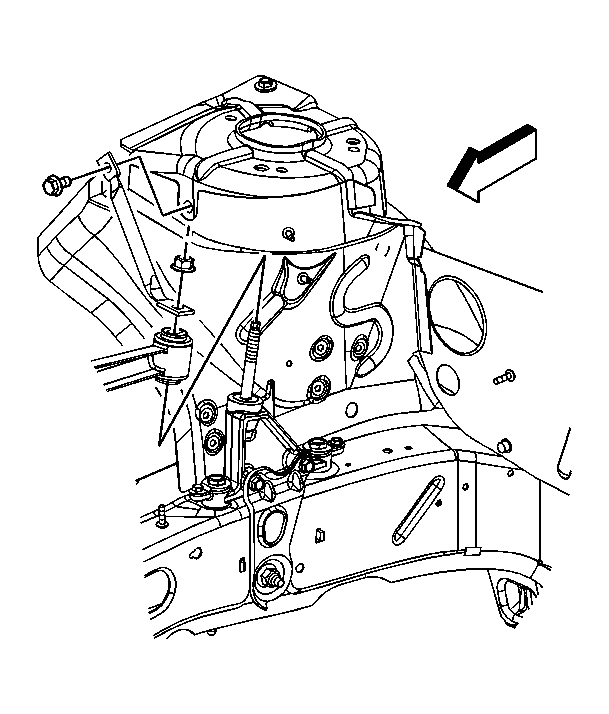

    6. Fig 3: View Of Engine Mount Strut Brace Bolt & Nut
    GM1660425Courtesy of GENERAL MOTORS CORP.
  6. Install the engine mount strut brace.
  7. Install the engine mount strut brace bolt and nut.

    Tighten:

    • Tighten the bolt to 50 N.m (37 lb ft).
    • Tighten the nut to 70 N.m (52 lb ft).

    8. Fig 4: Identifying Surge Tank
    GM1660422Courtesy of GENERAL MOTORS CORP.
  8. Position the surge tank to the studs.
  9. Install the surge tank nuts and push pin retainer.

    Tighten:  Tighten the nuts to 6 N.m (53 lb in).

  10. Install the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
  11. Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
