Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying J 28467-B & J 28467-3
    GM790666Courtesy of GENERAL MOTORS CORP.
  1. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  2. Install the J 28467-3 strut tower tube (2) into the J 28467-501  (1). See Special Tools .
  3. Fig 2: Identifying Surge Tank
    GM1660422Courtesy of GENERAL MOTORS CORP.
  4. Remove the surge tank nuts and push pin retainer.
  5. Remove the surge tank from the studs and position the tank aside.
  6. Fig 3: View Of Engine Mount Strut Brace Bolt & Nut
    GM1660425Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine mount strut brace bolt and nut.
  8. Remove the engine mount strut brace.
  9. Fig 4: Identifying Engine Mount Strut Bolt
    GM1660428Courtesy of GENERAL MOTORS CORP.
  10. Remove the engine mount strut bolt.
  11. Remove the engine mount strut.
  12. Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
  13. Fig 5: View Of Radiator Shelf Tube & Strut Tower Tube
    GM287861Courtesy of GENERAL MOTORS CORP.
  14. Install the J 28467-2A radiator shelf tube on top of the J 28467-3 strut tower tube.
  15. Fig 6: Installing Quick Release Pin J 28467-9
    GM405958Courtesy of GENERAL MOTORS CORP.
  16. Install the round tube of the J 28467-4A front support assembly through the large hole in the J 28467-2A radiator shelf tube. The hole used in the J 28467-2A radiator shelf tube depends on the vehicle application.
  17. Place the rubber padded foot of the J 28467-4A front support assembly on the upper tie bar.
  18. Install the J 28467-9 7/16 in x 2.0 in quick release pin through the hole in the J 28467-4A front support assembly in order to level the J 28467-2A radiator shelf tube.
  19. Fig 7: View Of Cross Bracket Assembly
    GM190646Courtesy of GENERAL MOTORS CORP.
  20. Install the J 28467-1A cross bracket assembly.
  21. Hand tighten the J 28467-1A cross bracket assembly wing nuts.
  22. Fig 8: View Of Lift Hook Assembly
    GM682139Courtesy of GENERAL MOTORS CORP.
  23. Install the J 28467-7A lift hook through the J 28467-6A lift hook bracket.
  24. Install the 1/2 in lift hook washer and J 28467-34 lift hook wing nut onto the J 28467-7A lift hook.
  25. Fig 9: View Of Lift Hook & Bracket Assembly At Longitudinal Mounted Cross Bar
    GM682301Courtesy of GENERAL MOTORS CORP.
  26. Install the J 28467-6A assembled lift hook bracket (1) over the J 28467-3 strut tower tube (2).
  27. Adjust the J 28467-6A assembled lift hook bracket (1) in order to align the hook with the rear engine lift hook bracket.

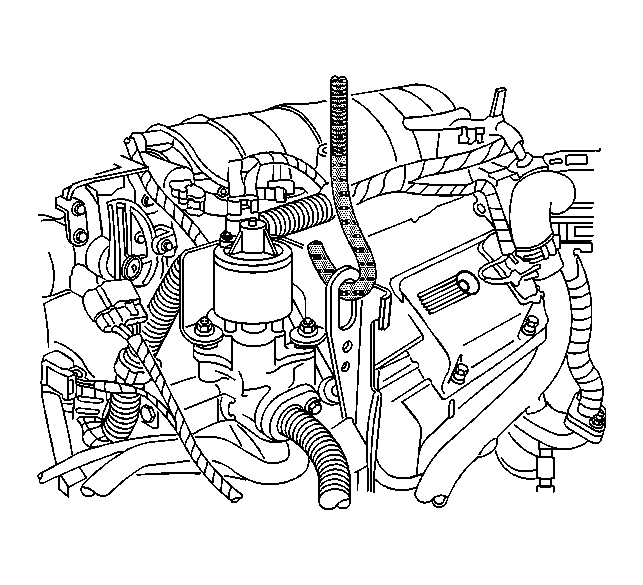

  28. Fig 10: Installing J 28467-7A
    GM682336Courtesy of GENERAL MOTORS CORP.
  29. Install the J 28467-7A lift hook through the rear engine lift hook bracket. Ensure the hook does not damage the surrounding components.
  30. Repeat steps 18 and 19.
  31. Fig 11: View Of Lift Hook & Bracket Assembly At Longitudinal Mounted Cross Bar
    GM682301Courtesy of GENERAL MOTORS CORP.
  32. Install the J 28467-6A assembled lift hook bracket (1) over the J 28467-2A radiator shelf tube (2).
  33. Adjust the J 28467-6A assembled lift hook bracket (1) in order to align the hook with the torque strut bracket.
  34. Fig 12: View Of Lift Hook (J 28467-7A)
    GM1660451Courtesy of GENERAL MOTORS CORP.
  35. Install the J 28467-7A lift hook through the engine mount strut bracket. Ensure the hook does not damage the surrounding components.
  36. Hand tighten the J 28467-34 lift hook wing nuts securely to remove all slack from the engine support fixture assembly.
