Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

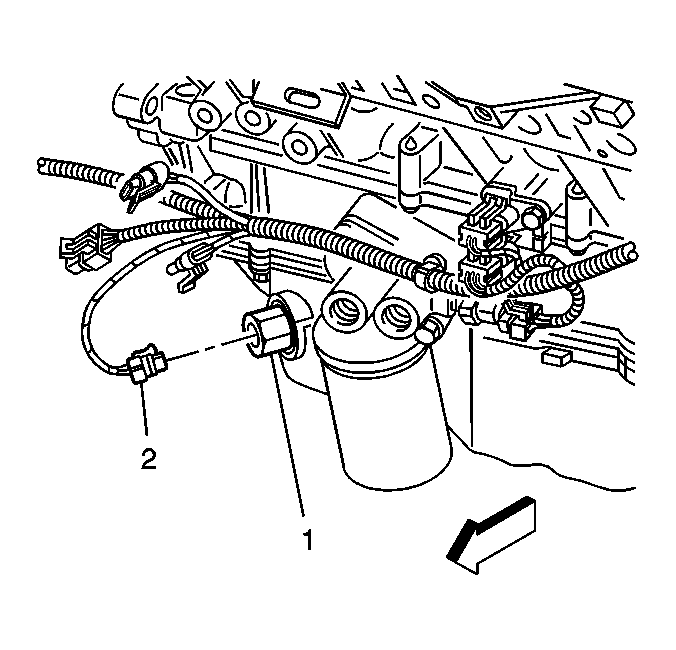

    Fig 1: View of Engine Oil Level Sensor & Electrical Connector
    GM551033Courtesy of GENERAL MOTORS CORP.
    NOTE: Replacement components must be the correct part number for the application. Components requiring the use of the thread locking compound, lubricants, corrosion inhibitors, or sealants are identified in the service procedure. Some replacement components may come with these coatings already applied. Do not use these coatings on components unless specified. These coatings can affect the final torque, which may affect the operation of the component. Use the correct torque specification when installing components in order to avoid damage.
    NOTE: Refer to Fastener Notice .
  1. Install the engine oil level sensor (1) into the oil pan.

    Tighten:  Tighten the engine oil level sensor to 20 N.m (15 lb ft).

  2. Connect the electrical connector (2) to the engine oil level sensor (1).
  3. Fill the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  4. Install the A/C compressor. Refer to Compressor Replacement .
  5. Inspect for oil leaks after engine start up.
