Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

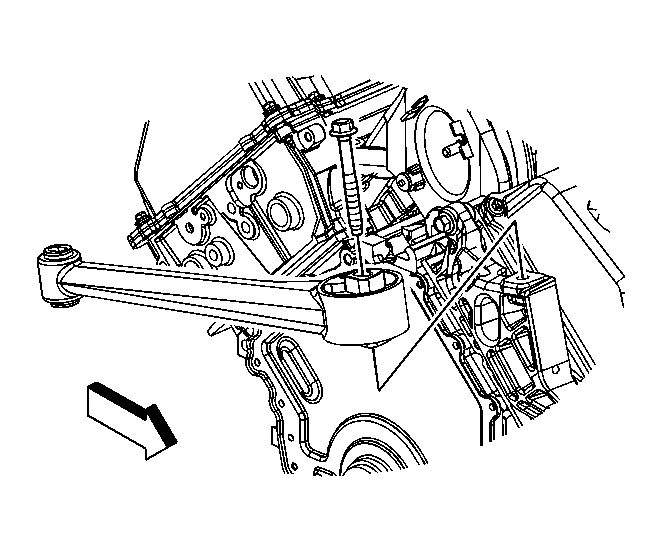

Fig 1: Identifying Engine Mount Strut Bolt

Courtesy of GENERAL MOTORS CORP.

Install the engine mount strut.

NOTE: Refer to Fastener Notice .

Install the engine mount strut bolt.
Tighten: Tighten the bolt to 70 N.m (52 lb ft).
Position the surge tank to the studs.

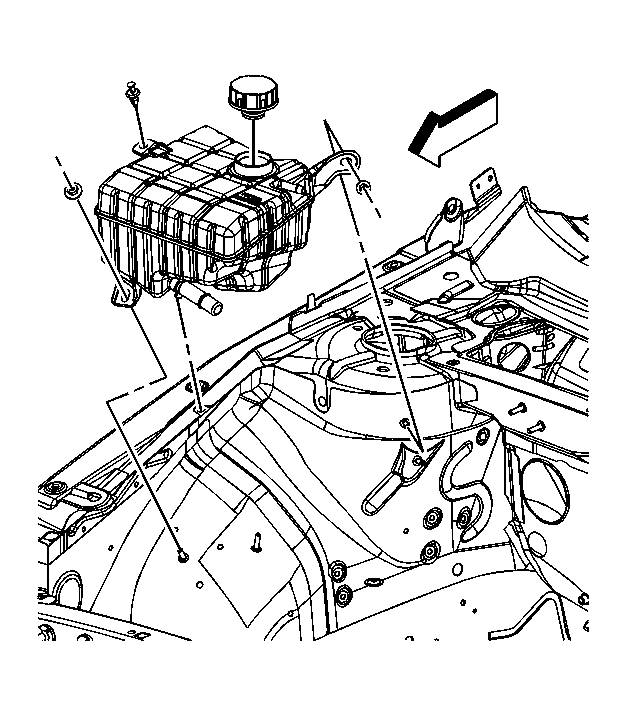

Fig 2: Identifying Surge Tank

Courtesy of GENERAL MOTORS CORP.

Install the surge tank nuts and push pin retainer.
Tighten:
- Tighten the nuts to 6 N.m (53 lb in).
