Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

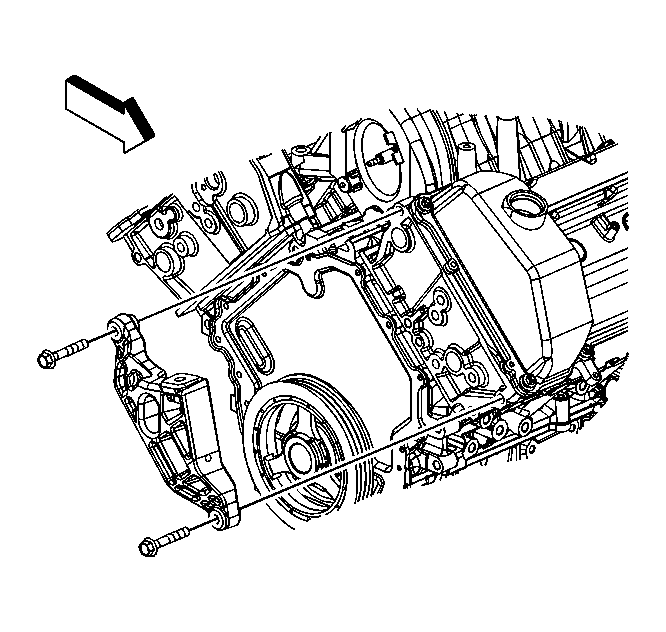

    Fig 1: Engine Mount Strut Bracket To Engine Bolts
    GM1660852Courtesy of GENERAL MOTORS CORP.
  1. Position the engine mount strut bracket to the cylinder head.
    2. NOTE: Refer to Fastener Notice .
  2. Install the engine mount strut bracket to engine bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

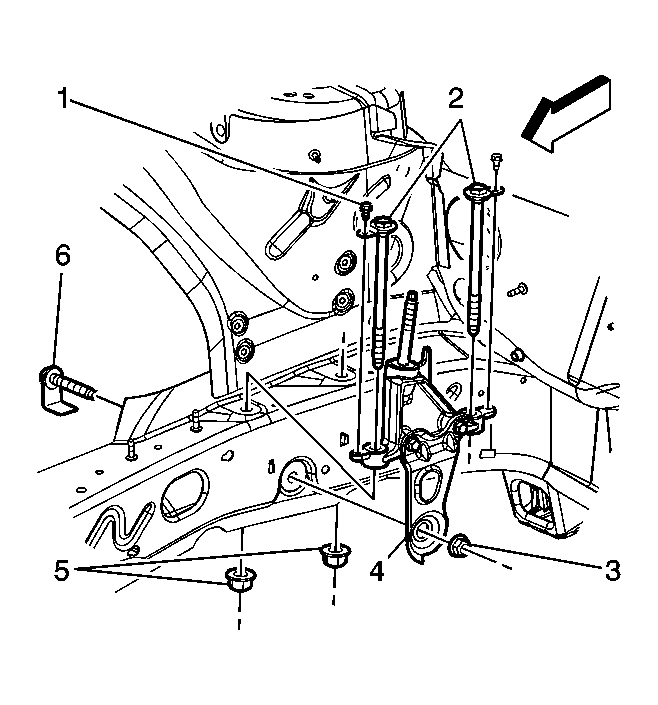

    3. Fig 2: View Of Engine Mount Strut Bracket & Bolts
    GM1660853Courtesy of GENERAL MOTORS CORP.
  3. Position the engine mount strut bracket (4) to the front compartment rail.
  4. Install the strut bracket bolts (2).
  5. Install the strut bracket bolt (6).
  6. Install the strut bracket nut (3).

    Tighten:  Tighten the nut to 70 N.m (52 lb ft).

  7. Install the strut bracket nuts (5).

    Tighten:  Tighten the nuts to 70 N.m (52 lb ft).

  8. Install the strut bracket bolts (1).

    Tighten:  Tighten the bolts to 6 N.m (53 lb in).

  9. Install the right front wheel and tire. Refer to Tire and Wheel Removal and Installation .
  10. Install the engine mount strut. Refer to Engine Mount Strut Replacement - Right Side .
